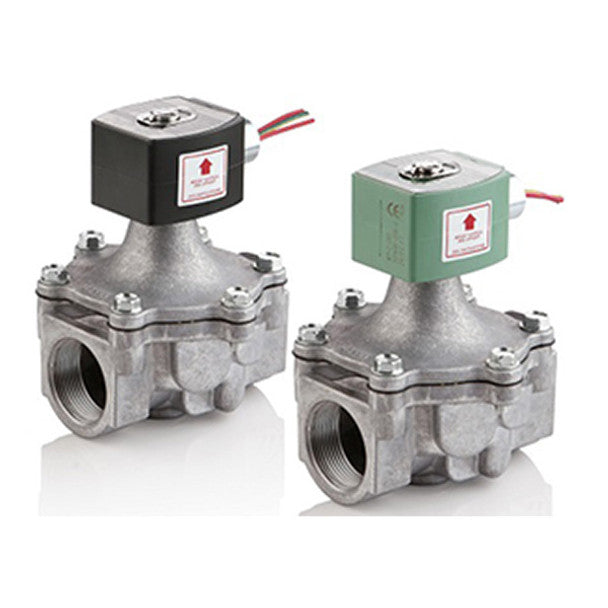

Asco 8215A090CSA 120/60 110/50 Solenoid Valve

Asco 8215A090CSA 120/60 110/50 Solenoid Valve

Description:
Solenoid Valve; Type 2-Way/2-Position, Direct Acting, Pilot Operated; Port Connection 3 Inch Female Threaded x 3 Inch Female Threaded; Valve Position Normally Closed; Body Material Aluminum; Enclosure Type NEMA 1/2/3/3S/4/4X; Input Supply Rating 110 Volt AC 50 Hertz, 120 Volt AC 60 Hertz; Temperature Rating 125 Deg F (Fluid); Pressure Rating 0 to 5 PSI (Air); Media Handled Air-Inert Gas, Fuel Gas; Inclusions/Features NBR Seal/Diaphragm, Poly Amide Disc Holder, 305 Stainless Steel Core Tube, PTFE Rider Ring, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil, Position Indication Switch, General Service; Application Dust Collector System, Heating Equipment; Applicable Standard UL, CSA, CE, FM; Power Rating 28.2 Watt; Orifice Size 3 Inch; Flow Factor 138 Cv; Coil Insulation Type Class F; Ambient Temperature Rating 32 to 125 Deg F

Specifications:
Manufacturer: ASCO Valve
Application: Dust Collector System
Approval: CE, CSA, FM, UL
Body Material: Aluminum
Input Supply Rating: 110 VAC 50 Hz, 120 VAC 60 Hz
Media Handled: Air-Inert Gas, Fuel Gas
Port Connection: 3 in. Female Threaded x 3 in. Female Threaded
Pressure Rating: 0 to 5 psi (Air)
Temperature Rating: 125 F (Fluid)
Type: 2-Way/2-Position, Direct Acting, Pilot Operated
Valve Position: Normally Closed
Enclosure (NEMA Rating): NEMA 1/2/3/3S/4/4X
Product Category: Valves
Product Type: Solenoid Valves
