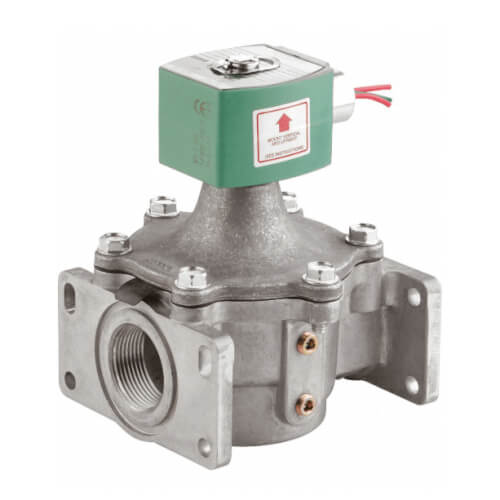

ASCO 8214G251 Solenoid Valve 120/60VAC 1 Inch NPT 2-Way NC Watertight Min PSI=0 Max PSI=5 1132300 BTU

Product Description

The ASCO Solenoid Valve model 8214G251 is a reliably constructed valve designed for the control of fuel gas in commercial and industrial applications. This model is watertight, ensuring optimal performance in diverse environments.

• Features a double disc design with overtravel for redundant sealing, resulting in leak-tight shutoff.
• Equipped with 1/8 inch NPT pipe taps with plugs, facilitating routine testing.
• Supports optional flange adapters to simplify installation and service.

Product Highlights

This 2-way normally closed solenoid valve, rated at 1132300 BTU and operable between 0 and 5 PSI, is designed with an aluminum body and a NEMA 4X enclosure rating, enhancing its durability and utility in tough conditions.

Product Information

Standard Information

• Brand: ASCO
• MPN: 8214G251

Technical Specifications

• Body Pattern: 2-Way
• Flow Capacity (Cv): 32
• Max Temperature (F): 125 degrees Fahrenheit
• Size: 1 inch NPT
• Position: Normally Closed
• Capacity (BTU): 1132300
