ASCO 8214G064120/60 1.25in 120v NO Vent Valve Nema 4 5#

Product Description

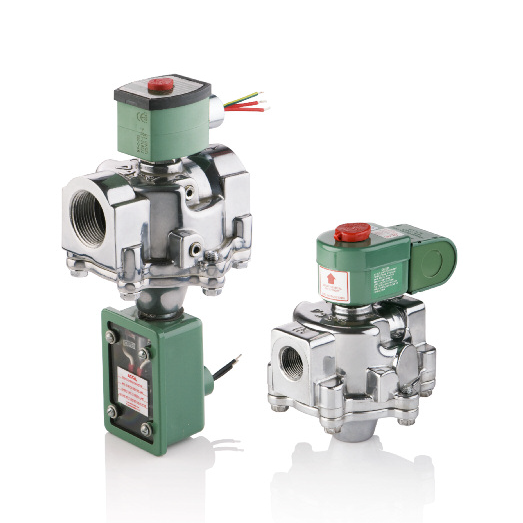

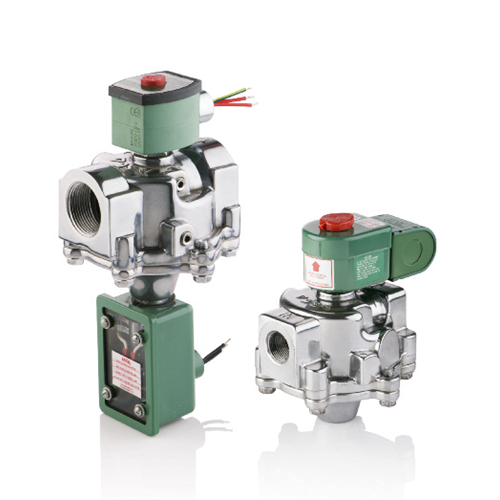

The ASCO 8214G064120/60 is a 1.25-inch normally open vent valve that operates at 120 volts. It features a Nema 4 housing suitable for various environments. This valve is designed for use in gas applications, providing reliable performance in demanding conditions.

• Pipe Size: 1-1/4 inches
• Maximum Gas Capacity: 1,538,750 BTU per hour
• Operating Temperature Range: -40 to 125 degrees Fahrenheit

Product Highlights

This vent valve is ideal for controlling gas flow in HVAC systems and industrial applications, ensuring safety and efficiency.

Product Information

Standard Information

• Type: 2 Way
• Mode: Normally Open

Technical Specifications

• Cv: 32
• Max Gas Pressure: 5 PSI
• Coil Voltage: 120/60
• Watt Rating: 20.1
• Body Material: Aluminum
• Seat Material: NBR
• Mounting Direction: Vertical and Upright
• Inrush Current: 240 VA
• Holding Current: 43 VA
