ASCO 8210P09324-120 3/8in 0-150# AW 24-120vac/dc 3 Cv

Product Description

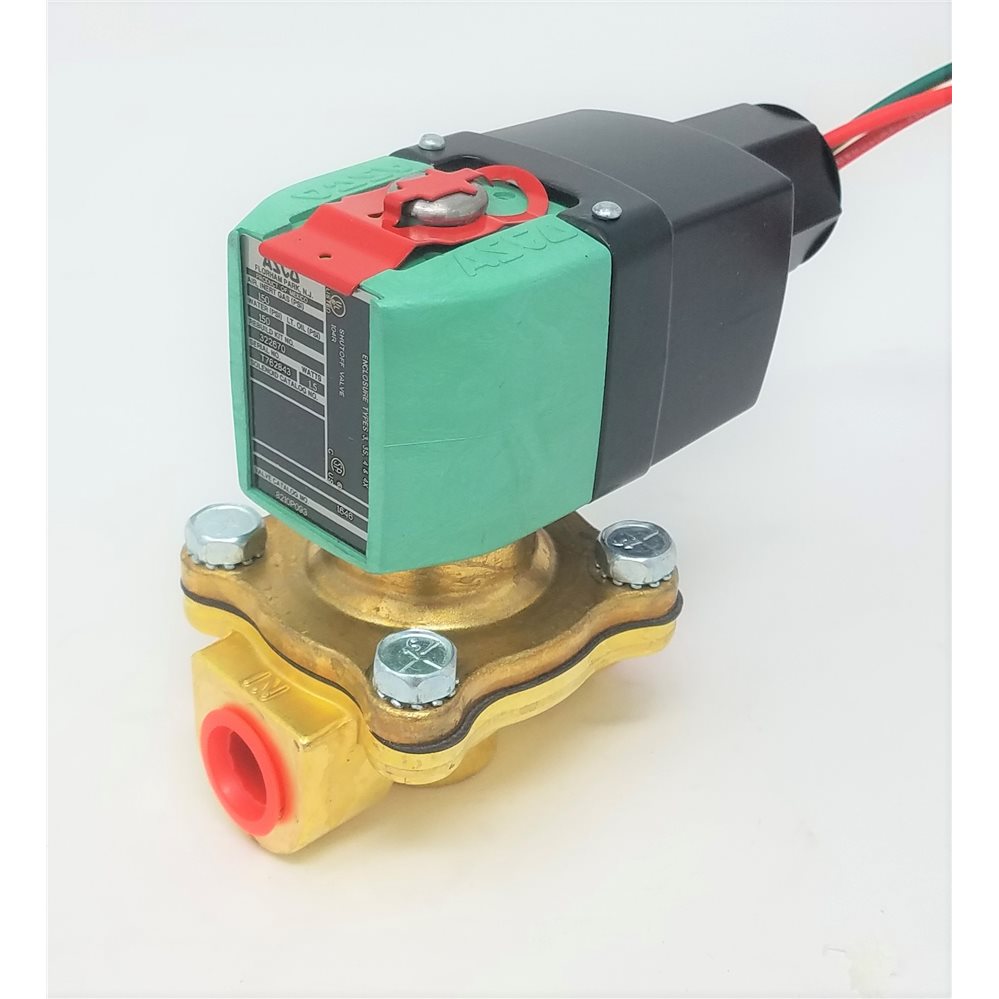

The ASCO 8210P09324-120 is a solenoid valve designed for precise control of fluid flow. This model operates with a voltage of 24 to 120 volts AC or DC. It has a body size of three eighths of an inch and a flow coefficient (Cv) of three. It is suitable for air and water applications, with a maximum pressure rating of up to one hundred fifty psi.

• Coil Class: Class H
• Normally closed operation
• Brass body and NBR seat materials

Product Highlights

This solenoid valve is ideal for HVAC systems, industrial equipment, and other automated control applications.

Product Information

Standard Information

• Brand: ASCO
• Series: 8210

Technical Specifications

• Pipe Size: 3/8 inches
• Coil Voltage: 24-120 AC-DC
• Watt Rating: 2.0 watts
• Orifice Size: 5/8 inches
• Body Material: Brass
• Seat Material: NBR
• Max Fluid Temperature: 180 degrees Fahrenheit
• Min Fluid Temperature: 32 degrees Fahrenheit
