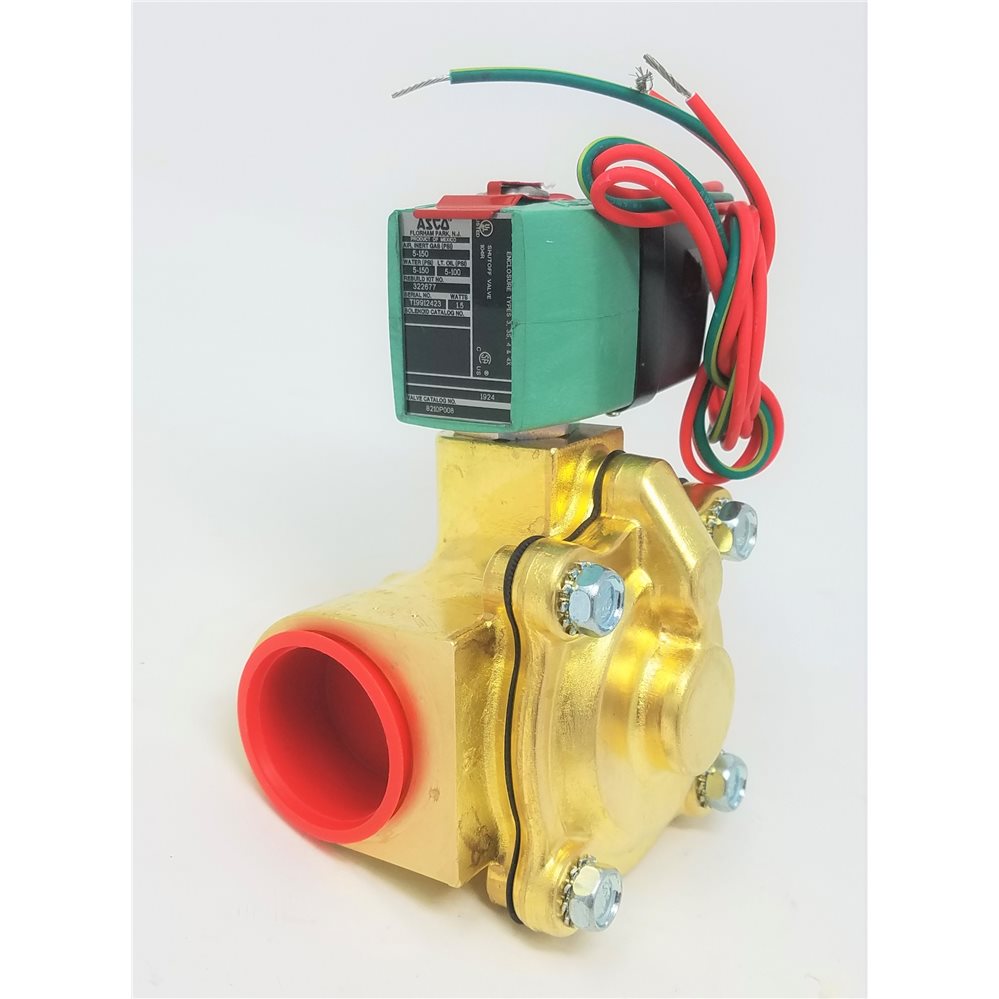

ASCO 8210P00824-120 1.25in 5-150# AWO 24-120vac/dc 15 Cv

Product Description

The ASCO 8210P00824-120 is a solenoid valve designed for various applications. This model features a 1.25-inch pipe size and operates on 24-120 volts AC or DC. It has a flow coefficient (Cv) of 15, making it suitable for fluids under pressure. The valve is a normally closed, 2-way type, and it ensures reliable performance in different settings.

• Pipe size: 1.25 inches
• Voltage range: 24-120 AC-DC
• Body material: Brass

Product Highlights

This valve is utilized in HVAC systems, industrial applications, and water management. Its robust construction includes a Nema 4X housing and a shading ring made of copper, ensuring durability. The valve is versatile and can be mounted in any direction, aiding in system flexibility.

Product Information

Standard Information

• Manufacturer: ASCO
• MPN: 8210P00824-120

Technical Specifications

• Series: 8210
• Max Air Pressure: 150 PSI
• Max Water Pressure: 150 PSI
• Max Light Oil Pressure: 100 PSI
• Min Fluid Temperature: 32 degrees Fahrenheit
• Max Fluid Temperature: 180 degrees Fahrenheit
• Item Weight: 6.25 lbs
• Coil Class: Class H
• Lead Length: 18 inches
• Orifice Size: 1-1/8 inches
• Seat Material: NBR
