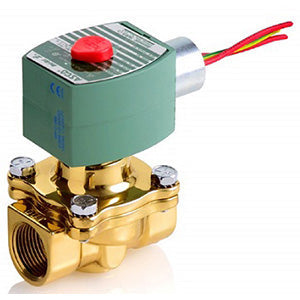

Asco 8210P008 100-240 General Service NC Electronically Enhanced Solenoid Valves

Asco 8210P008 100-240 General Service NC Electronically Enhanced Solenoid Valves

Description:
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features:
Two-way (2/2) Next Generation solenoid valves have one inlet port and one outlet port
Control of air, water, light oil, and non-corrosive media
Normally closed (opens when energized) and normally open (closed when energized) operation
Pipe sizes 1/8 to 2 inch

Specifications:
Pipe size: 1 1/4 in.
Orifice size: 29mm
CV flow: 13
Min: 0.3
Air-Inert gas:10
water: 10
Light Oil @ 300 SSU: 7
Max. flued Temp: 82
