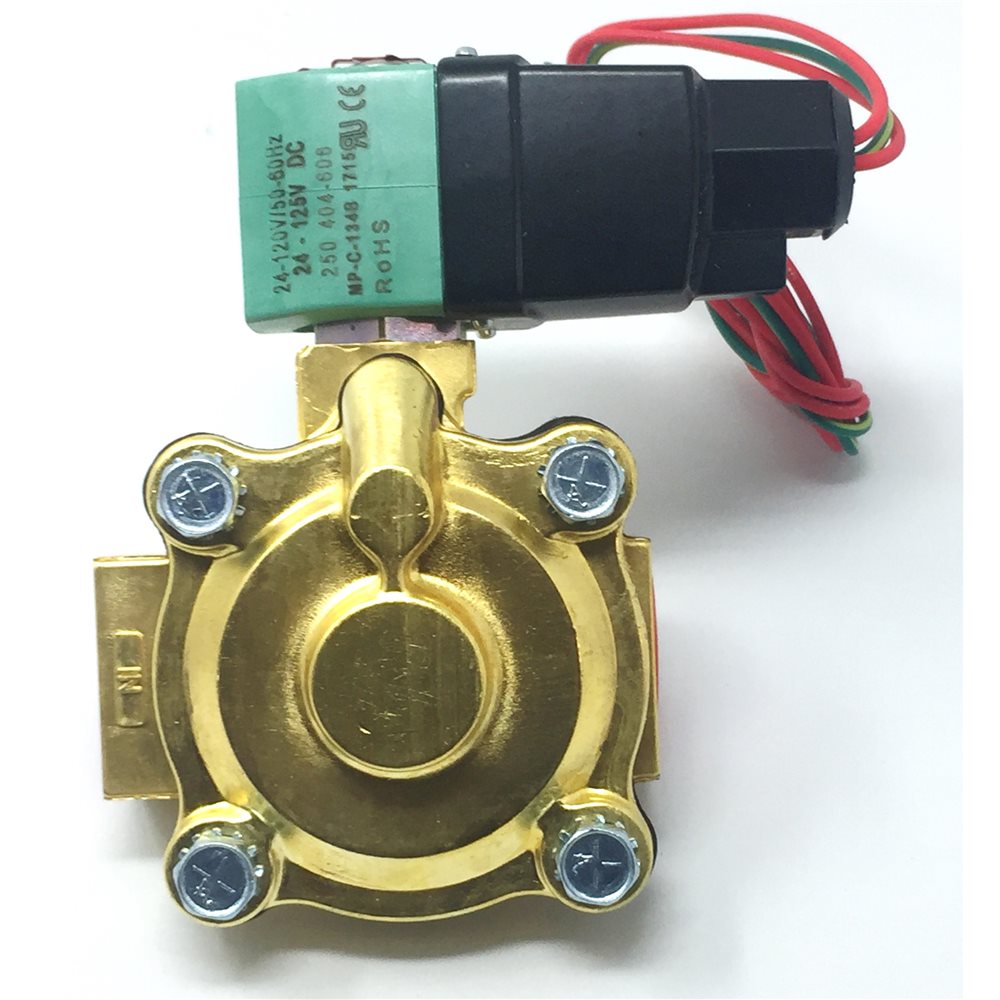

ASCO 8210P00424-120 1in 5-150# AWO 24-120vac/dc 13 Cv

Product Description

The ASCO 8210P00424-120 is a solenoid valve designed to handle precise control for air, water, and light oil applications. This valve is built with reliability in mind, operating on a coil voltage of twenty-four to one hundred twenty VAC or DC. With its capacity to support a pressure range of five to one hundred fifty pounds per square inch, it is suitable for various industrial needs.

• Pipe Size: One inch
• Watt Rating: Two watts
• Max Fluid Temperature: One hundred eighty degrees Fahrenheit

Product Highlights

This product is versatile for multiple applications, features a normally closed type operation, and can be mounted in any direction, making it suitable for diverse setups.

Product Information

Standard Information

• Brand: ASCO
• Product SKU: 8210P004 24-120

Technical Specifications

• Series: 8210
• Type: 2 Way
• Max (Air): 150
• Coil Class: Class H
• Body Material: Brass
• Orifice Size: 1
• Coil Voltage: 24-120 AC-DC
• Item Weight: 5.75 lbs per EA
