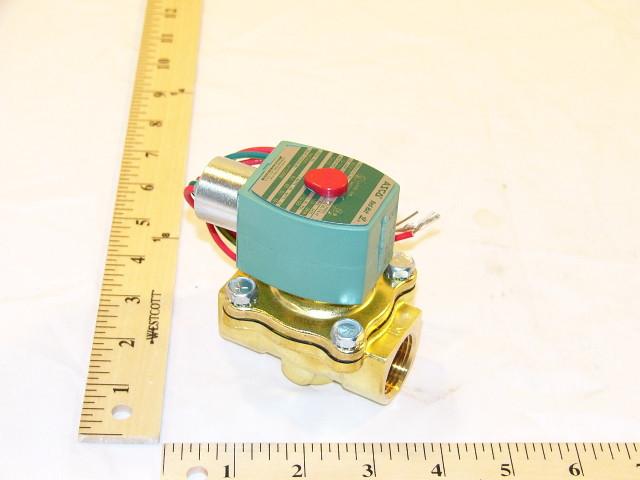

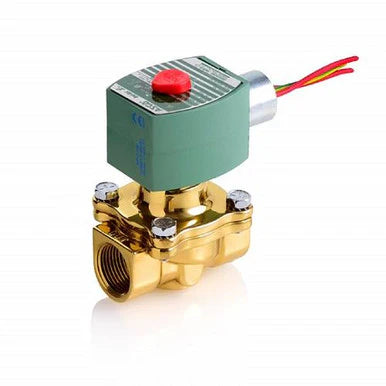

ASCO 8210G9-24V Solenoid Valve 3/4 Inch NC 5-125#AIR,WTR 24V CV5

Product Description

The ASCO 8210G9-24V solenoid valve is designed for efficient control of air and water with a powerful 24V operation. Ideal for industrial applications, this valve features a 3/4 inch normally closed (NC) design.

• Constructed with an aluminum body for durability.
• Operates in a temperature range from 32 to 125 degrees Fahrenheit.
• Equipped with a Class F insulation coil.

Product Highlights

This valve offers reliable performance with a minimal internal leakage and fast response time under less than 100 milliseconds. The stainless steel internal components enhance corrosion resistance and extend the service life.

Product Information

Standard Information

• Pressure Rating: 5 to 125 PSI
• Voltage: 24V

Technical Specifications

• Body Material: Aluminum
• Seal Type: NBR Seal
• Flow Coefficient (Cv): 5 Cv
• Connection Type: NPT 3/4 Inch
