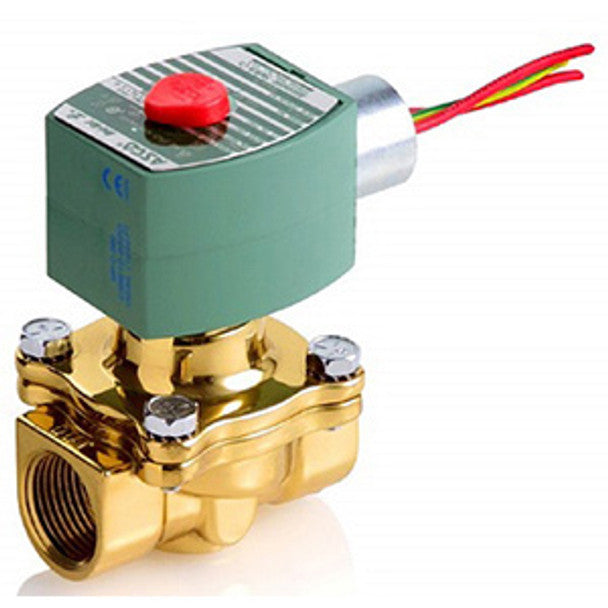

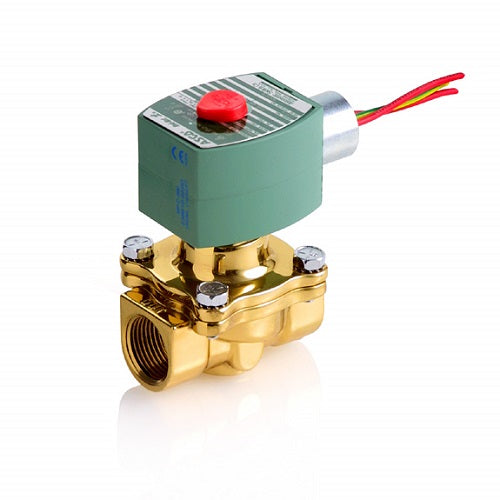

ASCO 8210G227-24VDC General Purpose Solenoid Valve

Product Description

The ASCO 8210G227-24VDC is a solenoid valve designed for general purpose use. It is a 2-way and 2-position valve that operates in a normally closed mode. This valve is useful for controlling the flow of air and water in various applications.

• Controls flow of air and water.
• Includes 1/2-inch female threaded ports.
• Operates using a 24VDC power supply.

Product Highlights

The ASCO solenoid valve is ideal for air compressor applications and is built with a brass body for durability.

Product Information

Standard Information

• Manufacturer: ASCO
• Part Number: 8210G227-24VDC

Technical Specifications

• Application: Air Compressor
• Body Material: Brass
• Input Voltage: 24 VDC
• Media Handled: Water
• Port Connection: 1/2 in. Female Threaded x 1/2 in. Female Threaded
• Pressure Rating: 5 to 300 psi (Water)
• Temperature Rating: 90 °F (Fluid)
• Valve Position: Normally Closed (NC)
• Enclosure (NEMA Rating): NEMA 1/2/3/3S/4/4X
• Valve Type: Pilot-Operated
• Function: 2-Way/2-Position, Diaphragm, Pilot Operated
• Port Configuration: 2-way
• Seal Material: NBR
• Wattage: 40.6 W
• Approval: CE
