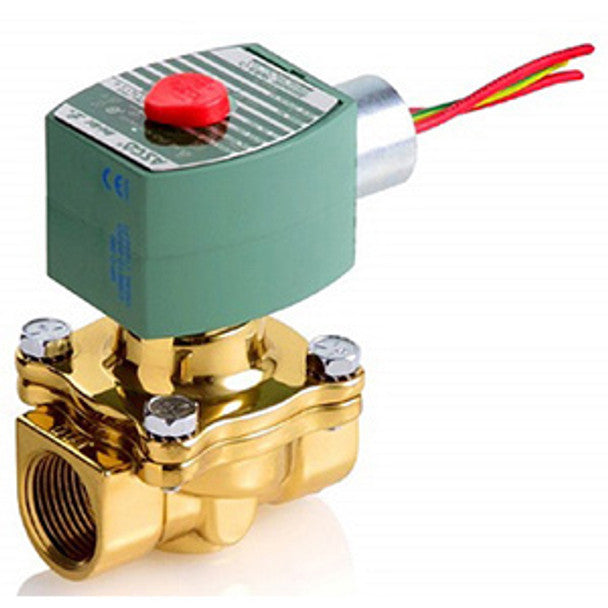

Asco 8210G103 120/60 Lead-Free General Service Solenoid Valves
Description:
Valve available with lead-free brass body and bonnet using suffix LF. The term Lead-Free for brass materials is
defined by SDWA 1417 as having a maximum weighted average lead content of 0.25% on the wetted surface area.
Valves are compliant to NSF/ANSI 372 low lead requirements.
Features:
Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage
High flow valves for liquid, corrosive, and air/inert gas service
Lead-free versions available for Safe Drinking Water Act Section 1417 compliance
Industrial applications include:
- Car wash
- Laundry equipment
- Air compressors
- Industrial water control
- Pump
Specifications:
Pipe size: 2in.
Orifice size: 1 1/4in.
Flow factor (cv): 43
Max. Min: 5
Max. AC Air-Inert gas: 150
Max. AC Water: 125
Max. AC Light Oil @ 300 SSU: 125
Max. DC Air-Inert gas: 150
Max. DC Water: 150
Max. DC Light Oil @ 300 SSU: 125
Max. Flued Temp AC: 180
Max. Flued Temp DC: 180
