ASCO 8210G101-24VDC General Purpose Solenoid Valve

Product Description

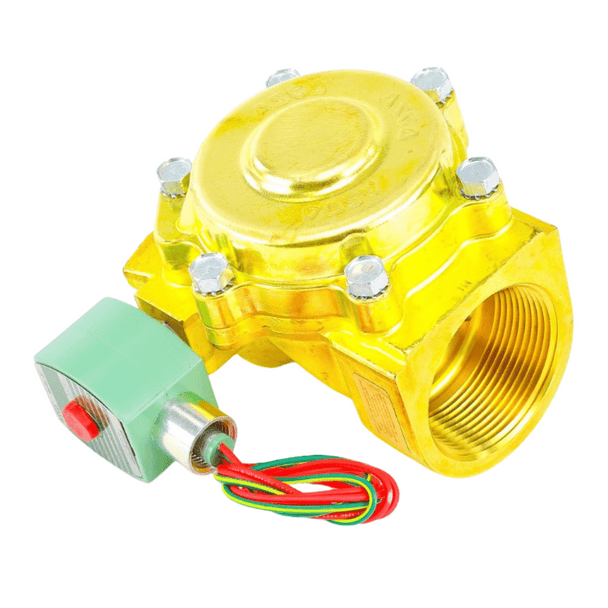

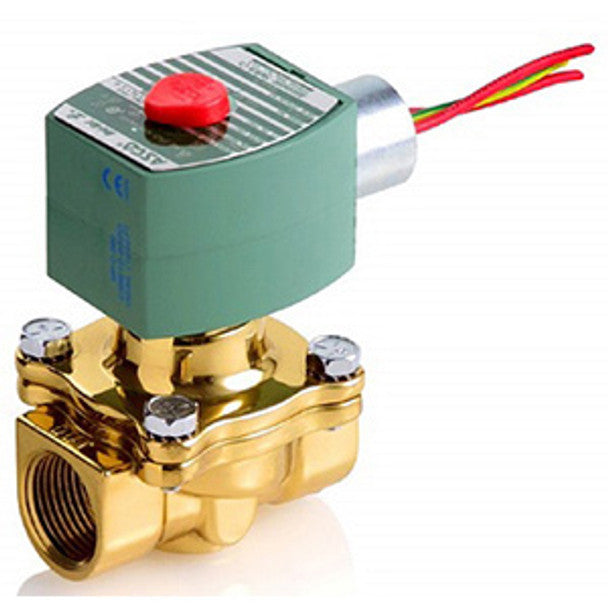

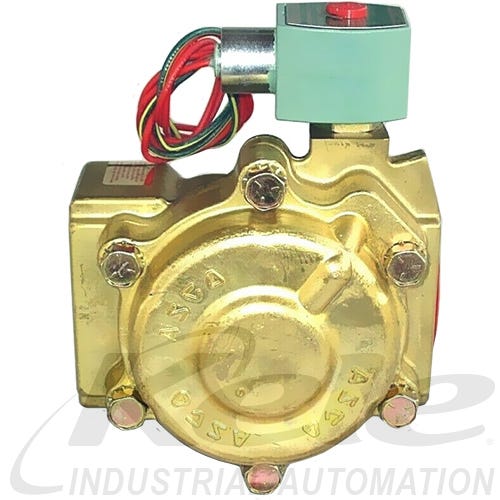

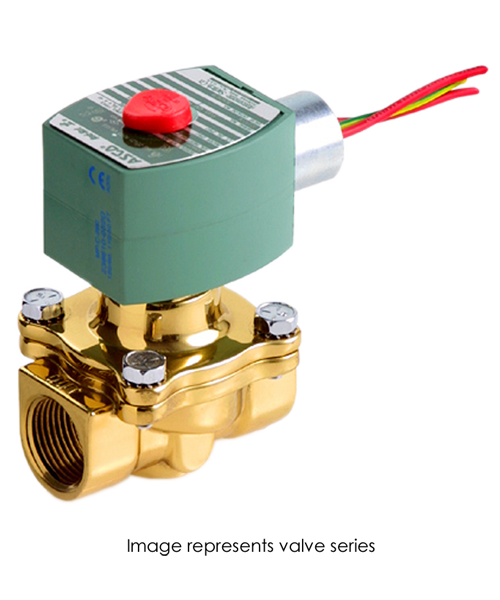

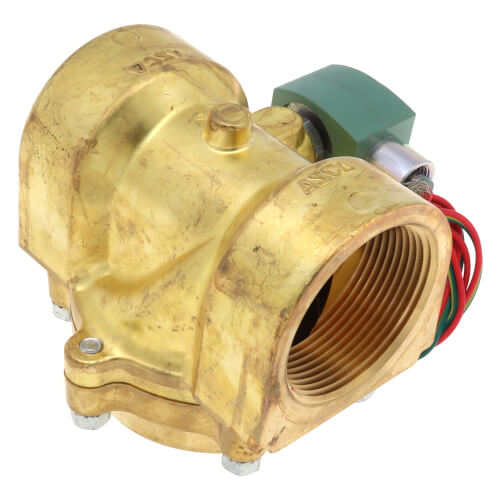

The ASCO 8210G101-24VDC is a 2-way normally closed solenoid valve. It is designed for air, inert gas, water, and light oil service. The valve is constructed with a brass body and features NBR seals. It has a two-and-a-half inch threaded connection and operates on 24VDC.

• 2-way normally closed operation
• Brass body with NBR seals
• NEMA 4X rated enclosure for watertight protection

Product Highlights

This solenoid valve is ideal for general purpose applications. Its pilot-operated design ensures high flow capabilities, making it suitable for various media.

Product Information

Standard Information

• Brand: ASCO
• MPN: 8210G101-24VDC

Technical Specifications

• Valve Type: Pilot-Operated
• Body Material: Brass
• Seal Material: NBR
• Enclosure Rating: NEMA 1/2/3/3S/4/4X
• Input Voltage: 24 VDC
• Port Connection: 2-1/2 in. Female Threaded x 2-1/2 in. Female Threaded
• Pipe Size: 2-1/2
• Orifice Size: 1-3/4
• Flow Capacity (Cv): 45
• Pressure Rating: 5 to 50 psi (Air/Inert Gas/Water/Light Oil)
• Fluid Temperature Range: 32 F - 180 F
• Ambient Temperature Range: 32 F - 125 F
• Wattage: 11.6 W
• Function: 2-Way/2-Position, Piston, Pilot Operated
• Valve Position: Normally Closed (NC)
• Media Handled: Air/Inert Gas/Water/Light Oil
• Port Configuration: 2-way
