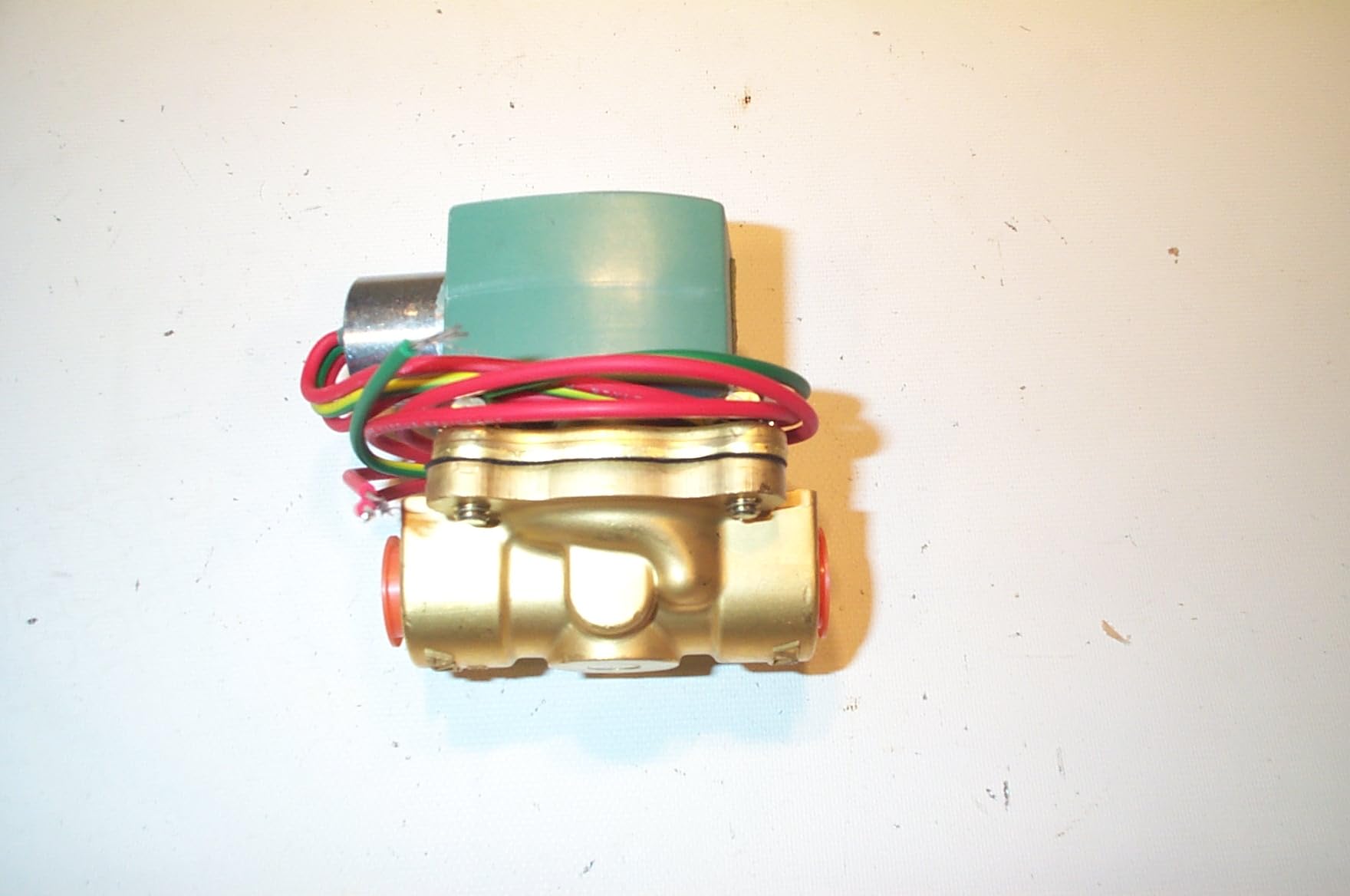

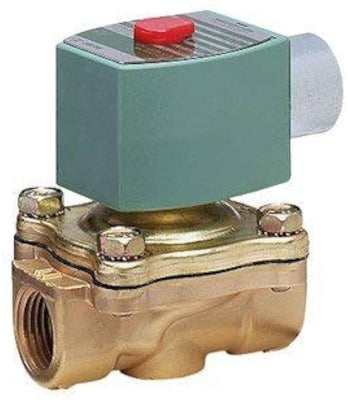

ASCO 8210G1-24VDC Solenoid Valve 3/8 Inch NC General Purpose 24VDC

Product Description

The ASCO 8210G1-24VDC Solenoid Valve is optimized for industrial purposes, providing reliable performance in controlling the flow of liquids and gases. This general-purpose, normally closed solenoid valve features a 3/8 inch NPT inlet and outlet, offering excellent flow characteristics in compact spaces.

• Designed for durability with a stainless steel body and brass seat.
• Efficient operation with a low voltage requirement of 24VDC.
• Suitable for a wide range of applications, from automation to process control.

Product Highlights

This valve can operate in environments with up to 150 degrees Fahrenheit and pressures up to 100 psi. Thanks to its energy-efficient design, it ensures minimal power consumption while maintaining robust performance.

Product Information

Technical Specifications

• Brand: ASCO
• MPN: 8210G1-24VDC
• Inlet/Outlet Size: 3/8 inch NPT
• Max. Inlet Pressure: 100 psi
• Ambient Temp. Range: Up to 150 degrees Fahrenheit
• Body Material: Stainless Steel
• Seat Material: Brass
• Power Rating: 24V DC
