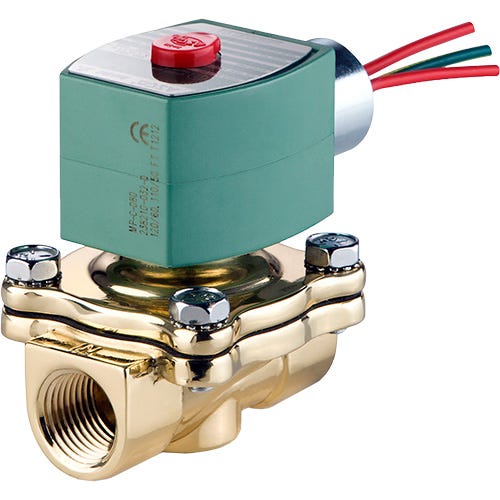

Asco 8210G095 Ac 24/60 D 2-way Solenoid Valve 3/4 Inch 24V

Product Description

The ASCO 8210G095 AC 24/60 D is a 2-way, normally closed solenoid valve designed for general service applications in HVAC, plumbing, and industrial fluid control systems. It operates on 24 VAC at 60 Hz and handles pressures from 0 to 150 psi across compatible media. The valve body is brass with a Buna N seal, suited for use with air, inert gas, and water. With a Cv of 5 and a 3/4-inch pipe size, it delivers reliable flow control. Licensed plumbers, HVAC technicians, and mechanical contractors are the primary installers of this type of valve in both commercial and residential piping systems.

This valve is rated for media temperatures up to 180 degrees F, making it appropriate for hot water and steam-adjacent applications within its pressure and temperature limits. The NPT connection simplifies integration into standard threaded pipe assemblies. Its NEMA 4X enclosure rating makes it suitable for wet or corrosive environments, including outdoor mechanical rooms, equipment pads, and wash-down areas. General service designation means it covers a broad range of non-aggressive fluid and gas control tasks across mechanical systems.

Key Features

• Normally closed operation — valve closes automatically when de-energized, providing fail-safe shutoff
• 24 VAC / 60 Hz coil for direct connection to standard low-voltage control circuits
• Brass body construction compatible with water, air, and inert gas service
• Buna N seal material rated for broad fluid compatibility in general service
• 0 to 150 psi pressure range covers most residential and light commercial piping systems
• NEMA 4X enclosure rating suitable for wet, outdoor, and corrosive environments

Compatibility

Designed as an OEM-style replacement or new-installation solenoid valve for 3/4-inch NPT threaded piping systems handling air, inert gas, or water at pressures up to 150 psi and temperatures up to 180 degrees F.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC or mechanical technician in accordance with applicable local codes and the International Plumbing Code. Shut off the fluid or gas supply and de-energize the control circuit before beginning any work. Ensure NPT threads are properly sealed with an appropriate thread sealant or PTFE tape before making up connections. Verify coil voltage matches the control circuit before energizing.

Technical Specifications

• Valve Type: 2-Way Normally Closed
• Supply Voltage: 24/60 VAC
• Pipe Size: 3/4 inches
• Connection Type: NPT
• Pressure Range: 0 to 150 psi
• Max Media Temperature: 180 degrees F
• Flow Coefficient (Cv): 5
• Body Material: Brass
• Seal Material: Buna N
• Media Compatibility: Air, Inert Gas, Water
• Enclosure Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X
• Power Supply: AC Line Power

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8210G095 AC 24/60 D
