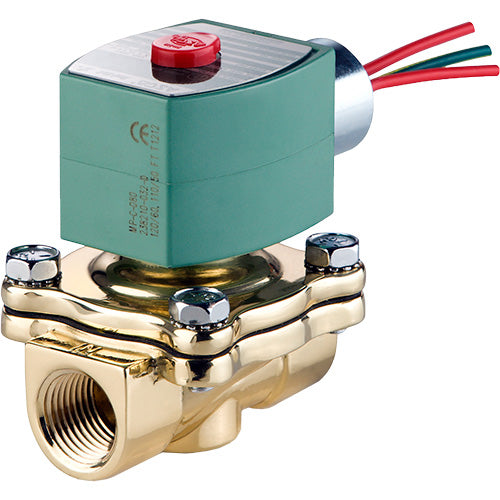

Asco 8210G094LF 2-way N/c Solenoid Valve 1/2 in Npt 120V

Product Description

The ASCO 8210G094LF AC 120/60,110/50 D is a two-way, normally closed solenoid valve designed for general service and potable water applications. Built with a lead-free brass body and Buna N seals, this valve meets the material requirements for drinking water systems. It operates on AC line power at 120/60 VAC or 110/50 VAC and handles pressures from 0 to 150 psi with a maximum media temperature of 180 degrees F. The 1/2-inch NPT connection and a flow coefficient (Cv) of 4 make it a dependable choice for residential and light commercial plumbing and HVAC fluid-control systems. Licensed plumbers and HVAC technicians are the primary installers.

This valve is suited for potable water service in residential and commercial installations where a normally closed, electrically actuated shutoff is required. Typical applications include water supply lines, irrigation controls, water treatment equipment, and HVAC hydronic systems that require automated flow control. The NEMA 1, 2, 3, 3S, 4, and 4X enclosure ratings allow installation in a wide range of environments, from indoor utility rooms to outdoor or wet locations requiring a watertight enclosure.

Key Features

• Lead-free brass body meets potable water material requirements
• Normally closed operation — valve closes automatically when de-energized
• Dual-voltage coil accepts 120/60 VAC or 110/50 VAC power supply
• Rated for 0 to 150 psi operating pressure range
• Maximum media temperature of 180 degrees F
• NEMA 1, 2, 3, 3S, 4, and 4X enclosure ratings for versatile installation environments
• Buna N seals for compatibility with potable water media

Compatibility

Designed for general service and potable water applications using 1/2-inch NPT pipe connections with AC line power at 120/60 VAC or 110/50 VAC.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off the water supply and de-energize the circuit before beginning work. Verify that pipe thread connections are properly sealed with an approved thread sealant rated for potable water service. Confirm supply voltage matches the coil rating before energizing the valve.

Technical Specifications

• Valve Type: Two-Way Normally Closed
• Pipe Size: 1/2 inch
• Connection Type: NPT
• Supply Voltage: 120/60 VAC, 110/50 VAC
• Power Supply: AC Line Power
• Pressure Range: 0 to 150 psi
• Max Media Temperature: 180 degrees F
• Flow Coefficient (Cv): 4
• Body Material: Lead-Free Brass
• Seal Material: Buna N
• Media Compatibility: Potable Water
• Enclosure Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X
• Function: General Service, Potable Water

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8210G094LF AC 120/60,110/50 D
