Product Description

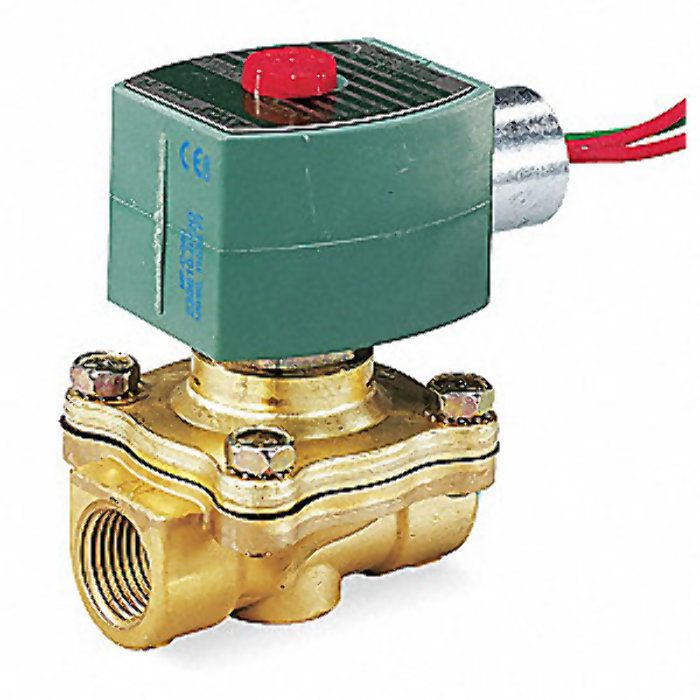

The Asco 8210G094 is a two-way, normally closed solenoid valve that provides reliable control of air, water, light oil, and other non-corrosive fluids. It features a brass body and is designed for use with 1/2 inch NPT connections.
- Pressure ratings of 150 psi AC and 40 psi DC.
- Durable brass construction ensures a long service life.
- Pilot-operated actuator for reliable operation.
Product Highlights
This solenoid valve is suitable for a wide range of applications, offering high flow rates and minimal internal leakage. The installation process is straightforward, and it serves effectively in both commercial and industrial environments.
Specifications
Standard Information
-
Brand: Asco
-
MPN: 8210G094
-
Valve Type: 2-Way 2-Position NC
Technical Specifications
-
Body Material: Brass
-
Pressure Rating: 150 psi AC, 40 psi DC
-
Nominal Size: 1/2 inch
-
Orifice Size: 5/8 inch
-
Actuator Type: Pilot Operated
-
End Style: NPT
-
Media: Air/Water/Light Oil/Non-Corrosive Fluid/Inert Gas
-
Dimensions: 2.28 inches W x 3.84 inches H
