ASCO 8210G088120/60110/50 3/4in 120V SS Air/Water/Oil 0 Lb Min 150

Product Description

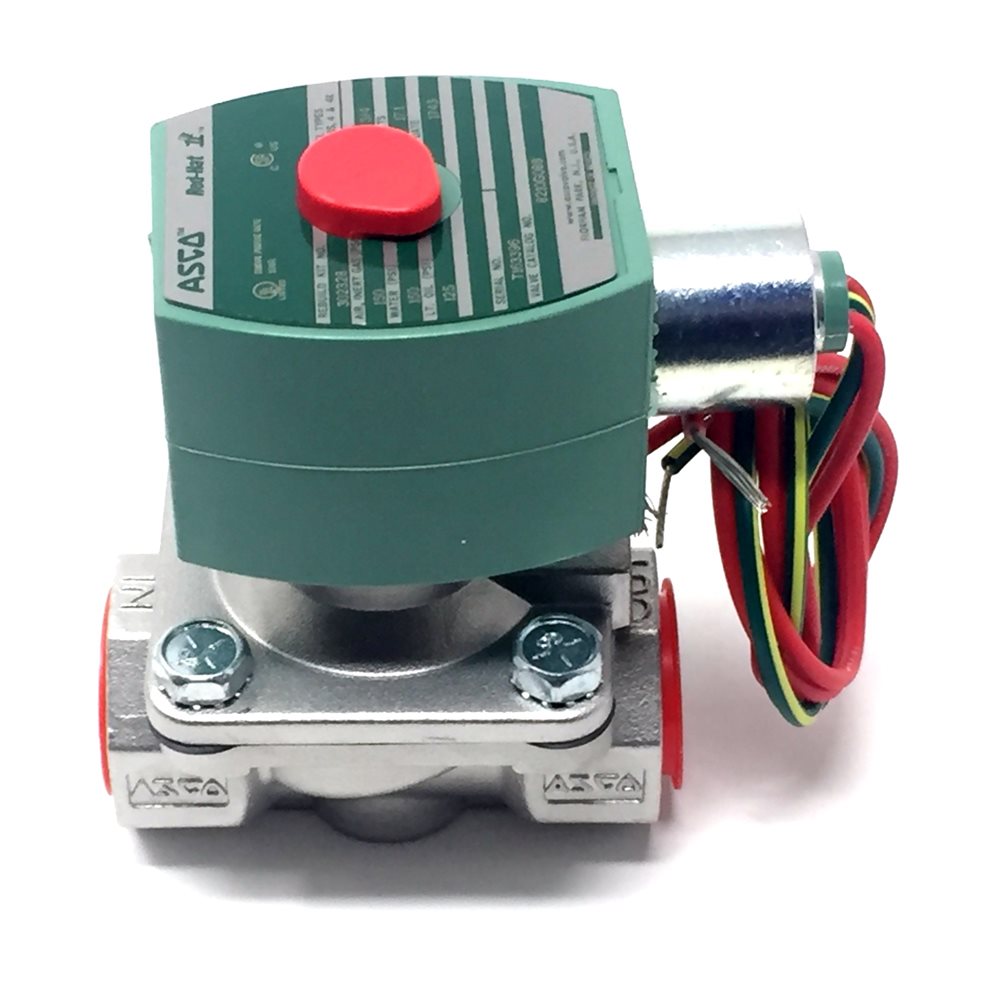

The ASCO 8210G088120/60110/50 is a reliable solenoid valve designed for controlling air, water, and oil. This two-way normally closed valve features a durable stainless steel body that provides longevity and resistance to corrosion. Ideal for various applications, it operates effectively under different pressure ranges.

• Coil voltage of 120/60 and 110/50, ensuring versatile installation.
• Maximum fluid temperature of one hundred eighty degrees Fahrenheit for optimal performance.
• Inrush current rated at ninety-three VA, providing robust electrical efficiency.

Product Highlights

The valve is suitable for multiple fluid types and is designed for use in various industrial settings. It can handle fluids with a maximum ambient temperature of one hundred twenty-five degrees Fahrenheit and a minimum of thirty-two degrees Fahrenheit.

Product Information

Standard Information

• Brand: ASCO
• Part Number: 8210G088120/60110/50

Technical Specifications

• CV: 4.5
• Mode: Normally Closed
• Pipe Size: 3/4 inches
• Coil Class: Class F
• Max Fluid Temperature: 180°F
• Min Fluid Temperature: 32°F
• Body Material: Stainless Steel
• Seat Material: NBR
• Max Air Pressure: 150 psi
• Max Water Pressure: 150 psi
• Orifice Size: 5/8 inches
• Lead Length: 18 inches
• Holding Current: 40 VA
• Shading Ring: Silver
