ASCO 8210G05624/60 1.5in 24VAC Air/Wat/Oil 0# Min/125# Max

Product Description

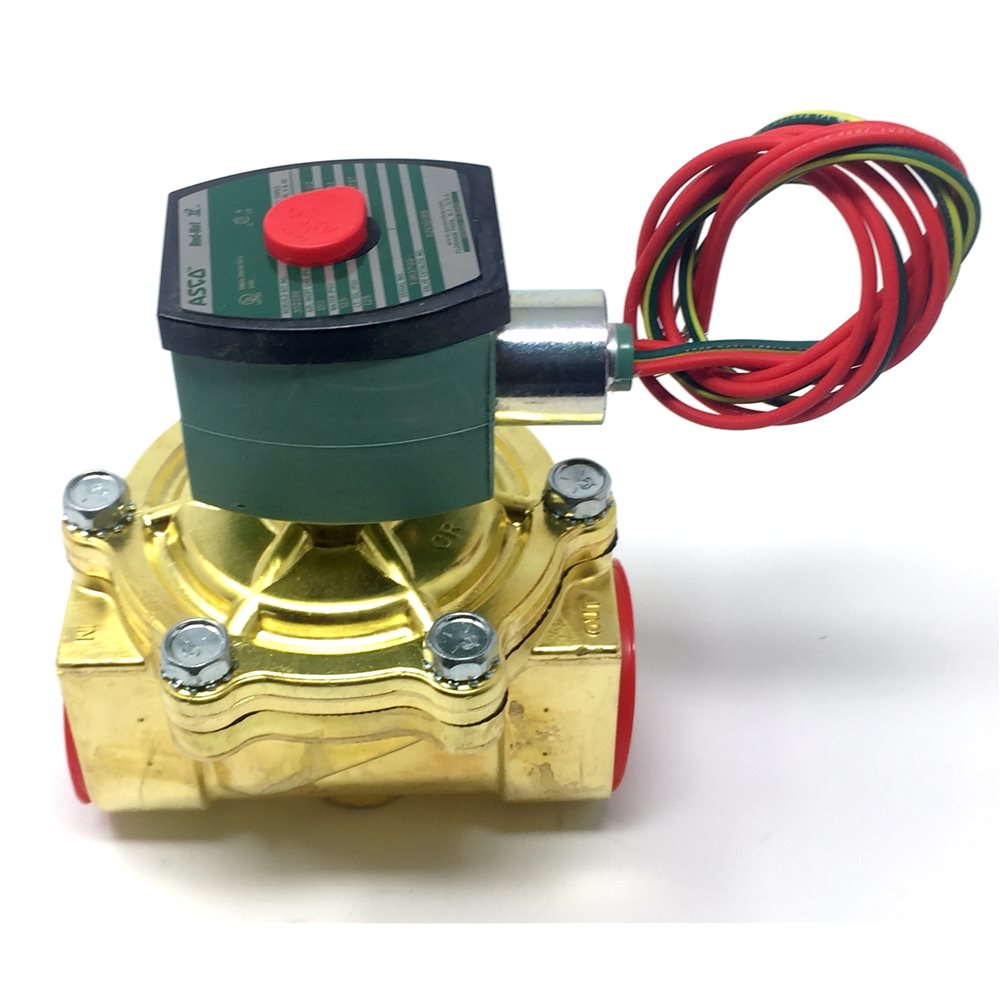

The ASCO 8210G05624/60 is a solenoid valve designed for use with air, water, and oil systems. This model operates on a twenty-four volt alternating current and accommodates different fluid conditions. It is ideal for various applications where precision and reliability are necessary.

• Pipe size of one and one-half inches
• Normally closed mode for secure operation
• Constructed from durable brass

Product Highlights

This solenoid valve is efficient for controlling fluid flow in HVAC and plumbing systems, featuring a compact design appropriate for limited spaces.

Product Information

Standard Information

• Brand: ASCO
• MPN: 8210G05624/60

Technical Specifications

• Series: 8210
• Type: 2 Way
• Mode: Normally Closed
• Coil Voltage: 24/60
• Pipe Size: 1-1/2 inches
• Inrush Current (VA): 180
• Holding Current (VA): 35
• Item Weight: 7.00 lbs
• Max Fluid Temperature: 180 degrees Fahrenheit
• Min Differential (PSI): 0
• Max (Air): 150 PSI
• Max (Water): 125 PSI
• Housing Type: Nema 4X
• Lead Length: 18 inches
• Orifice Size: 1-1/4 inches
• Seat Material: NBR
• Body Material: Brass
• Shading Ring: Copper
• Mounting Direction: Vertical and Upright
• Rebuild Kit Number: 302286
