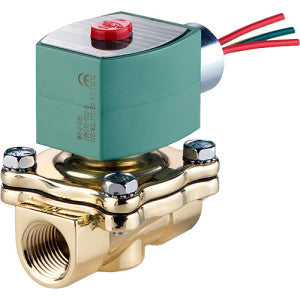

Asco 8210G054 AC 24/60 general service solenoid valve

Product Description

The ASCO 8210G054 AC 24/60 is a 2-way normally closed solenoid valve with a brass body and Buna N elastomer seals. It is designed for general service applications. It has a 1" pipe size, 1" orifice, and Cv=13.

• Wide range of pressure ratings, sizes, and resilient materials for long service life and low internal leakage
• High flow capacity valves for liquid, corrosives, and air/inert gas service
• General service models for industrial air compressors, laundry, power washing, industrial water control, pumps

Product Highlights

This solenoid valve is suitable for air, inert gas, light oil, and water applications with a maximum media temperature of 180°F.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8210G054 AC 24/60 D

Technical Specifications

• Max Media Temperature: 180 °F
• Media Compatibility: Air-Inert Gas,Light Oil,Water
• Power Supply: AC Line Power
• Type: Two Way
• Connection: NPT
• Valve Operation: Normally Closed
• Orifice Size: 1 in
• Solenoid Coil: 272610-005-D
• Solenoid Kit: 302283
• Enclosure Rating: NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
• Body Material: Brass
• Approvals: CE,CSA,UL
• Cv: 13
• Pipe Size: 1 in
• Wetted Materials: Brass, Buna N
• Pressure Range: Air/Inert Gas: 0 - 150 PSI,Water, Oil: 0 - 125 PSI
• Supply Voltage (Nominal): 24/60 VAC
• Function: General Service
• Seal Material: Buna N
• Is FM: No
• Brand: ASCO
• MPN: 8210G05424/60
• UPC: Does Not Apply
