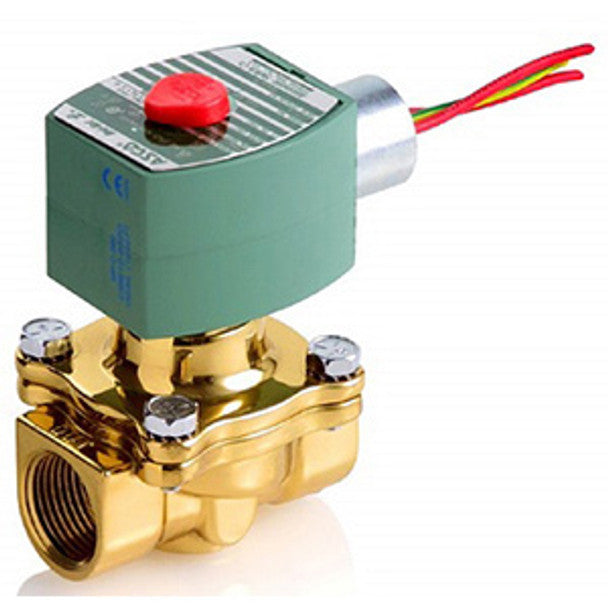

Asco 8210G054 24/60 General Purpose Solenoid Valve

Asco 8210G054 24/60 General Purpose Solenoid Valve

Description:
General Purpose Solenoid Valve; Type 2-Way/2-Position, Diaphragm, Pilot Operated; Port Connection 1 Inch Female Threaded x 1 Inch Female Threaded; Valve Position Normally Closed; Body Material Brass; Enclosure Type NEMA 1/2/3/3S/4/4X; Input Supply Rating 24 Volt AC 60 Hertz; Temperature Rating 180 Deg F (Fluid); Pressure Rating 0 to 150 PSI (Air-Inert Gas), 0 to 125 PSI (Water/Light Oil); Media Handled Air-Inert Gas, Water, Light Oil; Inclusions/Features NBR Seal, Poly Amide Disc Holder, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil, General Purpose; Application Car Wash, Laundry Equipment, Air Compressor, Industrial Water Control, Pump; Applicable Standard UL, CE; Lead-Free; Power Rating 16.1 Watt; Coil Insulation Type Class F; Orifice Size 1 Inch; Ambient Temperature Rating 32 to 125 Deg F; Flow Factor 13 Cv

Specifications:
Manufacturer: ASCO Valve
Application: Air Compressor
Approval: CE, UL
Body Material: Brass
Input Supply Rating: 24 VAC 60 Hz
Media Handled: Air-Inert Gas, Light Oil, Water
Port Connection: 1 in. Female Threaded x 1 in. Female Threaded
Pressure Rating: 0 to 150 psi (Air-Inert Gas), 0 to 125 psi (Water/Light Oil)
Temperature Rating: 180 F (Fluid)
Type: 2-Way/2-Position, Diaphragm, Pilot Operated
Valve Position: Normally Closed
Enclosure (NEMA Rating): NEMA 1/2/3/3S/4/4X
Product Category: Valves
Product Type: Solenoid Valves
