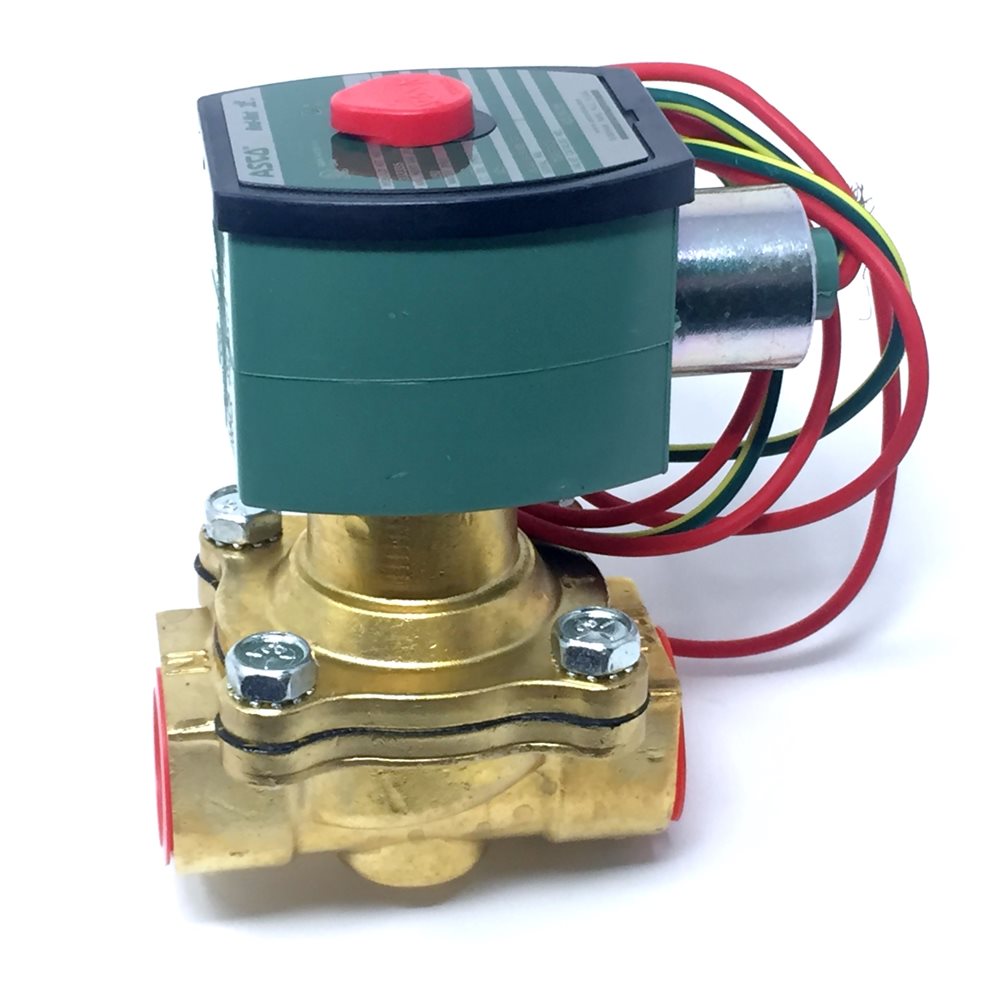

ASCO 8210G03524/DC 3/4in NO 24VDC Air/Water/Oil 0# Min 125#

Product Description

The ASCO 8210G03524/DC is a three-quarter inch (3/4in) Normally Open solenoid valve designed for use with air, water, and oil. It operates at twenty-four volts DC and has a minimum pressure of zero and a maximum pressure of one hundred twenty-five psi.

• Body material: Brass
• Coil voltage: 24/DC
• Max fluid temperature: 150 degrees Fahrenheit

Product Highlights

This solenoid valve is suitable for various applications requiring reliable control of fluid flow. It features a Class F coil and can be mounted in any direction, making it versatile for installation.

Product Information

Standard Information

• Part Number: 8210G035 24/DC
• Series: 8210

Technical Specifications

• Pipe Size: 3/4 inches
• Orifice Size: 3/4 inches
• Watt Rating: 11.6 watts
• Max (Air): 125 psi
• Max (Water): 125 psi
• Max (Light Oil): 80 psi
• Min Differential (PSI): 0
• Item Weight: 3.70 lbs per EA
