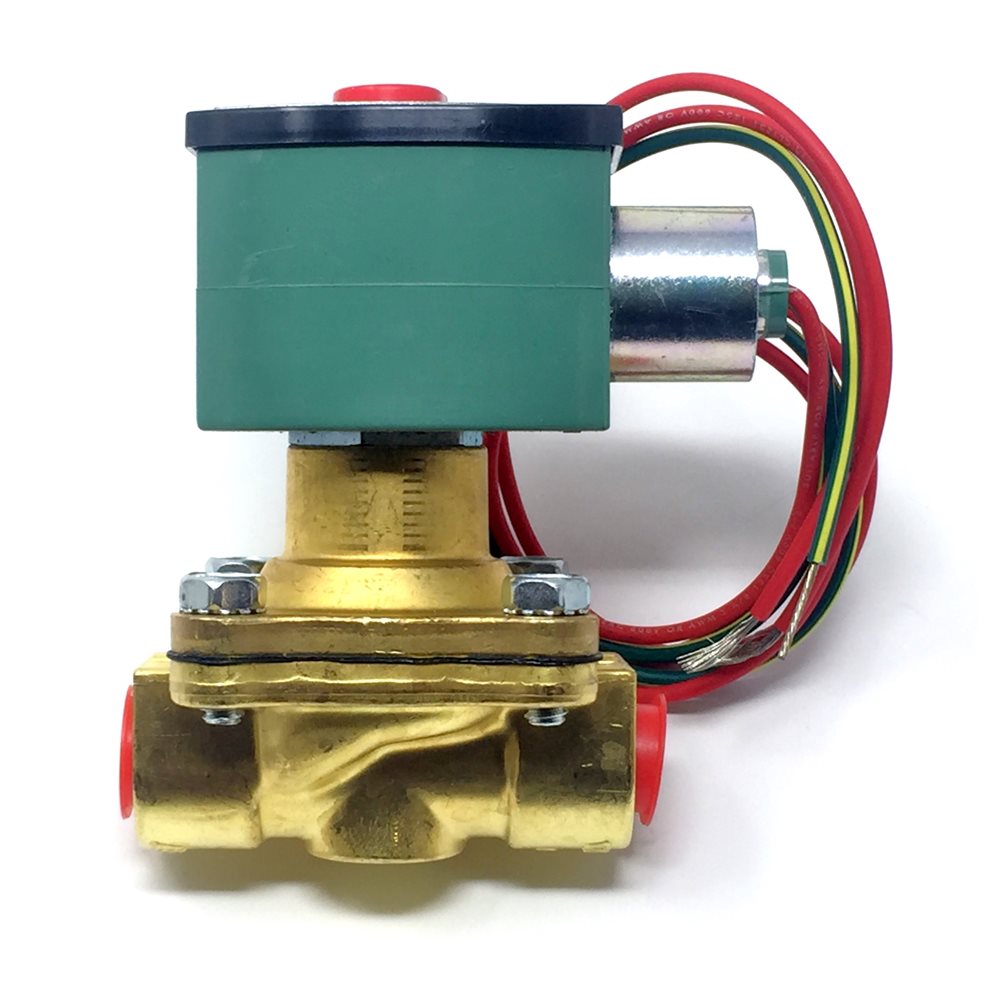

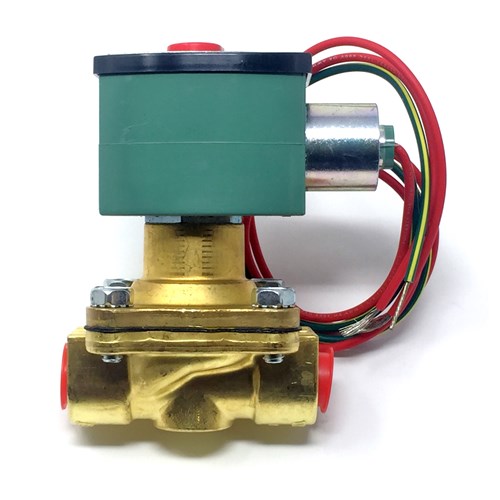

ASCO 8210G03324/60 3/8in 2 Way Normally Open Solenoid Valve 24VAC, 60 Hz

Product Description

The ASCO 8210G03324/60 is a 3/8 inch two-way normally open solenoid valve designed for reliable performance. This solenoid valve operates at 24VAC and 60 Hz. It features a watertight coil that enhances durability and functionality in various applications.

• Pipe size: 3/8 inch
• Maximum fluid temperature: 180 degrees Fahrenheit
• Body material: Brass

Product Highlights

This solenoid valve is suitable for hydraulic and pneumatic control. The watertight design ensures effective sealing in wet environments. With a coil voltage of 24VAC, this valve has a low watt rating of 10.1 watts, making it energy efficient for continuous use.

Product Information

Standard Information

• Brand: ASCO
• Coil Class: Class F

Technical Specifications

• Item Weight: 2.50 lbs per EA
• Mode: Normally Open
• Type: 2 Way
• Orifice Size: 5/8 inch
• Max (Air): 150 psi
• Max (Water): 150 psi
• Max (Light Oil): 125 psi
• Mounting Direction: Any
