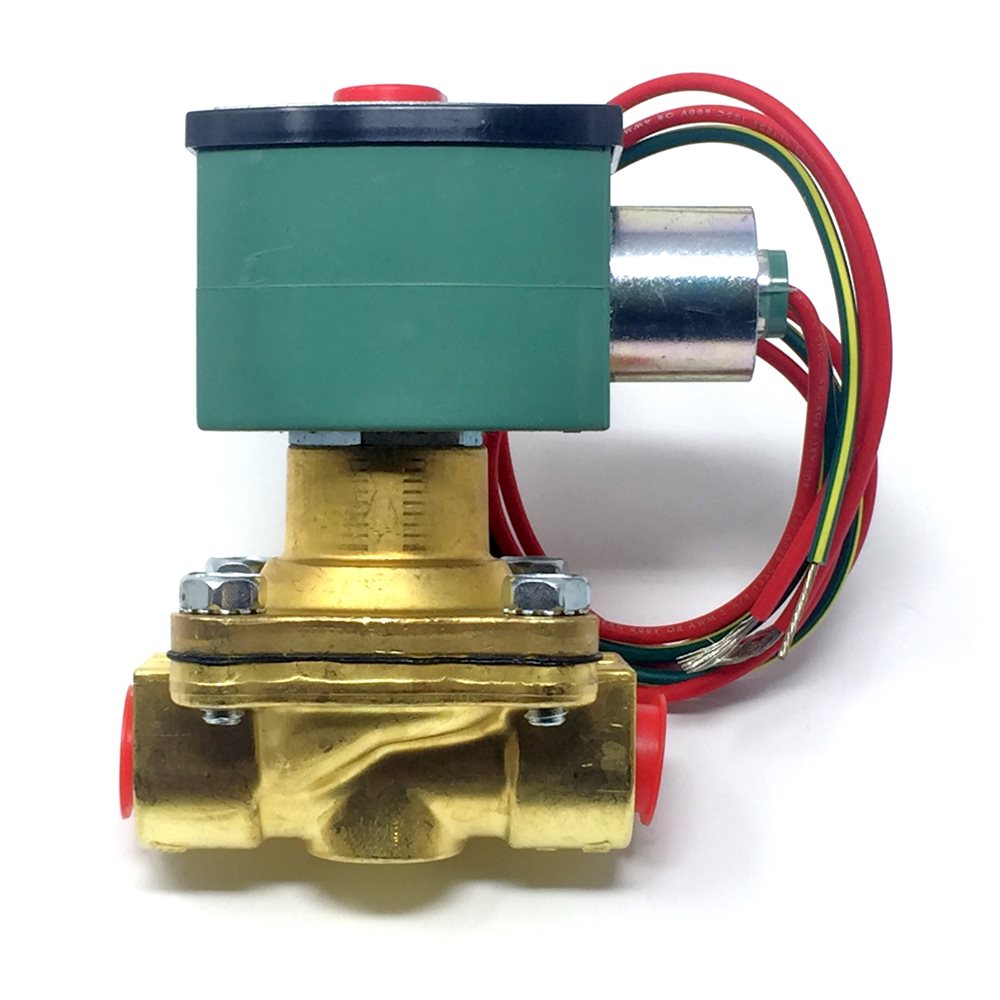

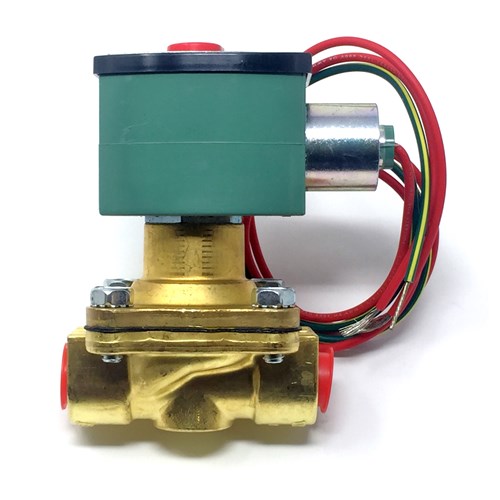

ASCO 8210G033120/60110/50 3/8in 120v NO Air/Water Valve

Product Description

The ASCO model 8210G033120/60110/50 is a 3/8 inch, 120 volt normally open air and water valve. Designed for various applications, it provides reliable operation and ease of use in fluid control systems.

• Pipe Size: 3/8 inches
• Coil Voltage: 120/60 volts and 110/50 volts
• Body Material: Brass

Product Highlights

This valve features a durable design suitable for both air and water service. Its normally open function ensures quick response and operation.

Product Information

Standard Information

• Brand: ASCO
• MPN: 8210G033120/60110/50

Technical Specifications

• Type: 2 Way
• Series: 8210
• Max (Air): 150 psi
• Max (Water): 150 psi
• Max Fluid Temperature: 180 degrees Fahrenheit
• Max Ambient Temperature: 125 degrees Fahrenheit
• Min Ambient Temperature: 32 degrees Fahrenheit
• Inrush Current (VA): 70
• Holding Current (VA): 25
• Orifice Size: 5/8 inches
• Watt Rating: 10.1
• Item Weight: 2.25 lbs per each
• Housing Type: Nema 4X
• Mounting Direction: Any
• Coil Class: Class F
• Lead Length: 18 inches
