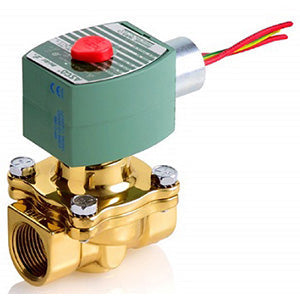

Asco 8210G032 120/60 Lead-Free 2-Way Solenoid Valve
Description:
The ASCO Series 210 is a line of economical, high-flow solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
Lead-free versions are available to comply with Safe Drinking Water Act regulations
Low-temperature models control cryogenic fluids, including liquid nitrogen (-320 F/-194 C), liquid argon (-303 F/-184 C), and liquid oxygen (-297 F/-181 C)
Valves can be specified for hot water service to 210 F / 95 C for in laundry, boiler and heat exchanger applications
Ideal for high-pressure control applications in commercial and industrial gas burners
Use to control liquid petroleum gases (propane) in grain dryers, incinerators, and space heaters
Voltage ranging options available on next generation coils.
Specifications:
Body Material: Brass
Flow (Cv) / Flow (Kv): 22.50 / 19.46
Function: 2 way - 2/2 Normally Open
Pipe/Port Type & Size: NPT 1 1/2
Valve Actuation: Solenoid
Media: Air, Inert Gas, Water, Light Oil
Min to Max Operating Pressure (Air): 5 - 150 PSI
Min to Max Operating Pressure (Water): 5 - 150 PSI
Min to Max Operating Pressure (Light Oil): 5 - 125 PSI
Coil Class: FT
Coil Number: 272610-032-D
Min to Max Ambient Temperature: 32 - 125 F
Orifice Size: 1-1/4 in
Voltage & Frequency: 120 Volts AC with 60 Hz
Watt Rating: 16.1 W
Item Status: Active
Lead Length: 18 inch
Carton Note: 1-1/2X1-1/4 2NO BRS 16.1/F AC
Holding Current (VA): 35
Seating Elastomer: NBR
Mounting Direction: Any
