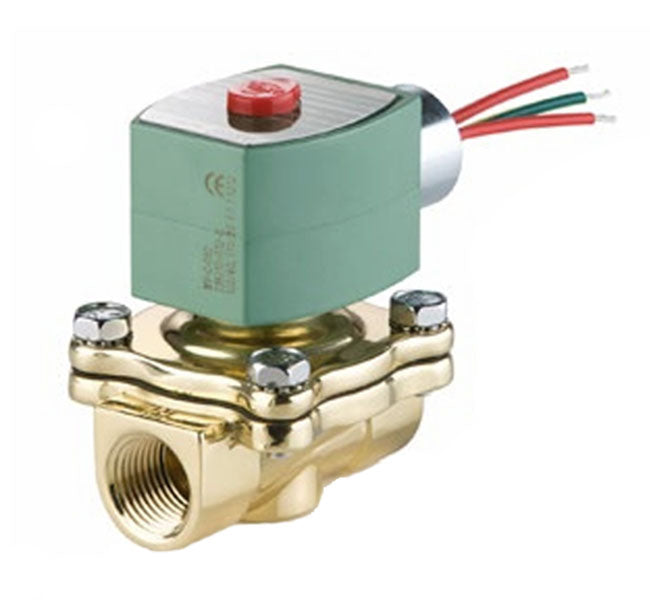

Asco 8210G014LF 2-Way N/O 1 inches Solenoid Valve 120/60 VAC

Product Description

The ASCO 8210G014LF is a 2-way normally open solenoid valve with a 1" NPT connection. This valve is pilot operated and features a lead-free brass body and Buna N seals. It is designed for general purpose use with air, inert gas, water, and oil. The valve is rated for 120 VAC/60 Hz power supply.

• Wide range of pressure ratings, sizes, and resilient materials for long service life and low internal leakage
• High flow capacity valves for liquid, corrosives, and air/inert gas service
• General service models for industrial air compressors, laundry, power washing, industrial water control, pumps

Product Highlights

This 2-way solenoid valve is ideal for industrial applications requiring reliable control of fluids and gases. Its lead-free construction ensures compliance with Safe Drinking Water Act.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8210G014LF

Technical Specifications

• Max Media Temperature: 180 °F
• Media Compatibility: Potable Water
• Power Supply: AC Line Power
• Type: Two Way
• Connection: NPT
• Valve Operation: Normally Open
• Orifice Size: 1 in
• Enclosure Rating: NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
• Body Material: Lead-Free Brass
• Approvals: ANSI,CSA,NSF,SDWA,UL
• Cv: 13
• Pipe Size: 1 in
• Wetted Materials: Lead-Free Brass, Buna N
• Pressure Range: Air/Inert Gas, Water: 5 - 150 PSI,Oil: 5 - 125 PSI
• Supply Voltage (Nominal): 120/60 VAC
• Function: General Service,Potable Water
• Seal Material: Buna N
• Is FM: No
