ASCO 8210G012120/60110/50 1/2in 120/60 2 Way NO

Product Description

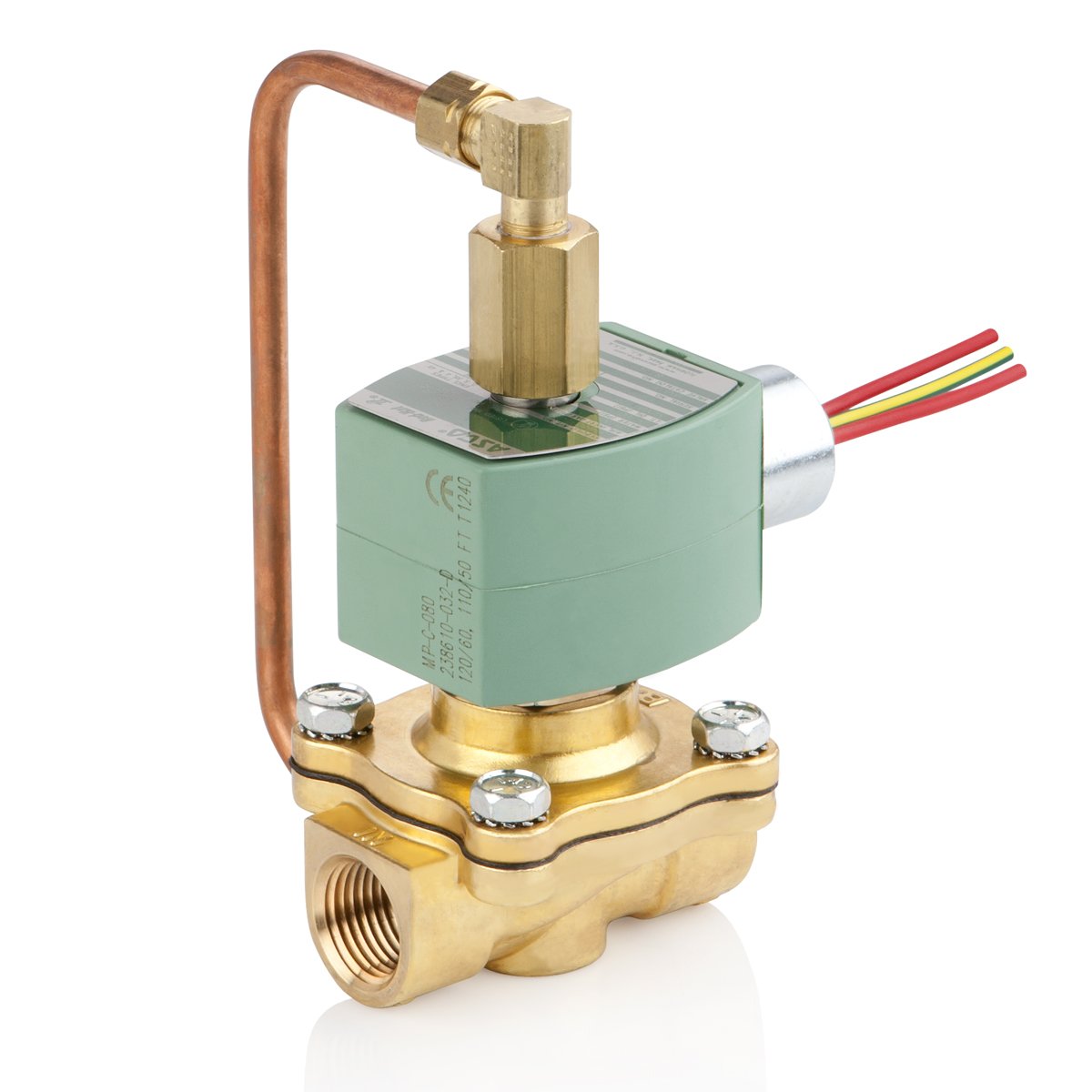

The ASCO 8210G012120/60110/50 is a solenoid valve designed for reliable operation in various applications. This valve features a half inch pipe size and operates at a coil voltage of one hundred twenty volts at sixty hertz or one hundred ten volts at fifty hertz.

• Pipe Size: 1/2 inch
• Type: 2 Way, Normally Open
• Max Fluid Temperature: 180 degrees Fahrenheit

Product Highlights

This valve is suitable for air and water applications with maximum pressures of two hundred fifty PSI for air and two hundred PSI for water. The durable brass body ensures longevity in various environments.

Product Information

Standard Information

• Brand: ASCO
• MPN: 8210G012120/60110/50

Technical Specifications

• Model: 8210
• Coil Class: Class F
• Orifice Size: 5/8 inch
• Lead Length: 18 inches
• Shading Ring: Copper
• Body Material: Brass
• Seat Material: NBR
• Inrush Current (VA): 70
• Holding Current (VA): 25
• Max Ambient Temperature: 125 degrees Fahrenheit
• Min Ambient Temperature: 32 degrees Fahrenheit
• Max Fluid Temperature: 180 degrees Fahrenheit
• Min Differential (PSI): 5
