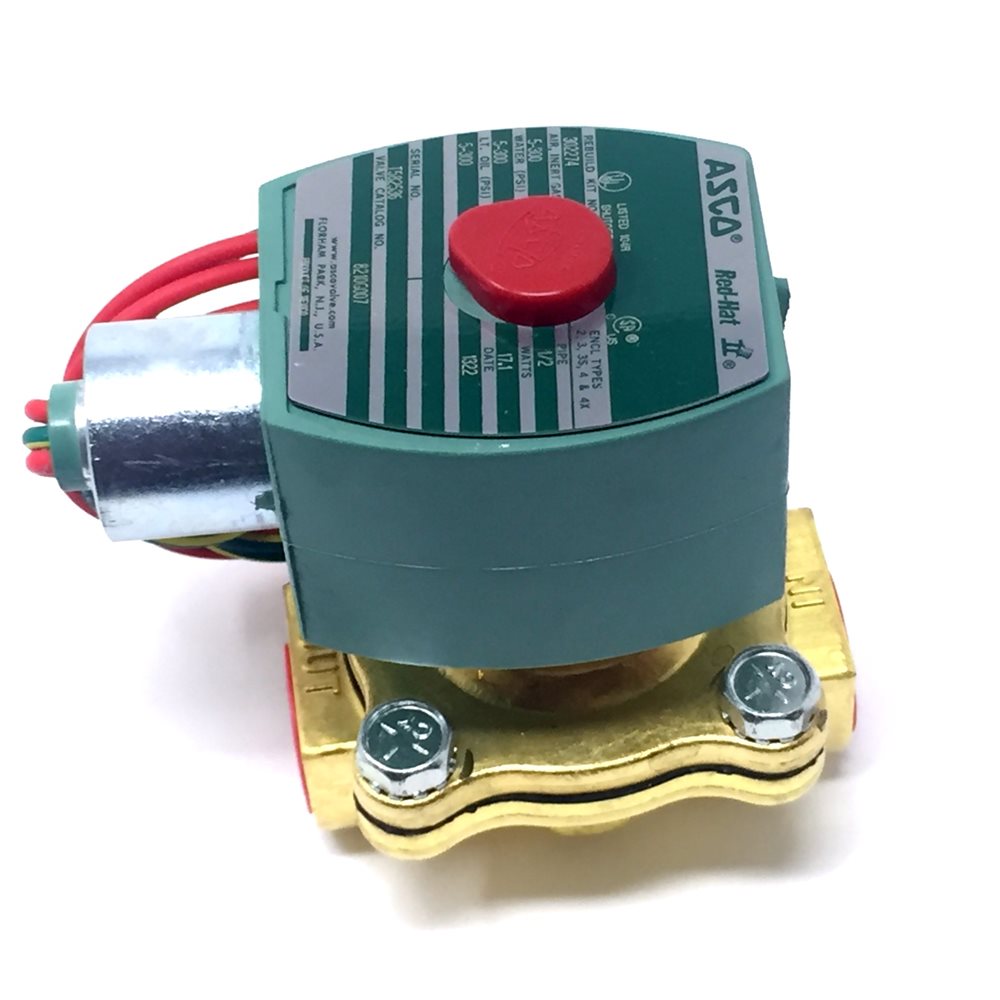

ASCO 8210G007120/60110/50 1/2in 120V Air/Water/Oil 5Lb Min 300 Lb

Product Description

The ASCO 8210G007120/60110/50 is a solenoid valve suitable for air, water, and oil applications. It operates at 120 volts and can handle a minimum pressure of five pounds and a maximum of three hundred pounds. The valve features a two-way design and is normally closed. It is built for versatility, capable of functioning in various positions.

• Operating voltage: 120 volts
• Features a two-way normally closed design
• Designed for air, water, and oil service

Product Highlights

This solenoid valve is ideal for HVAC technicians, plumbers, and other trade professionals. It operates efficiently under various conditions, making it a reliable choice for demanding applications.

Product Information

Standard Information

• Brand: ASCO
• MPN: 8210G007120/60110/50

Technical Specifications

• Max Cv: 4
• Pipe Size: 1/2 inches
• Coil Voltage: 120/60 110/50
• Coil Class: Class F
• Body Material: Brass
• Seat Material: NBR
• Inrush Current (VA): 93
• Holding Current (VA): 40
• Max Fluid Temperature: 175 degrees Fahrenheit
• Min Fluid Temperature: 32 degrees Fahrenheit
• Max Ambient Temperature: 125 degrees Fahrenheit
• Min Ambient Temperature: 32 degrees Fahrenheit
• Lead Length: 18 inches
• Orifice Size: 5/8 inches
• Shading Ring: Copper
• Mounting Direction: Any
• Rebuild Kit Number: 302274
• Max (Air): 300
• Max (Water): 300
• Max (Lt Oil): 300
