ASCO 8210G006120/60110/50 3/8 in 2-W 120v Solenoid Valve

Product Description

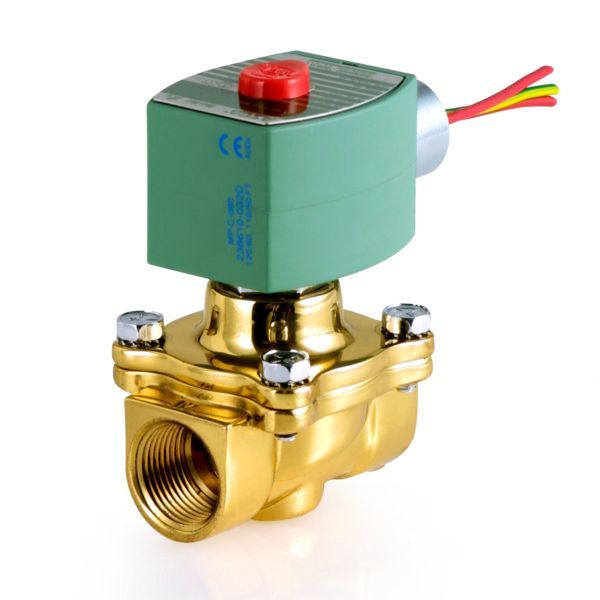

The ASCO 8210G006120/60110/50 is a 3/8-inch two-way solenoid valve designed for 120 volt applications. This solenoid valve is ideal for controlling the flow of air, water, and light oil in various systems. It operates normally closed and features a robust brass body that ensures longevity and reliability.

• Coil Voltage: 120/60 110/50
• Maximum Fluid Temperature: 175 degrees Fahrenheit
• Minimum Fluid Temperature: 32 degrees Fahrenheit

Product Highlights

Designed for versatile mounting and use in diverse environments, this valve features an orifice size of five-eighths inches. It is rated for a maximum air pressure of three hundred PSI and offers easy installation due to its adaptable mounting direction.

Product Information

Standard Information

• Brand: ASCO
• Type: 2 Way

Technical Specifications

• Model: 8210
• Maximum Water Pressure: 300 PSI
• Watt Rating: 17.1 Watts
• Lead Length: 18 inches
• Maximum Ambient Temperature: 125 degrees Fahrenheit
• Minimum Ambient Temperature: 32 degrees Fahrenheit
• Shading Ring: Copper
• Body Material: Brass
• Seat Material: NBR
• Inrush Current: 93 VA
• Holding Current: 40 VA
• Min Differential: 5 PSI
