ASCO 8210G004LF120/60110/50 1in 120V NC AWO 5-150# Lead-Free

Product Description

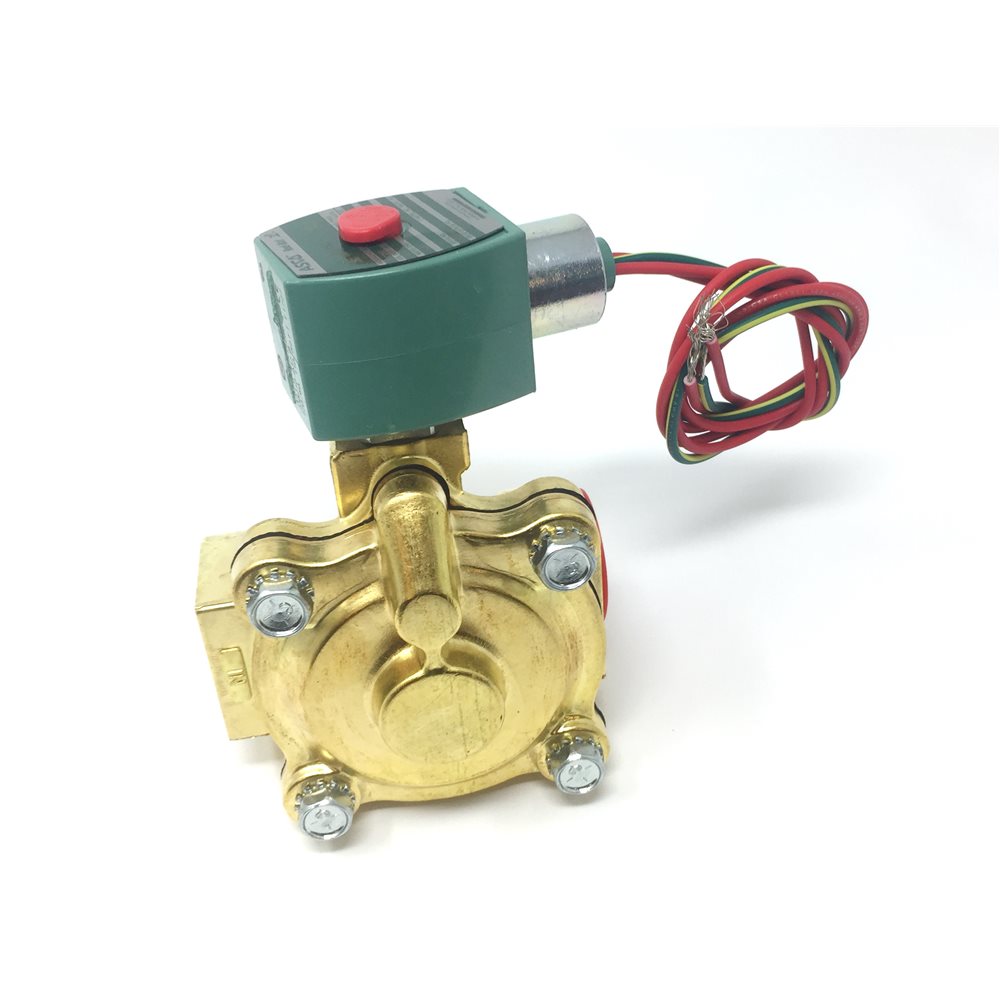

The ASCO 8210G004LF120/60110/50 is a one inch, 120 volt normally closed solenoid valve. It is designed to handle a maximum fluid temperature of one hundred eighty degrees Fahrenheit. The valve is lead-free, making it suitable for use in potable water applications.

• Quality brass body material
• Compatible with Class F coil specifications
• Capable of handling pressures up to one hundred fifty pounds

Product Highlights

This solenoid valve is efficient for controlling fluid flow in various systems. It is built to operate under stringent conditions while maintaining durability.

Product Information

Standard Information

• Product Name: 1in 120V NC AWO 5-150# Lead-Free
• Brand: ASCO

Technical Specifications

• Model: Normally Closed
• Type: 2 Way
• Series: 8210
• Pipe Size: 1 inch
• Max Fluid Temperature: 180 degrees Fahrenheit
• Max Pressure (Air): 150 psi
• Max Pressure (Water): 150 psi
• Body Material: Brass
• Seat Material: NBR
• Coil Voltage: 120/60 110/50
• Coil Class: Class F
• Watt Rating: 6.1 watts
• Item Weight: 5.00 lbs per unit
• Lead Length: 18 inches
• Mounting Direction: Any
