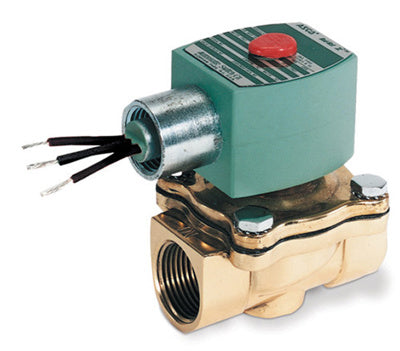

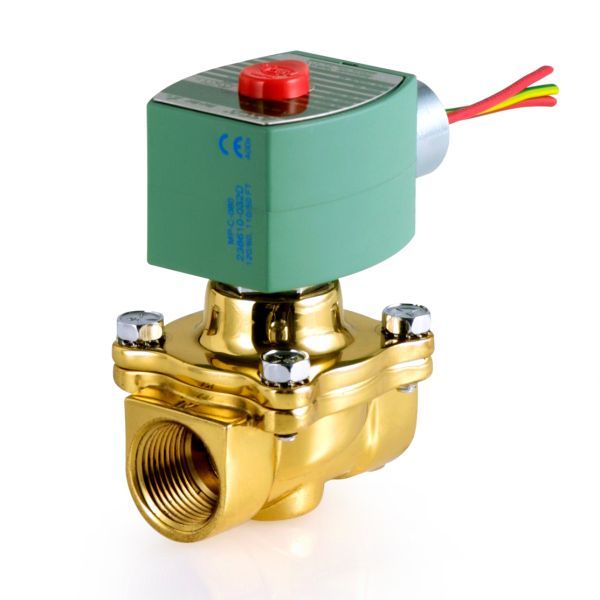

Asco 8210G004 AC 120/60,110/50 D Solenoid Valve 1 inches NPT 2-Way Normally Closed

Product Description

The ASCO 8210G004 AC 120/60,110/50 D is a fast-acting, high-flow solenoid valve designed for liquid and air service. This 2-way normally closed valve features a brass body and NPT(F) connection. ASCO's Series 8210 valves are known for their reliability and endurance in various applications. It requires a minimum operating pressure differential of 5 psi.

• Fast-acting and high-flow design
• Suitable for liquid and air service
• Features a normally closed configuration

Product Highlights

This ASCO solenoid valve is ideal for on/off service with clean water or air, offering reliable performance in general service applications.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8210G004 AC 120/60,110/50 D
• Country of Origin: United States

Technical Specifications

• Valve Construction: Brass, Buna N Seals
• Temperature: 180°F
• Applications: on/off service for clean water/air
• Voltage: 120 VAC, 60 Hz
• Max psi rating: 150 psi
• Manufacturer Part Number: 8210G004 AC 120/60,110/50 D
• Manufacturer: Asco
• Description: Valve Unit 1 X 1 2NC Brass 6.1/F AC
• Air Pressure: 150 psi
• Orifice Diameter: 1 "
• Enclosure: General Purpose and Watertight: NEMA 1, 2, 3, 3S, 4, and 4X
• Valve Functionality: 2-Way, 2-Position, Normally Closed
• Power Consumption: 6.1 W
• Flow Coefficient (cV): 13
• Compatible Fluid Type: Air, Light Oil, Non-Corrosive Media, Water
• Operating Temperature: 180 °F
• Valve Type: 2-Way Normally Closed
• Body Material: Brass
• Elastomer Seals: Buna N
• Pipe Size: 1"
• Cv: 13
• Pressure in PSI - Min: 5
• Pressure in PSI - Max Air: 150
• Pressure in PSI - Max Water: 150
• Pressure in PSI - Max Oil: 100
• Max. Media Temperature: 180° F
• Size: 1 In
• Body Design: 2-Way
• Operation: Normally Closed
• Valve Service: General Service
• Series: 8210
• Max Fluid Temp: 180°F
• Ambient Temp. Range: 32 to 125°F
• Min. OPD: 5 PSI
• Max OPD Air: 150 PSI
• Max OPD Water: 150 PSI
• Max OPD Lt. Oil: 100 PSI
• Coil Wattage: 6.1
• Electrical Connection: 1/2" Conduit w/ 18" Leads
• Solenoid Enclosure: Watertight
• Construction: Pilot Operated
• Seat Material: NBR
• Brand: Asco
• Country of Origin: United States
• Input Voltage: 120/60,110/50 AC
