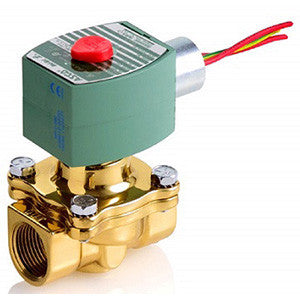

Asco 8210G003 240/60 220/50 General Purpose Solenoid Valve 240vac 3/4in 8210G3

Product Description

The ASCO 8210G003 240/60 220/50 is a RedHat II Series 8210 general purpose solenoid valve designed for controlling air-inert gas, water, and light oil. This 3/4-inch, 2-way/2-position, normally closed valve features a brass body and pilot-operated diaphragm, suitable for various industrial applications. It operates on 220 VAC 50 Hz or 240 VAC 60 Hz and has a NEMA 1/2/3/3S/4/4X enclosure.

• Lead-Free construction with a durable brass body.
• NEMA 1/2/3/3S/4/4X enclosure for robust environmental protection.
• Pilot-operated, 2-way/2-position, normally closed diaphragm valve.

Product Highlights

This ASCO solenoid valve is ideal for general purpose applications involving air, water, and light oil, offering reliable flow control.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8210G003 240/60 220/50

Technical Specifications

• Part Number: 8210G003 240/60 220/50
• SKU: 8210G003 240/60 220/50
• Product ID: 367881
• Alternate Part Number: 8210G3
• Supplier Part Number: 8210G003 240/60 220/50
• Unit of Measure: EA
• Manufacturer: ASCO Valve
• Application: Air Compressor
• Certifications: CE, UL
• Body Material: Brass
• Input Voltage: 220 VAC 50 Hz, 240 VAC 60 Hz
• Media: Air-Inert Gas, Light Oil, Water
• Port Connection Type: 3/4 in. Female Threaded x 3/4 in. Female Threaded
• Pressure Rating: 5 to 250 psi (Air-Inert Gas), 5 to 150 psi (Water), 5 to 100 psi (Light Oil)
• Product Family: Series 210
• Fluid Temperature Rating: 180 °F
• Valve Position: Normally Closed (NC)
• Enclosure Rating: NEMA 1/2/3/3S/4/4X
• Product Category: Valves
• Solenoid Valve Type: Solenoid Valves, General Purpose Solenoid Valves
• Valve Type: Pilot-Operated
• Function: 2-Way/2-Position, Diaphragm, Pilot Operated
• Port Configuration: 2-way
• Seal Material: NBR
• Wattage: 6.1 W
• Port Size: 3/4 in.
• Valve Actuation: Solenoid
• Port Type: NPTF
• Flow Coefficient (Cv): 6.5
• Operating Environment: Indoor, Outdoor
