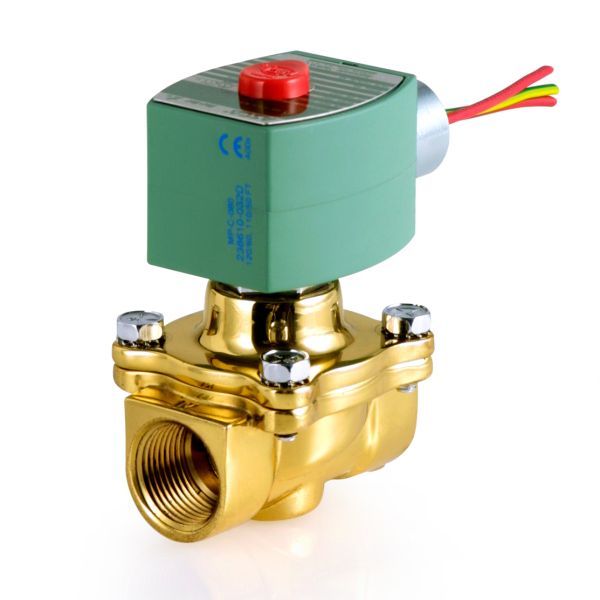

Asco 8210G002 AC 24/60 2-Way N/C 1/2 X 5/8

ASCO
Brand: ASCO
SKU: 8210G002 AC 24/60 D
Availability: Out Of Stock
$267.93
$267.93
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ASCO 8210G002 is a 2-way normally closed solenoid valve with a brass body and Buna N elastomer seals. It features a 1/2" pipe size and 5/8" orifice with a Cv of 4. This valve is designed for general service applications, handling air, inert gas, light oil, and water with a maximum media temperature of 180°F.

  • Wide range of pressure ratings, sizes, and resilient materials for long service life and low internal leakage
  • High flow capacity valves for liquid, corrosives, and air/inert gas service
  • General service models for industrial air compressors, laundry, power washing, industrial water control, pumps

Product Highlights

The ASCO 8210G002 solenoid valve is ideal for industrial applications requiring reliable control of fluids and gases.

Product Information

Standard Information

  • Brand: ASCO
  • Manufacturer Part Number: 8210G002 AC 24/60 D
Technical Specifications
Max Media Temperature
180 °F
Media Compatibility
Air-Inert Gas,Light Oil,Water
Power Supply
AC Line Power
Type
Two Way
Connection
NPT
Valve Operation
Normally Closed
Orifice Size
5/8 in
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Body Material
Brass
Approvals
CE,CSA,UL
Cv
4
Pipe Size
1/2 in
Wetted Materials
Brass, Buna N
Pressure Range
Air/Inert Gas: 5 - 200 PSI,Water: 5 - 150 PSI,Oil: 5 - 135 PSI
Supply Voltage (Nominal)
24/60 VAC
Function
General Service
Seal Material
Buna N
Max PSI
200
Min PSI
5
Voltage AC
24
Inlet Port
1/2 inch
Outlet Port
1/2 inch
Air Pressure
200 PSI
Actuation
Piloted Solenoid
Orifice Diameter
0.62 Inches
Number of Solenoids
1
Supply Voltage
24 VAC
Power Consumption
6.1 Watts
Valve Functionality
2-Way, 2-Position, Normally Closed
Flow Coefficient (cV)
4
Compatible Fluid Type
Water, Air, Light Oil, Non-Corrosive Media
Housing Material
Brass
Operating Temperature
180 Degrees F
Operating Pressure Rating (Air)
Min: 5 PSI Max: 200 PSI
Operating Pressure Rating (Water)
Min: 5 PSI Max: 150 PSI
Operating Pressure Rating (Lt Oil)
Min: 5 PSI Max: 135 PSI
RoHS
No
Brand
Asco
MPN
8210G002
Size
1/2 In
Mfg. Product Number
8210G002AC24/60D
Operation
Normally Closed
Voltage
24/60 AC
Valve Service
General Service
Series
8210
Max Fluid Temp
180 °F
Ambient Temp. Range
32 to 125 °F
Min. OPD
5 PSI
Max OPD Air
200 PSI
Max OPD Water
150 PSI
Max OPD Lt. Oil
135 PSI
Coil Wattage
6.1
Electrical Connection
1/2" Conduit w/ 18" Leads
Solenoid Enclosure
Watertight
Construction
Pilot Operated
Seat Material
NBR
