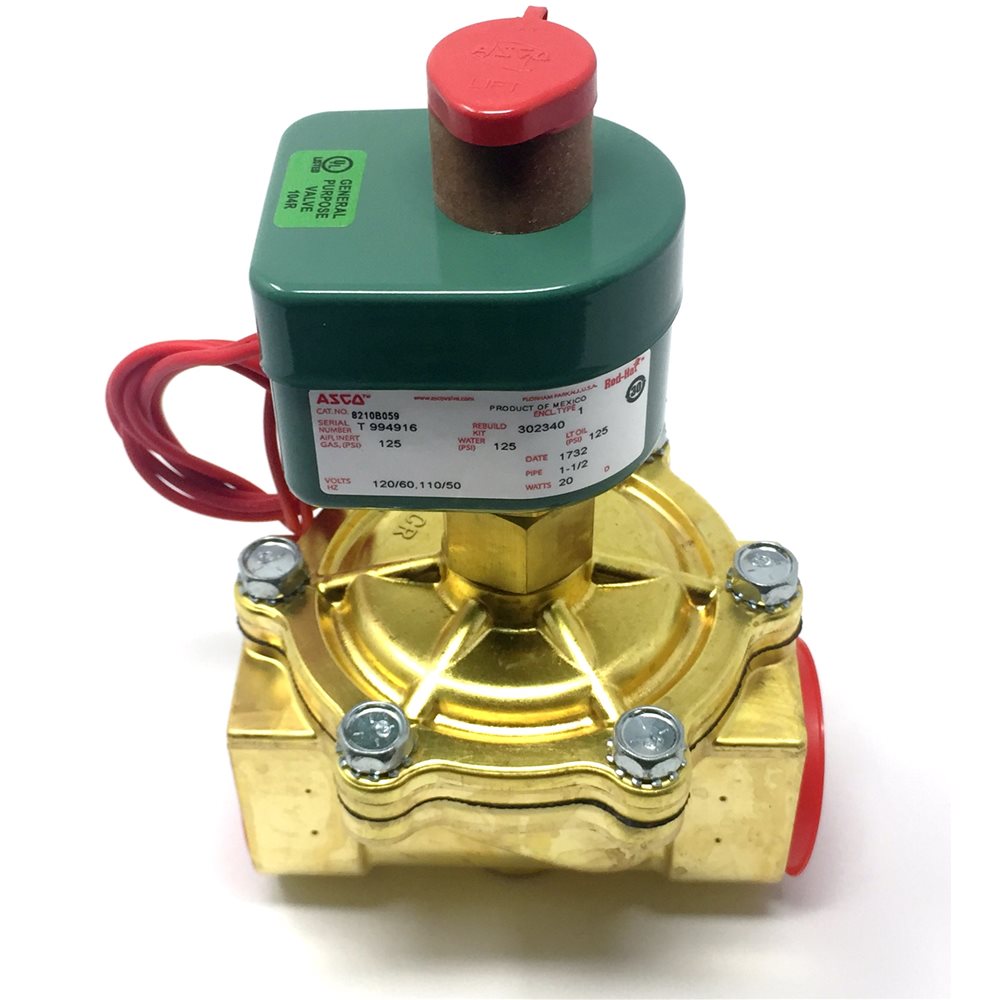

ASCO 8210B059120/60110/50 120V 1.5in No Air/Water/Oil Replacement MPN

Product Description

The ASCO 8210B059120/60110/50 is a 1.5-inch solenoid valve designed for use with various fluids including air, water, and oil. Its durable construction ensures reliable operation under different conditions. This valve operates at a voltage of one hundred twenty volts and is capable of handling a maximum fluid temperature of one hundred eighty degrees Fahrenheit.

• Pipe size of one and a half inches.
• Normally open mode for easy configuration.
• Brass body and NBR seat material for effective sealing.

Product Highlights

This solenoid valve is ideal for HVAC applications and other industrial uses that require precise fluid control.

Product Information

Standard Information

• Coil Voltage: 120/60 110/50
• Pipe Size: 1-1/2 inches

Technical Specifications

• Cv: 22.5
• Max Fluid Temperature: 180 degrees Fahrenheit
• Inrush Current (VA): 240
• Holding Current (VA): 43
• Shading Ring: Copper
• Coil Class: Class F
• Body Material: Brass
• Seat Material: NBR
