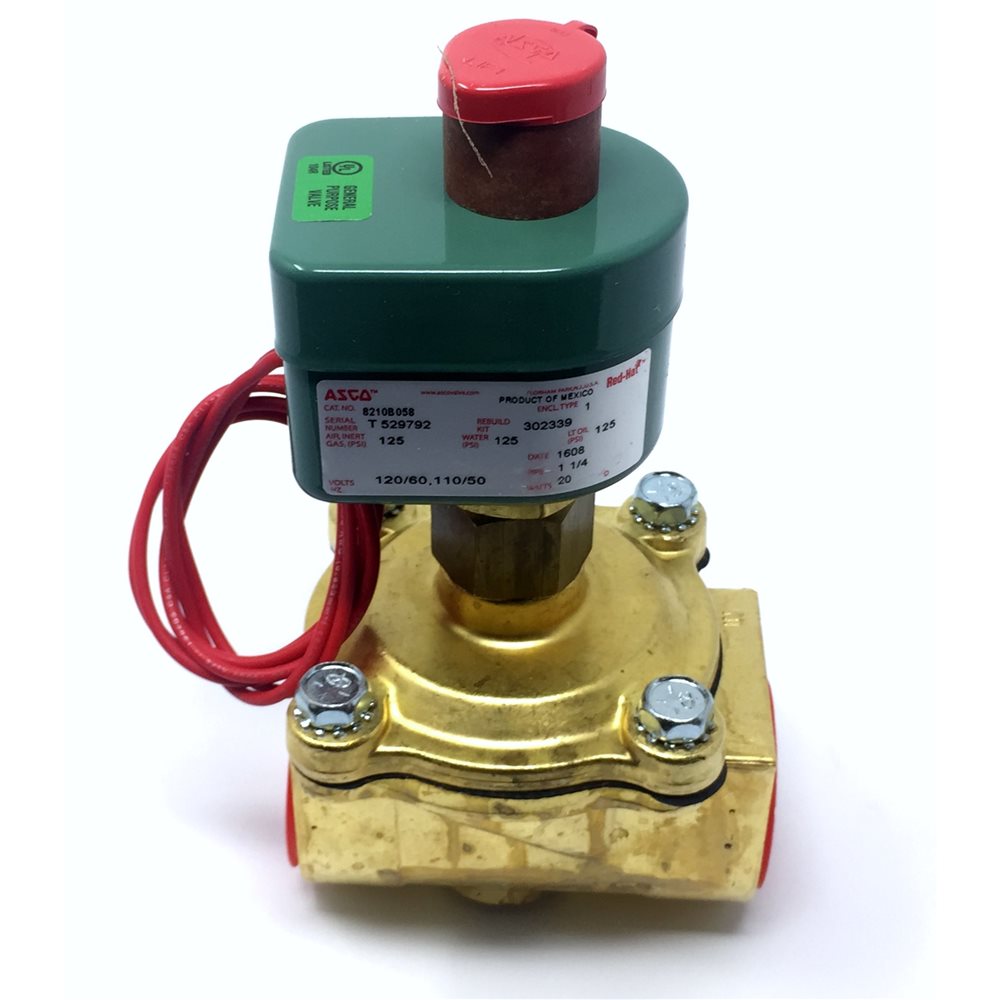

ASCO 8210B058120/60110/50 1.25in N O 120V Air/Water/Oil 0# Min 125

Product Description

The ASCO 8210B058120/60110/50 is a reliable solenoid valve designed for air, water, and oil applications. This valve supports a connection size of one and one-quarter inches and operates on 120 volts at sixty hertz. It is ideal for systems requiring a normally open configuration and a maximum fluid temperature of one hundred eighty degrees.

• Connection size: one and one-quarter inches
• Coil class: Class F
• Body material: brass

Product Highlights

This solenoid valve features a reliable operation with minimal differential pressure. It also provides easy installation in vertical and upright mounting directions.

Product Information

Standard Information

• Product Name: 1.25in N O 120V Air/Water/Oil 0# Min 125
• Brand: ASCO

Technical Specifications

• Model: Normally Open
• Type: 2 Way
• Series: 8210
• Orifice Size: 1-1/8
• Max (Air): 125
• Max (Water): 125
• Max (Lt Oil): 125
• Item Weight: 6.00 lbs per EA
• Inrush Current (VA): 240
• Holding Current (VA): 43
• Coil Voltage: 120/60 110/50
• Lead Length: 18
• Mounting Direction: Vertical and Upright
