ASCO 8210B057120/60110/50 1in 120V NO Air/Water/Oil 0 -125#

Product Description

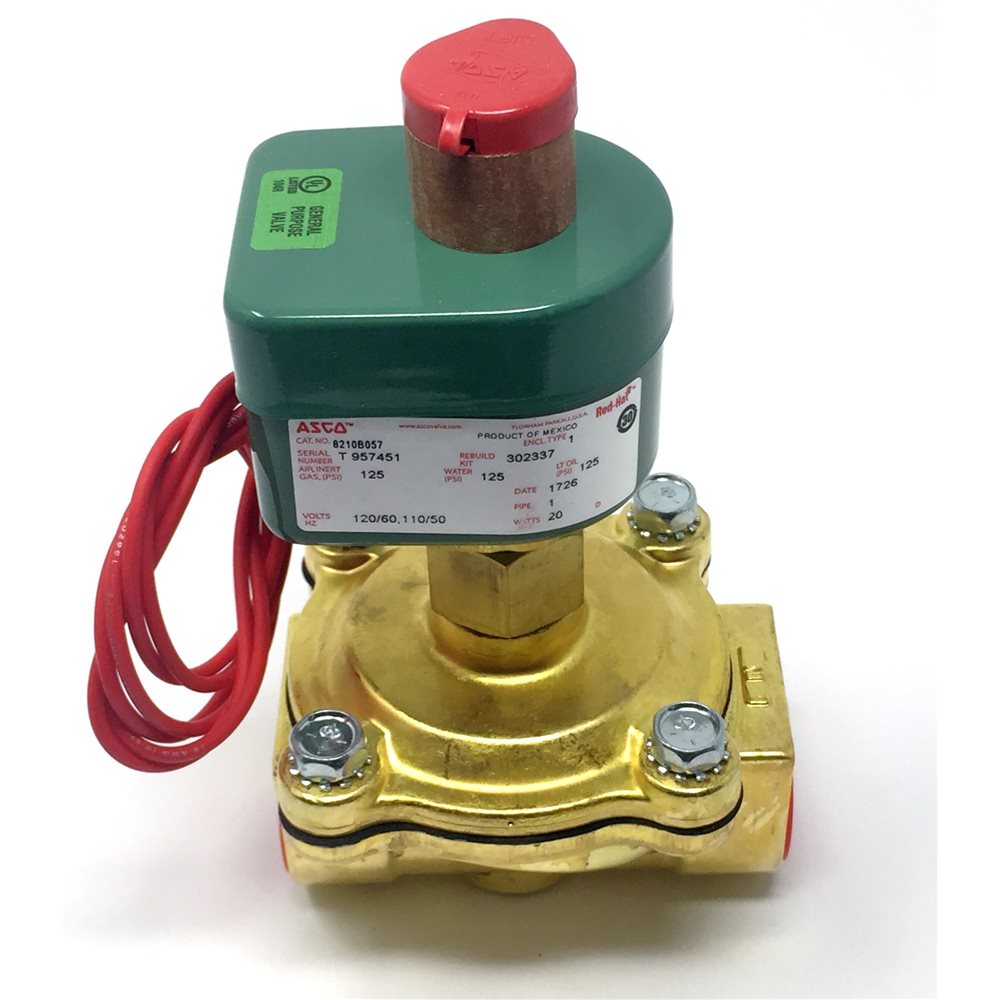

The ASCO 8210B057120/60110/50 is a one-inch normally open solenoid valve. It is suitable for air, water, and oil use, with a maximum pressure of one hundred twenty-five PSI. The valve operates at a voltage of one hundred twenty volts and a frequency of sixty hertz.

• Operates with air, water, and oil systems
• Maximum fluid temperature of one hundred eighty degrees Fahrenheit
• Standard coil voltage of one hundred twenty/sixty or one hundred ten/fifty

Product Highlights

This product is designed for vertical and upright mounting and is built to handle diverse industrial applications. The brass body ensures durability, while the NBR seat material provides reliable sealing.

Product Information

Standard Information

• Brand: ASCO
• Pipe Size: 1 inch

Technical Specifications

• Model: Normally Open
• Series: 8210
• Cv: 13
• Inrush Current: 240 VA
• Holding Current: 43 VA
• Max Ambient Temperature: 180 degrees Fahrenheit
• Min Ambient Temperature: 32 degrees Fahrenheit
• Orifice Size: 1 inch
