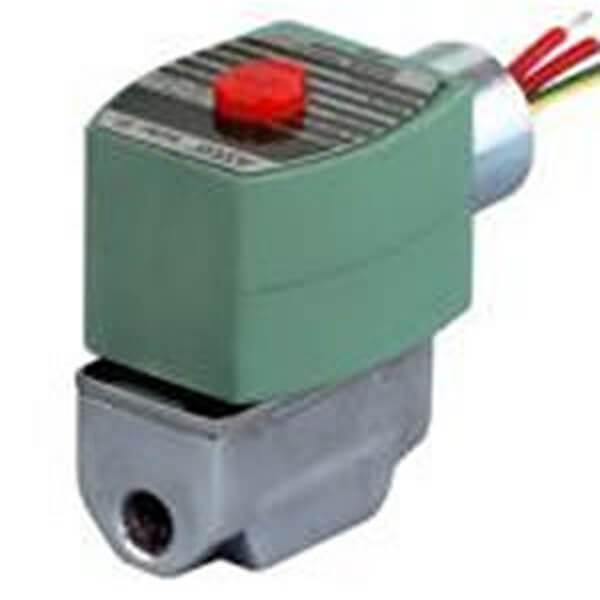

ASCO 8040H006 Gas Safety Shut Off Solenoid Valve – 120/60 VAC

The ASCO 8040H006 is a high-performance gas safety shut-off solenoid valve, ideal for commercial and industrial use. Part of the trusted ASCO Series 040, this compact valve provides precise control for pilot or main gas flow in applications such as generators, ovens, and heating systems.

Designed with a 2-way, normally closed configuration, the valve includes 1/8-inch NPT upstream and downstream taps with plugs to support routine safety testing. It operates on 120 VAC 60 Hz / 110 VAC 50 Hz, offering dependable shutoff performance for fuel gas up to 15 psig.

Key Features & Specifications

• Model: ASCO 8040H006
• Voltage: 120 VAC 60 Hz / 110 VAC 50 Hz
• Valve Type: 2-Way, Normally Closed
• Flow Rate: 1 Cv
• Body Material: Aluminum
• Seal Material: NBR
• Max Pressure: 15 psig
• Max Temperature: 125°F
• End Connection: 1/8" NPT
• Certifications: UL, FM, CSA
• Application: Fuel gas shutoff for burners, heaters, and ovens
