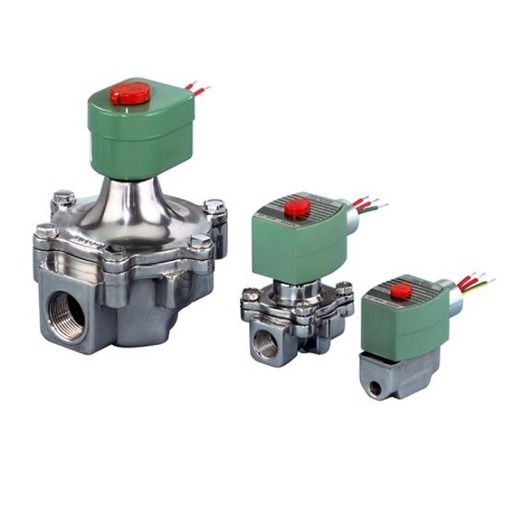

ASCO 8040C005CSAAC120/60110/50D 2-Way Solenoid Valve

Product Description

The ASCO 8040C005CSAAC120/60110/50D is a two-way solenoid valve meant for fuel gas applications. This valve is built with an aluminum body and has a normally closed design, making it suitable for various media including air, inert gas, and fuel gas. It has an NPT pipe size of one and one-quarter inches and an orifice diameter of one and five-eighths inches. This valve operates efficiently at 110 to 120 VAC and a frequency of 50 to 60 Hz, with a maximum fluid temperature of one hundred twenty-five degrees Fahrenheit.

• Mountable in any position for flexibility.
• Direct-acting construction allows operation from zero PSI to a max pressure differential of 0.5 PSI.
• Certified by CSA for reliability and safety.

Product Highlights

This solenoid valve is designed for the shutoff of main gas lines, accommodating sizes up to one and one-quarter inches.

Product Information

Standard Information

• Manufacturer: ASCO
• Body Material: Aluminum

Technical Specifications

• Current Type: AC
• Frequency: 50/60 Hz
• Pipe Size: 1 1/4 in
• Voltage: 110 AC, 120 AC
• Weight: 3.70 lb
• Orifice Diameter: 1-5/8 in
• Max Fluid Temperature: 125°F
• Min. Operating Differential Pressure: 0 PSI
• Max Operating Differential Pressure (Fuel Gas): 0.5 PSI
