ASCO 8222G95 3/4 NC 0/50#STEAM 120V 300F

Product Description

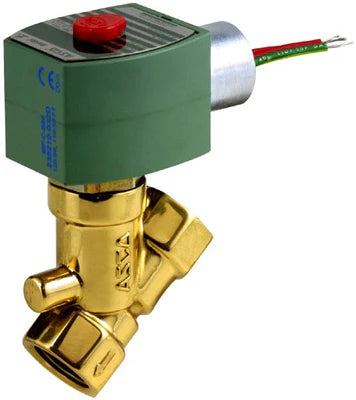

The ASCO 8222G95 is a three-quarter inch normally closed solenoid valve that is designed for controlling steam flow in industrial systems. This valve operates at a voltage of 120V and can handle temperatures up to three hundred degrees Fahrenheit with a pressure rating of up to fifty psi. The robust construction ensures reliable functioning in demanding environments.

• Engineered for steam applications with high reliability.
• NEMA 4X/IP66 rated for protection against dust and water.
• Manual override function for emergency operation.

Product Highlights

This product is significant in steam process control, boiler feed systems, and various sterilization applications.

Product Information

Standard Information

• Brand: ASCO
• MPN: 8222G95

Technical Specifications

• Item Number: 8222G95
• Voltage: 120V AC
• Temperature Rating: 300°F
• Pressure Rating: 50 psi
• Body Material: Cast Iron
• Dimensions: 4.35 inches (Length) x 5.3 inches (Width) x 2.95 inches (Height)
• Weight: 2.43 pounds
