ASCO AH2E102S4 Hydramotor Actuator 120V On-Off Slow Opening 26 Seconds Max Proof of Closure

Product Description

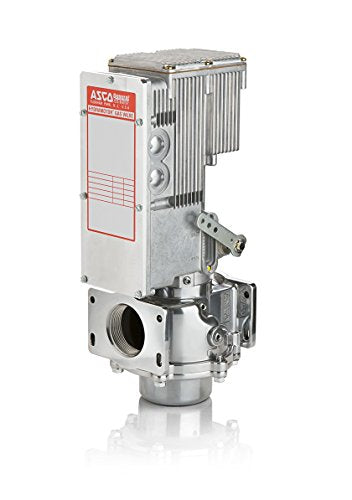

The ASCO AH2E102S4 Hydramotor Actuator is designed for use with V710 gas valve bodies, offering reliable on-off slow opening operation with proof of closure. This electrohydraulic linear actuator extends when powered and retracts by spring force upon power interruption. It features a slow opening time of up to 26 seconds and a fast spring return shutoff time of one second or less.

• Push-type operation
• Self-contained unit
• Electrohydraulic linear design

Product Highlights

The AH2E102S4 is ideal for main line gas control in various applications, including boilers, furnaces, ovens, and industrial burners. Its position indicators show the valve's status, ensuring safe and efficient operation.

Product Information

Standard Information

• Brand: ASCO
• MPN: AH2E102S4
• Quantity: 1

Technical Specifications

• Operation: On-Off Slow Opening (26 Seconds Max)
• Proof of Closure: Yes
• Voltage: 120V / 50-60 Hz
• Weight: 1.00089748 pounds
• Total Weight: 12.08 pounds
• Length: 11.9 inches
• Width: 8.8 inches
• Height: 10.55 inches
