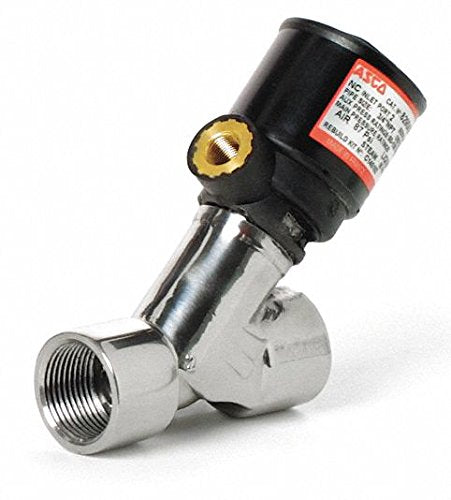

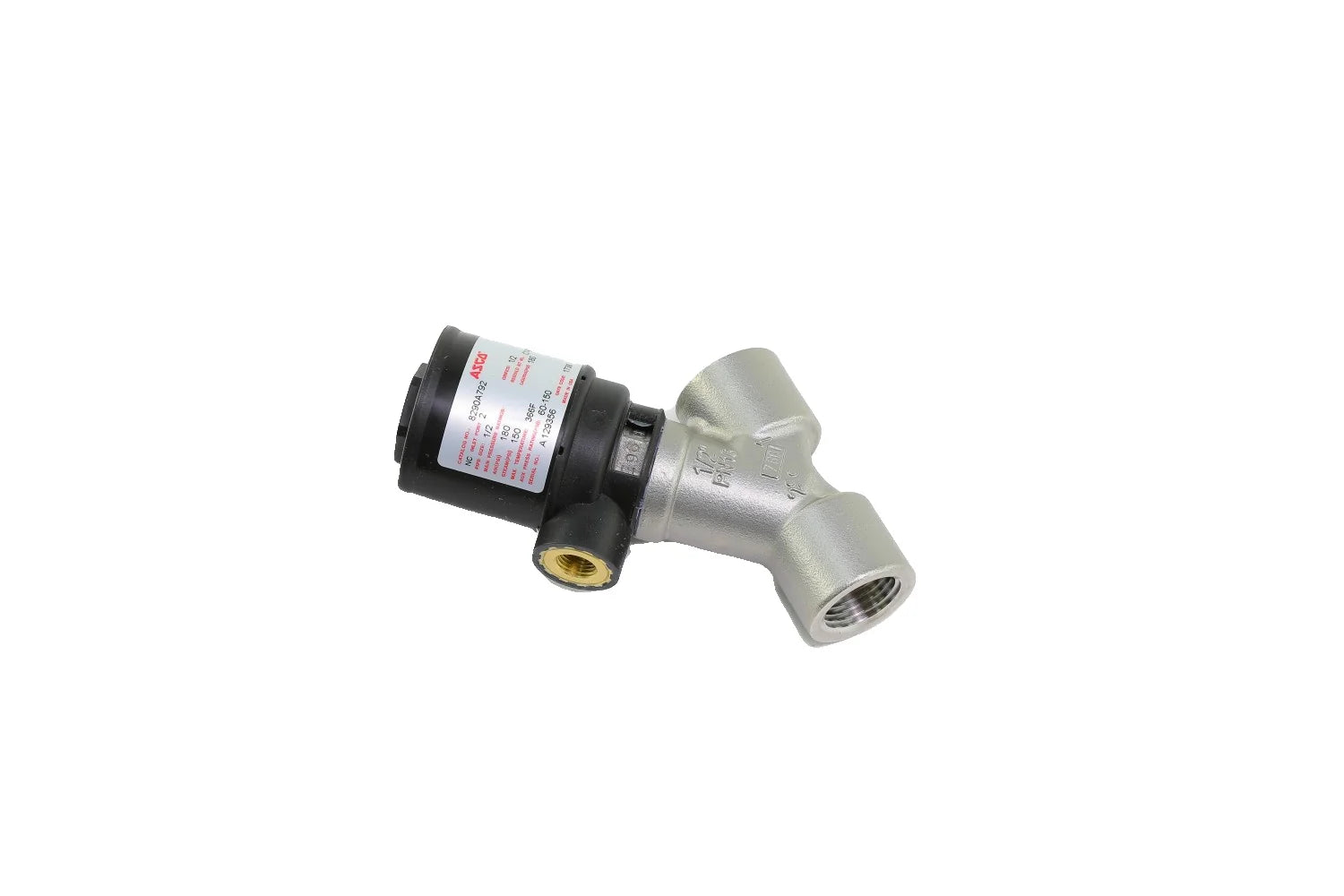

ASCO 8290A792 Stainless Steel Angle Body Piston Valve 1/2 Inch NPT Normally Closed

Product Description

The ASCO 8290A792 Stainless Steel Angle Body Piston Valve is engineered for precise fluid control. This valve is ideal for rigorous industrial environments and offers reliable performance under high pressure conditions.

• Easy installation with a 1/2 inch NPT interface.
• Robust 316L stainless steel construction for enhanced durability.
• Capable of handling pressures up to 180 psi with water and 150 psi with steam.

Product Highlights

This valve ensures efficient operation with a minimal operating pressure differential of 0 psi and an ambient temperature range from 15 degrees to 140 degrees Fahrenheit. Its coefficient of volume is 4.1, facilitating high flow rates.

Product Information

Standard Information

• Max Fluid Temperature: 366 degrees Fahrenheit
• Environmental Rating: Suitable for both indoor and outdoor applications

Technical Specifications

• Body Material: 316L Stainless Steel
• Orifice Diameter: 1/2 inch
• Max Pilot Pressure: 150 psi
• Stem Material: 431 Stainless Steel
• Disc Material: 304L Stainless Steel
• Overall Dimensions: Length: 2-9/16 inches, Width: 3-9/10 inches, Height: 3-7/8 inches
