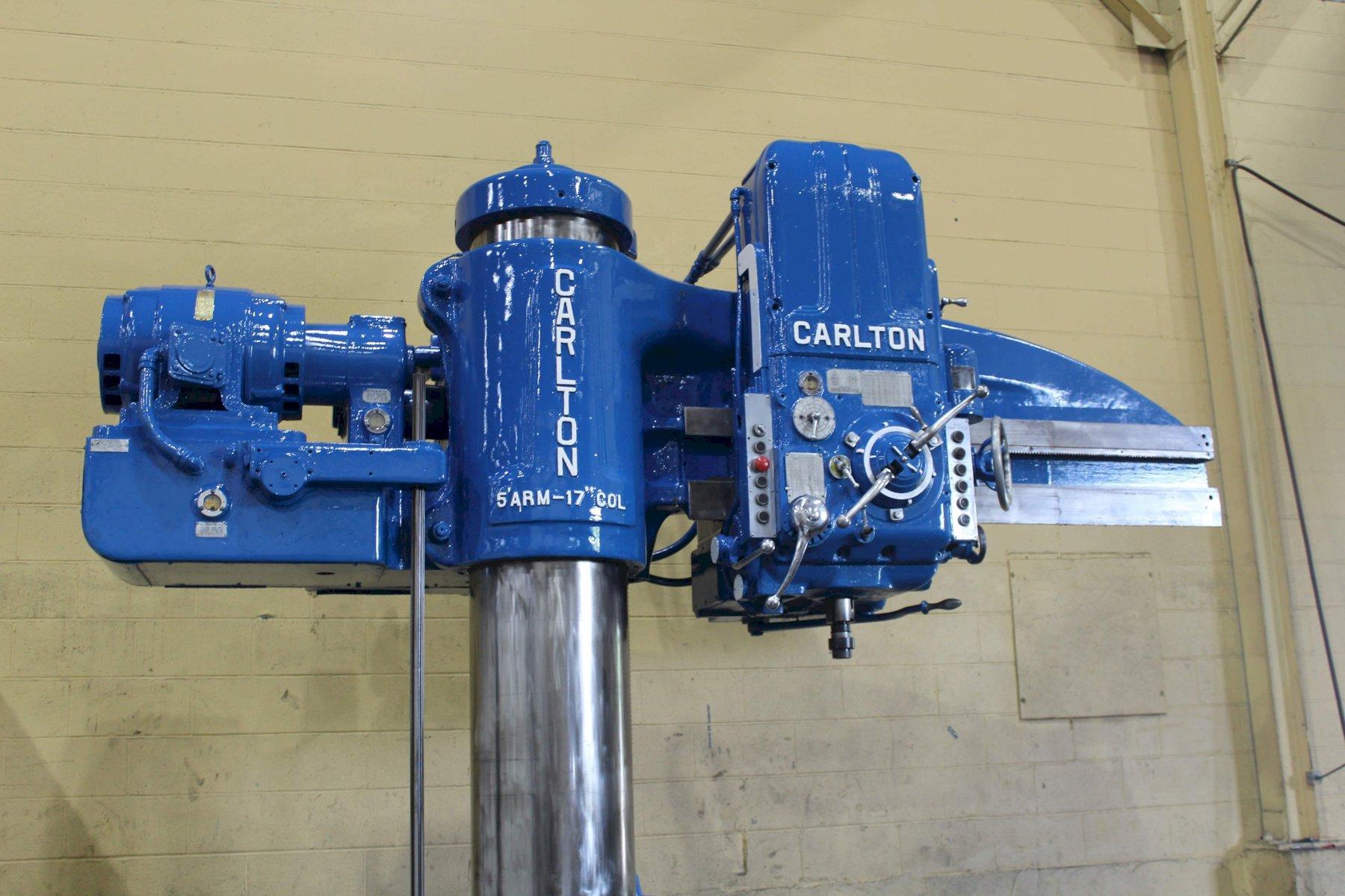

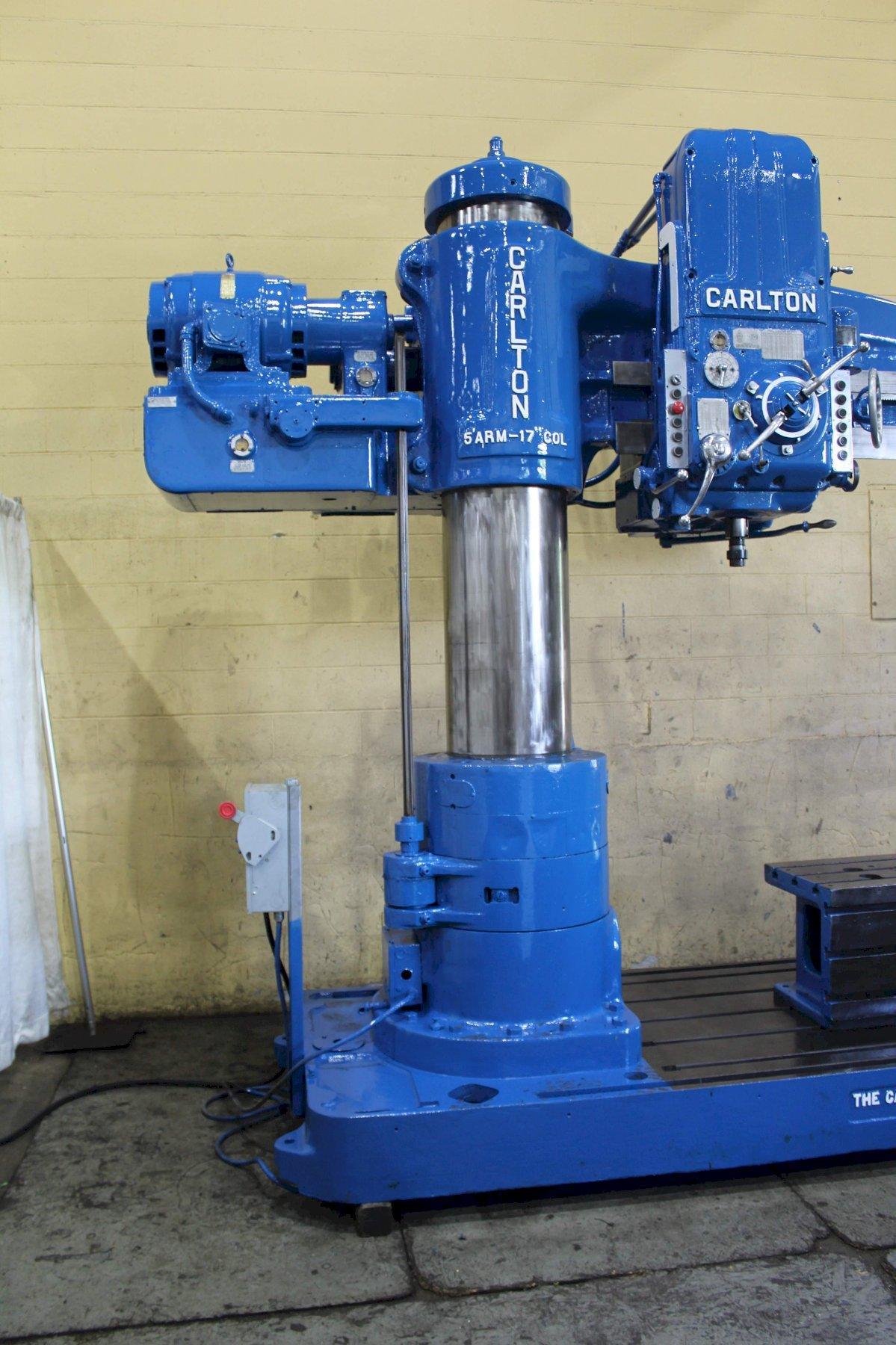

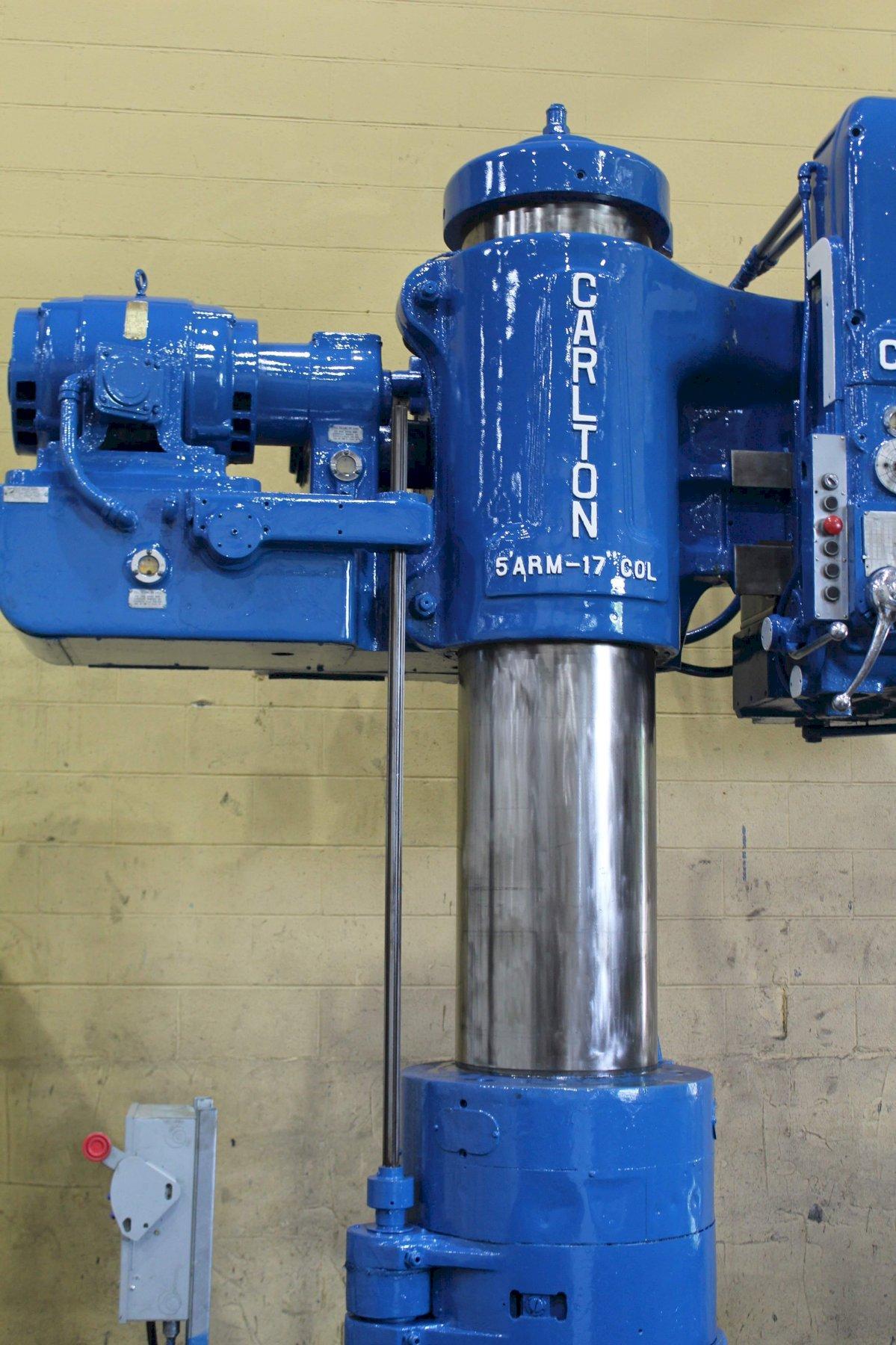

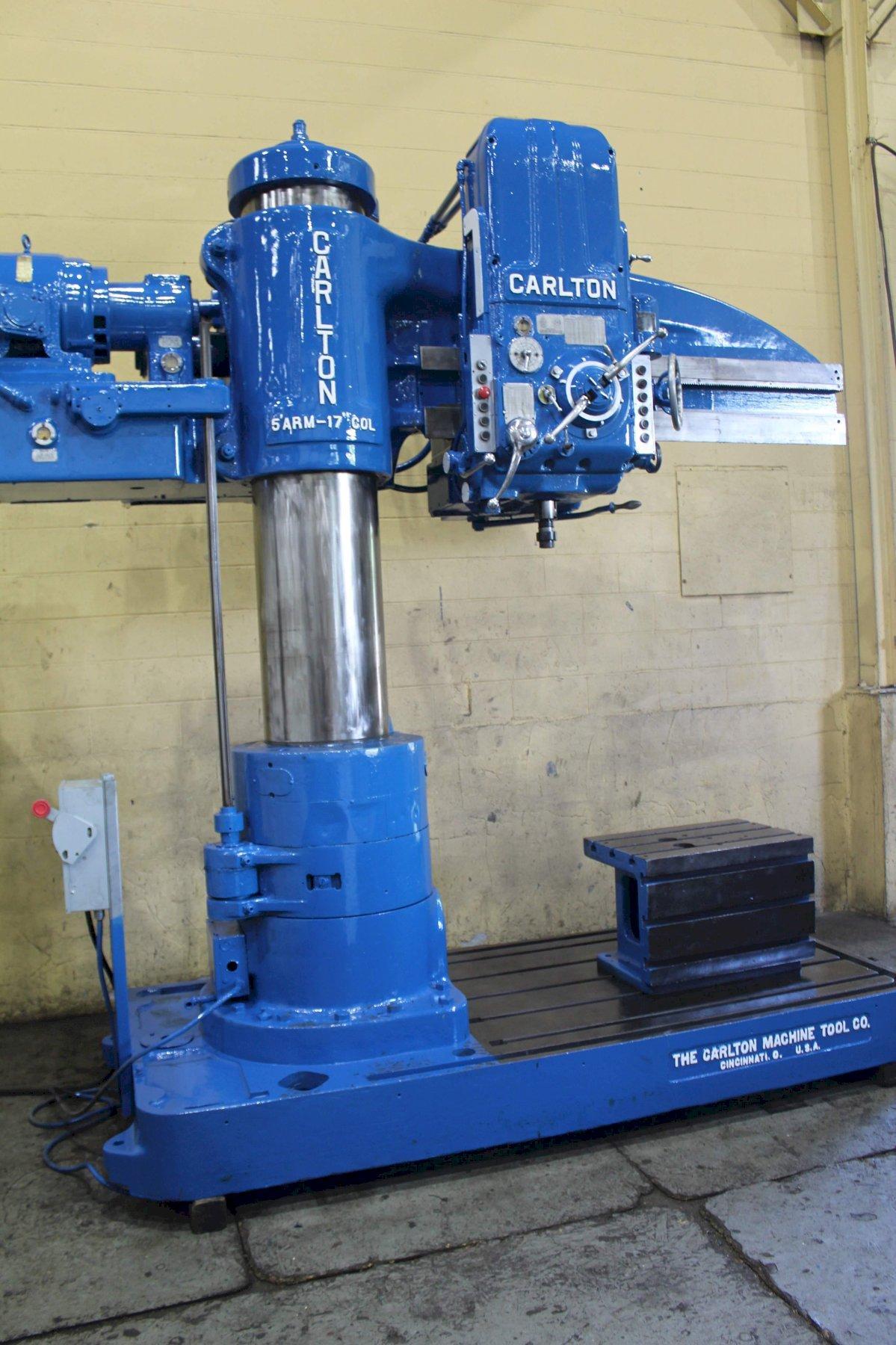

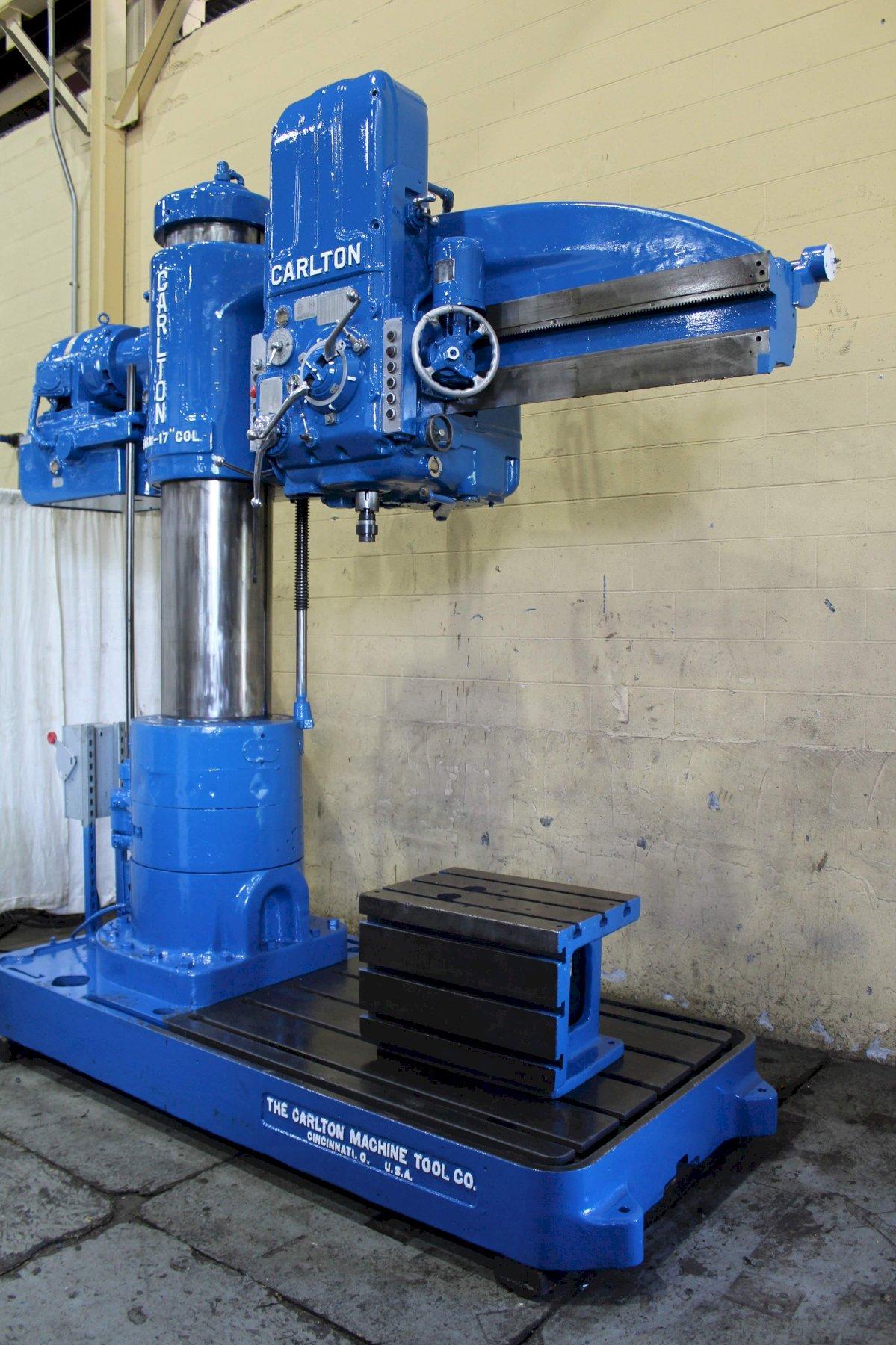

ASC ENGINEERING 71883 Carlton Radial Arm Drill - 5' x 17

Product Description

The ASC ENGINEERING 71883 is a Carlton radial arm drill designed for various drilling tasks. It features a five-foot arm paired with a seventeen-inch column, ideal for precision and versatility in operations.

• Spindle speeds adjustable from 12 to 1200 RPM.
• Equipped with power arm elevation and head traverse.
• Includes a sturdy box table measuring twenty-eight inches by twenty inches.

Product Highlights

This radial arm drill provides enhanced functionality for drilling needs in commercial settings. It is engineered to handle various materials and ensure accurate results.

Product Information

Standard Information

• Manufacturer: ASC ENGINEERING
• MPN: 71883

Technical Specifications

• Spindle Speeds: 12 to 1200 RPM
• Feeds: 0.004 to 0.125 IPR
• Threads: 8, 11-1/2, 14, 18
• Spindle Diameter: 3-3/16 inches
• Spindle Taper: #5 MT
• Spindle Travel: 18 inches
• Distance Spindle to Column (Min): 13-3/4 inches
• Distance Spindle to Column (Max): 60 inches
• Distance Spindle to Base (Min): 16-7/8 inches
• Distance Spindle to Base (Max): 72 inches
• Arm Travel on Column: 37-1/8 inches
• Head Travel on Arm: 46-1/4 inches
• Power Arm Elevation: Yes
• Power Head Traverse: Yes
• Power Clamping: Yes
• Box Table: 28 x 20 x 20 inches high
• Spindle Drive Motor Horsepower: 15
• Base Area: 65 x 50 inches
