Asc Engineered Solutions 8700164059 Black Iron Floor Flange

Product Description

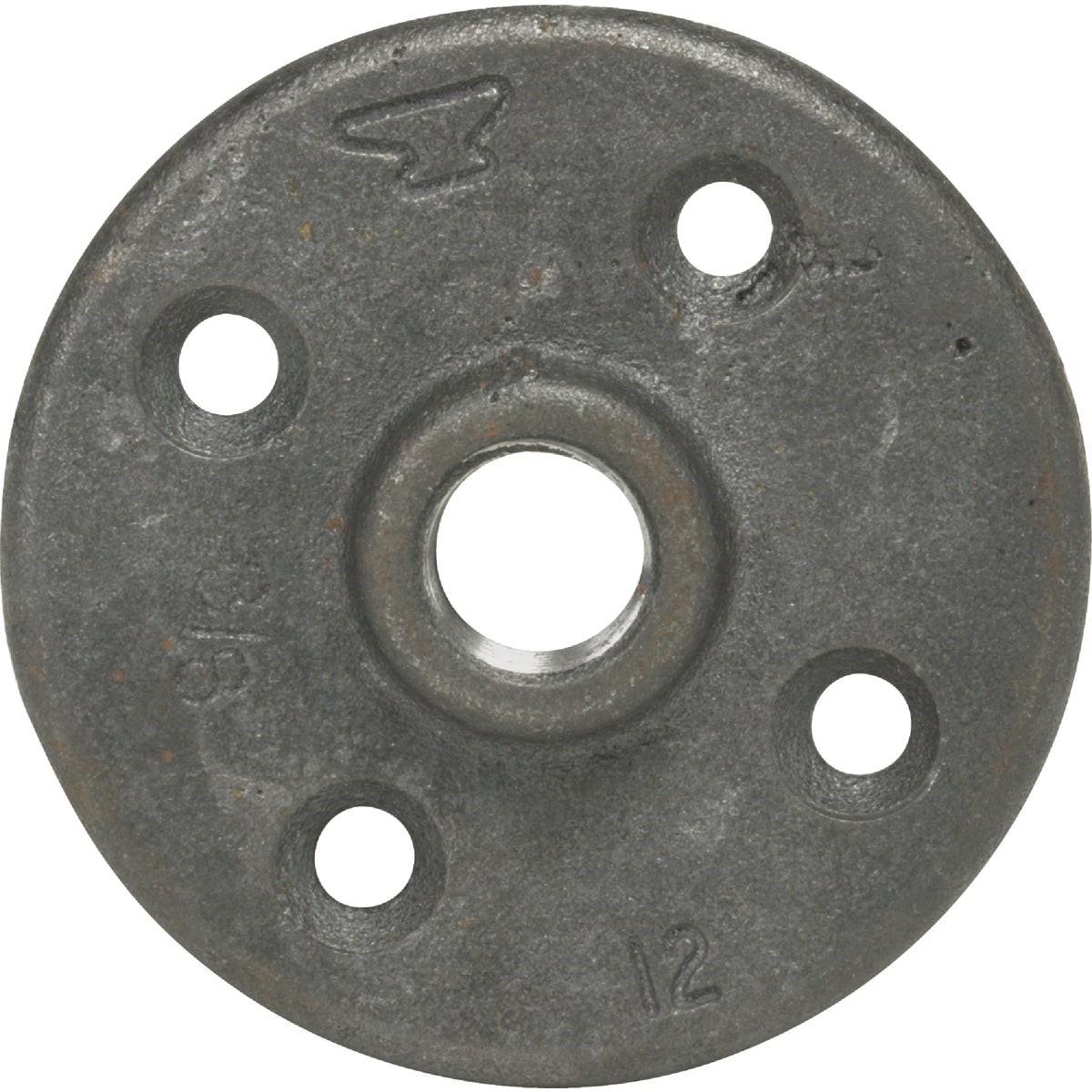

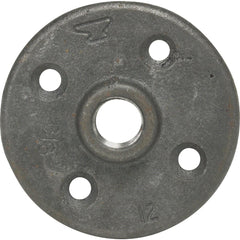

The ASC Engineered Solutions 8700164059 is a black iron floor flange designed to anchor pipe securely to a floor or wall surface. Constructed from malleable iron, this flange delivers superior tensile strength while resisting rust in demanding service environments. It accepts 1-1/2 inch pipe and features a 4-1/4 inch base diameter, providing a stable mounting footprint. Licensed plumbers and pipefitters install this flange as part of supply, drain, or structural pipe assemblies in both residential and light commercial applications.

This floor flange is suited for use in plumbing rough-in, structural pipe framing, and utility piping installations where a secure pipe-to-surface connection is required. The black iron finish makes it appropriate for gas piping systems and non-corrosive water supply lines where black iron pipe is the specified material. It is sold individually and is compatible with standard threaded malleable iron pipe fittings.

Key Features

• Malleable iron construction provides high tensile strength and impact resistance
• Black iron finish suitable for gas and standard pipe applications
• 1-1/2 inch pipe thread inlet for secure pipe engagement
• 4-1/4 inch base diameter for stable floor or wall mounting
• Rust-resistant material extends service life in utility environments

Compatibility

Designed as an OEM-style replacement or new-install fitting for standard 1-1/2 inch black iron threaded pipe systems in residential and commercial plumbing and gas piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC or IFGC code requirements. Shut off the gas or water supply and depressurize the line before threading the flange onto the pipe. Use pipe thread sealant or PTFE tape rated for the service medium when making threaded connections. Secure the base flange to the mounting surface with appropriate fasteners through the bolt holes provided.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Base Diameter: 4-1/4 inches
• Material: Malleable iron
• Finish: Black iron
• Weight: 1.2 pounds
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700164059
