Asc Engineered Solutions 8700164000 Black Iron Floor Flange

Product Description

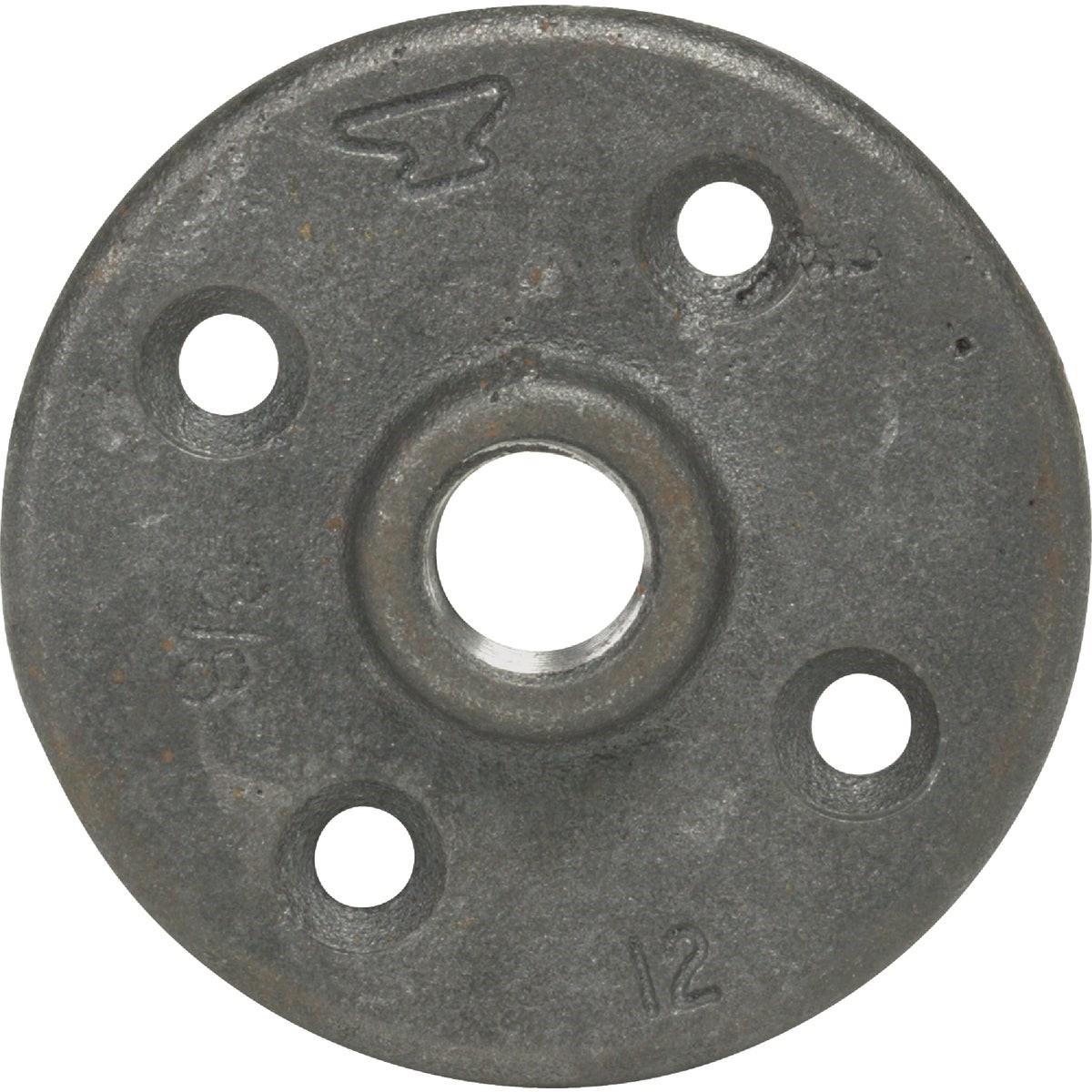

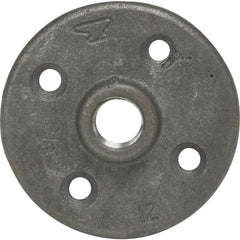

The ASC Engineered Solutions 8700164000 is a black iron floor flange designed to anchor pipe securely to a floor or wall surface. Constructed from malleable iron, this fitting provides high tensile strength and resists rust under normal service conditions. The flange accepts 1-1/4 inch nominal pipe and features a 3-5/8 inch base diameter with bolt holes for solid, permanent mounting. Plumbers and pipefitters use this fitting in both new construction and retrofit applications wherever a pipe run must be terminated and fastened at a structural surface.

This floor flange is suited for residential and light commercial plumbing, gas distribution, and pipe support systems. It is a standard threaded fitting that mates with 1-1/4 inch NPT pipe. Typical installations include supply line terminations, handrail post bases, and pipe anchor points at floor or wall penetrations. The black iron finish makes it appropriate for use in gas line systems where a black iron material is required by code.

Key Features

• Malleable iron construction provides superior tensile strength compared to cast iron
• Rust-resistant black iron finish suitable for gas and plumbing service
• 1-1/4 inch NPT threaded center opening for standard pipe connection
• 3-5/8 inch base diameter with bolt-hole pattern for secure surface mounting
• Sold individually for single-point replacement or new installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/4 inch nominal black iron pipe systems in residential and commercial plumbing or gas distribution applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes. Shut off the gas or water supply and depressurize the line before threading the flange onto the pipe. Use appropriate thread sealant or pipe tape rated for the service medium before making the threaded connection. Fasten the base flange to the mounting surface using fasteners appropriate for the substrate material.

Technical Specifications

• Pipe Size: 1-1/4 inches nominal
• Base Diameter: 3-5/8 inches
• Material: Malleable iron
• Finish: Black iron
• Weight: 0.9 pounds
• Unit of Measure: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700164000
