Asc Engineered Solutions 8700163952 Black Iron Floor Flange

Product Description

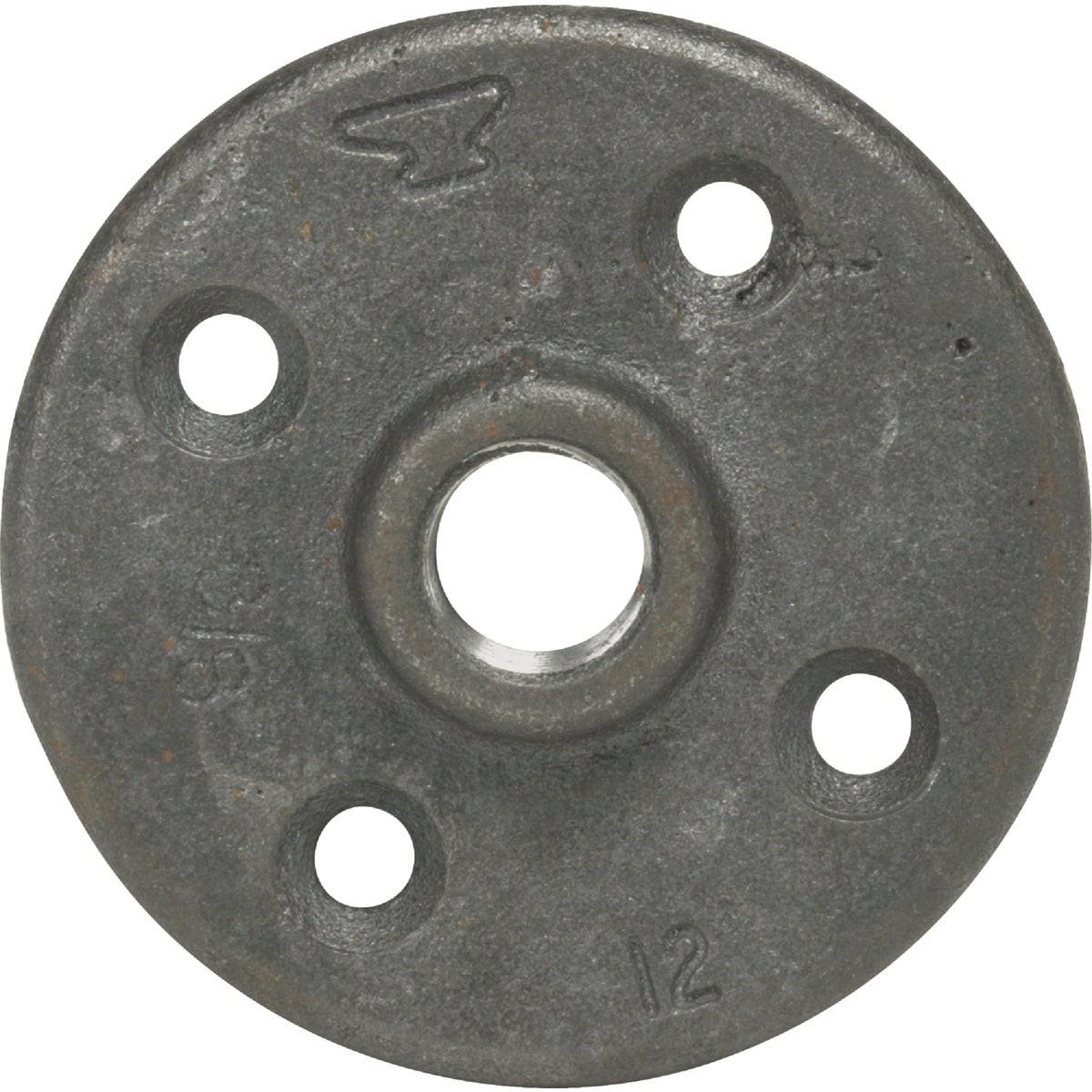

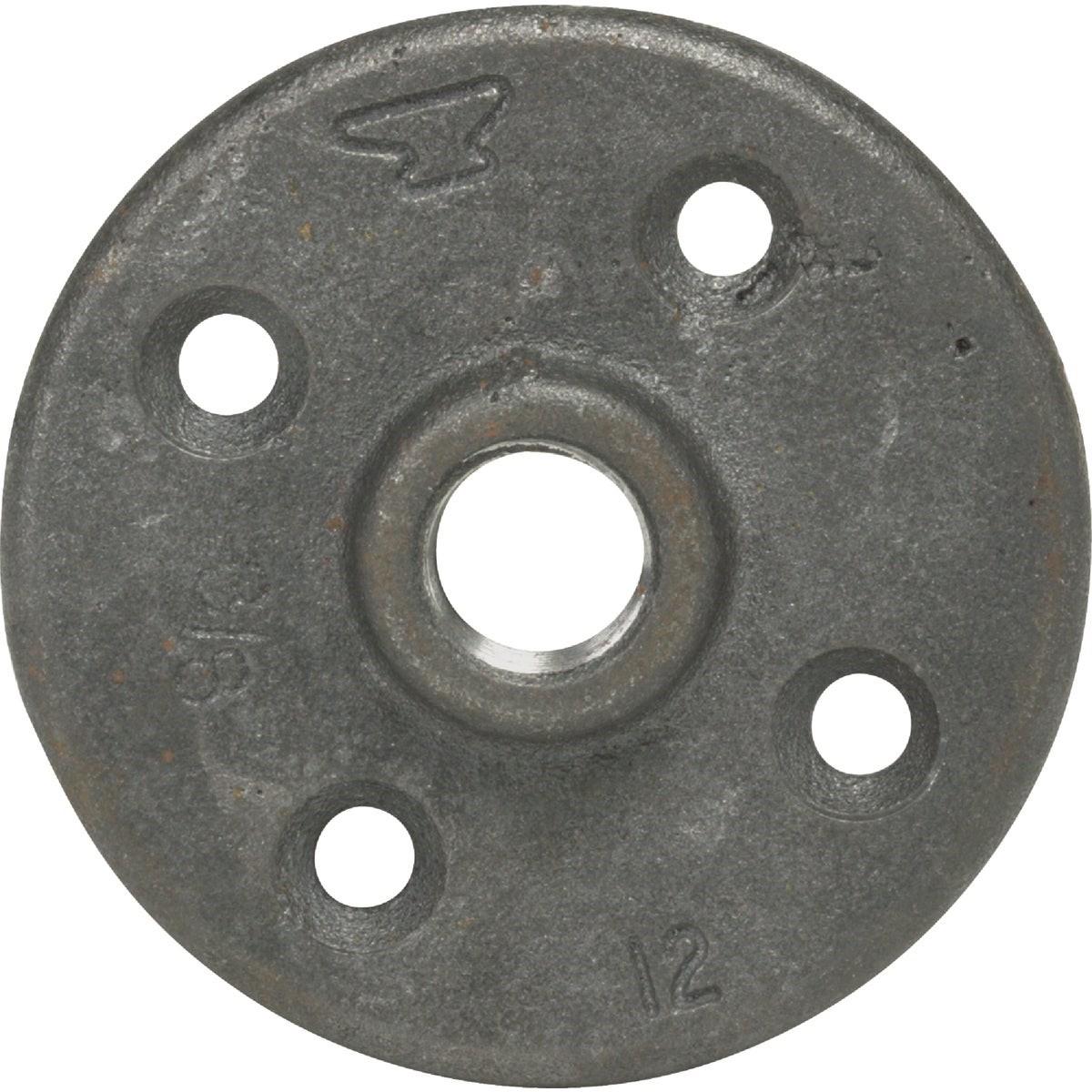

The ASC Engineered Solutions 8700163952 is a black iron floor flange designed to anchor pipe securely to a floor or wall surface. Manufactured from malleable iron, this flange delivers reliable tensile strength and resistance to rust in demanding plumbing and mechanical installations. The fitting accepts 1-inch pipe and mounts through a 3-5/8-inch base plate, making it a standard choice for threaded iron pipe systems. Licensed plumbers and pipefitters install this type of flange during rough-in work, railing fabrication, and pipe support applications across both residential and light commercial projects.

This floor flange is suited for use with Schedule 40 black iron threaded pipe in water supply, gas distribution, and structural pipe applications where the pipe must be terminated and secured at a fixed surface. The 1-inch thread size and flat-base mounting profile make it compatible with standard threaded iron pipe assemblies in a wide range of installation scenarios. It is commonly used in residential and commercial plumbing, industrial pipe runs, and decorative pipe rail systems where a surface-mounted anchor point is required.

Key Features

• Malleable iron construction provides superior tensile strength over standard cast iron fittings
• Black iron finish resists rust and suits dry or protected interior installations
• 1-inch female threaded inlet accepts standard Schedule 40 threaded pipe
• 3-5/8-inch base diameter provides stable surface-mount footprint with multiple bolt holes
• Sold individually — one flange per unit

Compatibility

Designed as an OEM-style replacement or standard-use fitting for 1-inch threaded black iron pipe systems in residential and commercial plumbing, gas, and mechanical piping installations.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and IFGC guidelines where gas service is involved. Shut off the relevant water or gas supply and depressurize the line before threading and seating the flange. Use a pipe wrench and thread sealant appropriate for the service type when making threaded connections. Secure the base plate to the mounting surface using fasteners rated for the substrate material and load requirements.

Technical Specifications

• Pipe Size: 1 inch
• Base Diameter: 3-5/8 inches
• Material: Malleable iron
• Finish: Black iron
• Weight: 0.79 pounds
• Sold As: Each
• UPC: 00690291026485

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700163952
