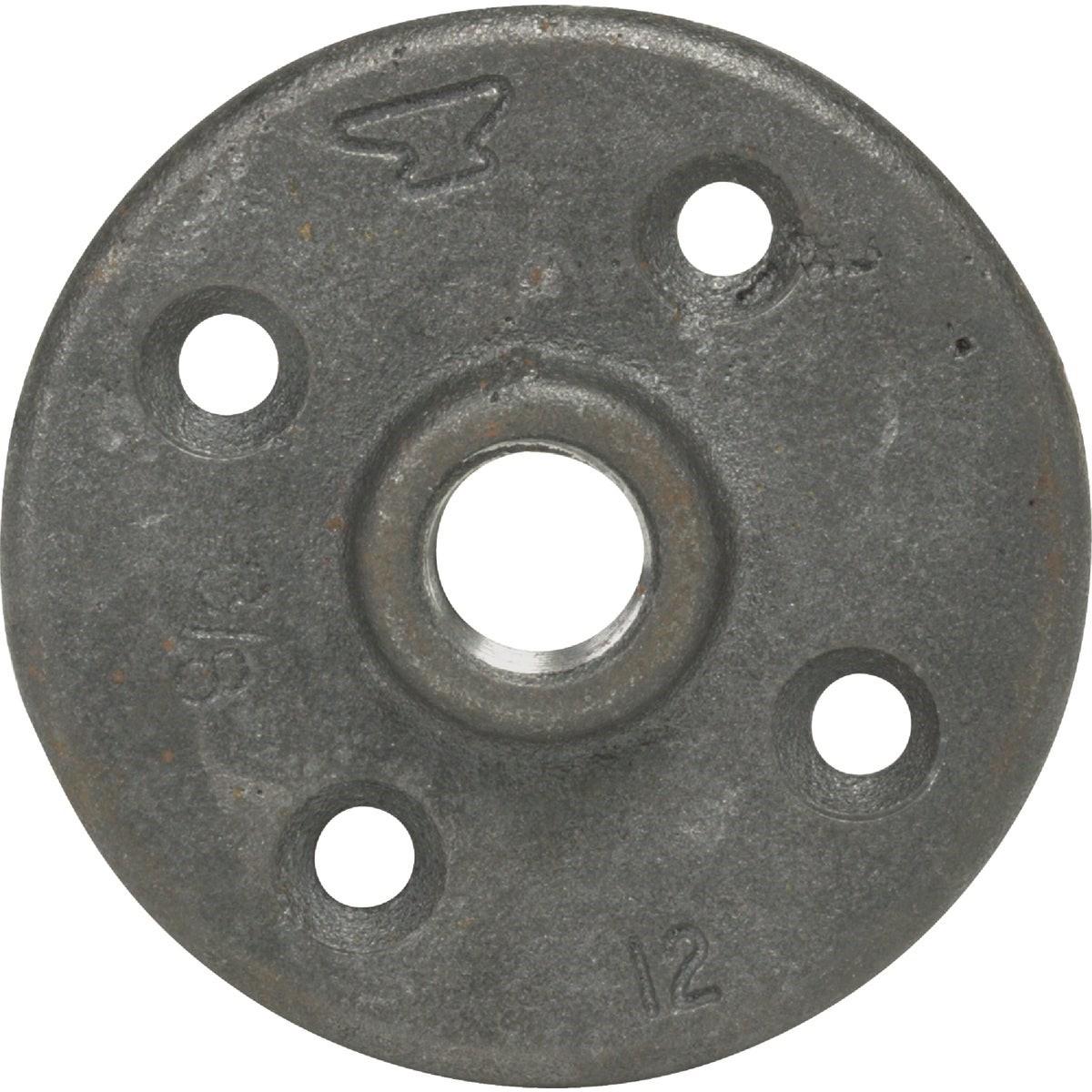

Asc Engineered Solutions 8700163804 Black Iron Floor Flange

Product Description

The ASC Engineered Solutions 8700163804 is a black iron floor flange designed to anchor pipe securely to a floor or wall surface. Built from malleable iron, this fitting offers strong tensile strength and resistance to rust, making it a reliable choice for both plumbing and structural pipe applications. The flange measures 0.375 inches in pipe thread size with an overall diameter of 2.5 inches and is sold individually. Plumbers and pipefitters install this fitting where a threaded pipe must be terminated and fastened at a floor or wall plane.

This floor flange suits residential and light commercial plumbing, gas, and structural black iron pipe systems where a secure pipe terminus is required at a floor or wall. It is commonly used with Schedule 40 black iron pipe in applications such as gas supply drops, industrial-style furniture frames, and pipe railing systems. The malleable iron construction handles standard working pressures typical of residential pipe systems.

Key Features

• Malleable iron construction provides superior tensile strength over standard cast iron
• Black iron finish with inherent rust resistance for dry and low-moisture environments
• 0.375-inch female threaded inlet accepts standard NPT pipe
• 2.5-inch flange face provides a stable mounting footprint for floor or wall attachment
• Sold as individual unit, compatible with standard bolt patterns

Compatibility

Designed as an OEM-style replacement and standard fitting for black iron threaded pipe systems using 0.375-inch NPT connections in residential and light commercial plumbing and gas piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IFGC requirements where gas piping is involved. Shut off all fluid or gas supply and depressurize the line before threading this flange onto the pipe. Use appropriate thread sealant or PTFE tape rated for the intended service when making up threaded connections. Do not overtighten the threaded connection, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Pipe Thread Size: 0.375 inches
• Flange Diameter: 2.5 inches
• Material: Malleable Iron
• Finish: Black Iron
• Weight: 0.36 pounds
• Unit of Measure: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700163804
