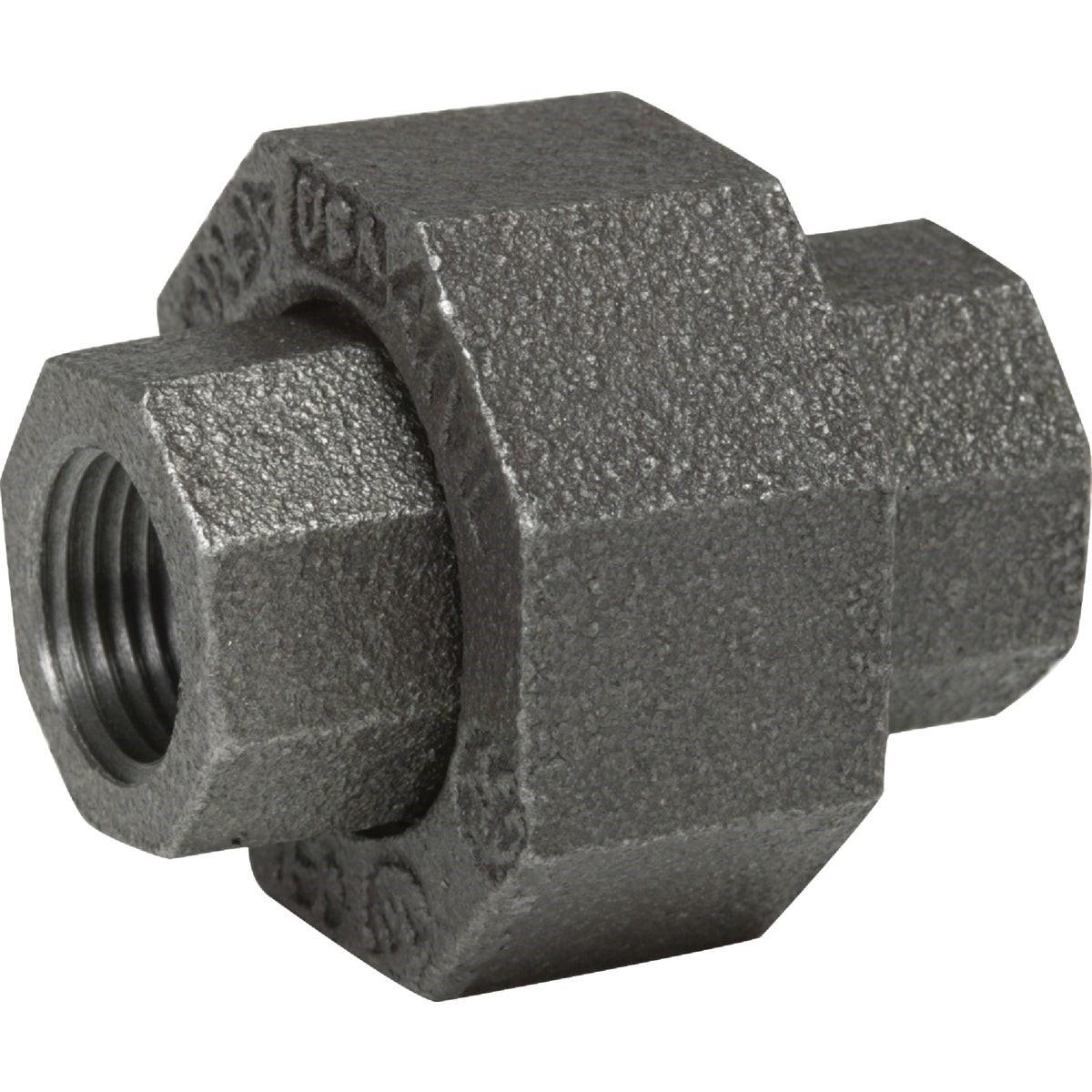

Asc Engineered Solutions 8700162905 Black Iron Union 3/8 in

Product Description

The ASC ENGINEERED SOLUTIONS 8700162905 is a 3/8 inch ground joint malleable black iron union designed for joining and disconnecting threaded pipe runs without disturbing adjacent piping. The black iron finish provides baseline corrosion resistance in dry or low-moisture environments. National Pipe Threads (NPT) on both ends create tapered, pressure-assisted seals tighter than straight-thread connections. This Class 150 union is built to ANSI B-16.39 dimensional and performance standards and is a standard fitting for licensed plumbers and pipefitters working on gas, steam, or water distribution systems.

This union is suited for residential and light commercial piping applications where a serviceable break point is needed in a threaded black iron pipe system. Typical installations include gas supply lines, low-pressure steam systems, and general plumbing distribution. The ground joint design allows the union to seat and seal without a separate gasket, making it a reliable choice for repeated service access points in mechanical rooms and utility spaces.

Key Features

• 3/8 inch NPT ground joint design seats without a separate gasket
• Malleable black iron construction provides ductility and impact resistance
• Black finish offers baseline rust resistance in dry service conditions
• Class 150 pressure rating per ANSI B-16.39
• Tapered NPT threads conform to ANSI B-2.1 for pressure-tight seals
• Meets Federal Specification WW-U-531C and ANSI B-16.14 dimensional standards

Compatibility

Designed as an OEM-style replacement fitting for 3/8 inch threaded black iron pipe systems conforming to ANSI B-16.14 and ANSI B-16.39 standards.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Fuel Gas Code (IFGC) or International Plumbing Code (IPC) where applicable. Shut off and depressurize the pipe system completely before disassembling or installing any union. Apply an approved pipe thread sealant or PTFE tape to the NPT threads before assembly; do not apply sealant to the ground joint mating faces. Hand-tighten first, then use a pipe wrench to bring the union nut to full engagement without over-stressing the fitting.

Technical Specifications

• Pipe Size: 3/8 inch
• Thread Type: NPT (National Pipe Thread, tapered)
• Joint Type: Ground joint
• Material: Malleable black iron
• Finish: Black
• Pressure Class: Class 150
• Weight: 0.42 pounds
• Standards: Fed. Spec. WW-U-531C, ANSI B-16.39, ANSI B-16.14, ANSI B-2.1, Fed. Spec. WW-P-471-B
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700162905
