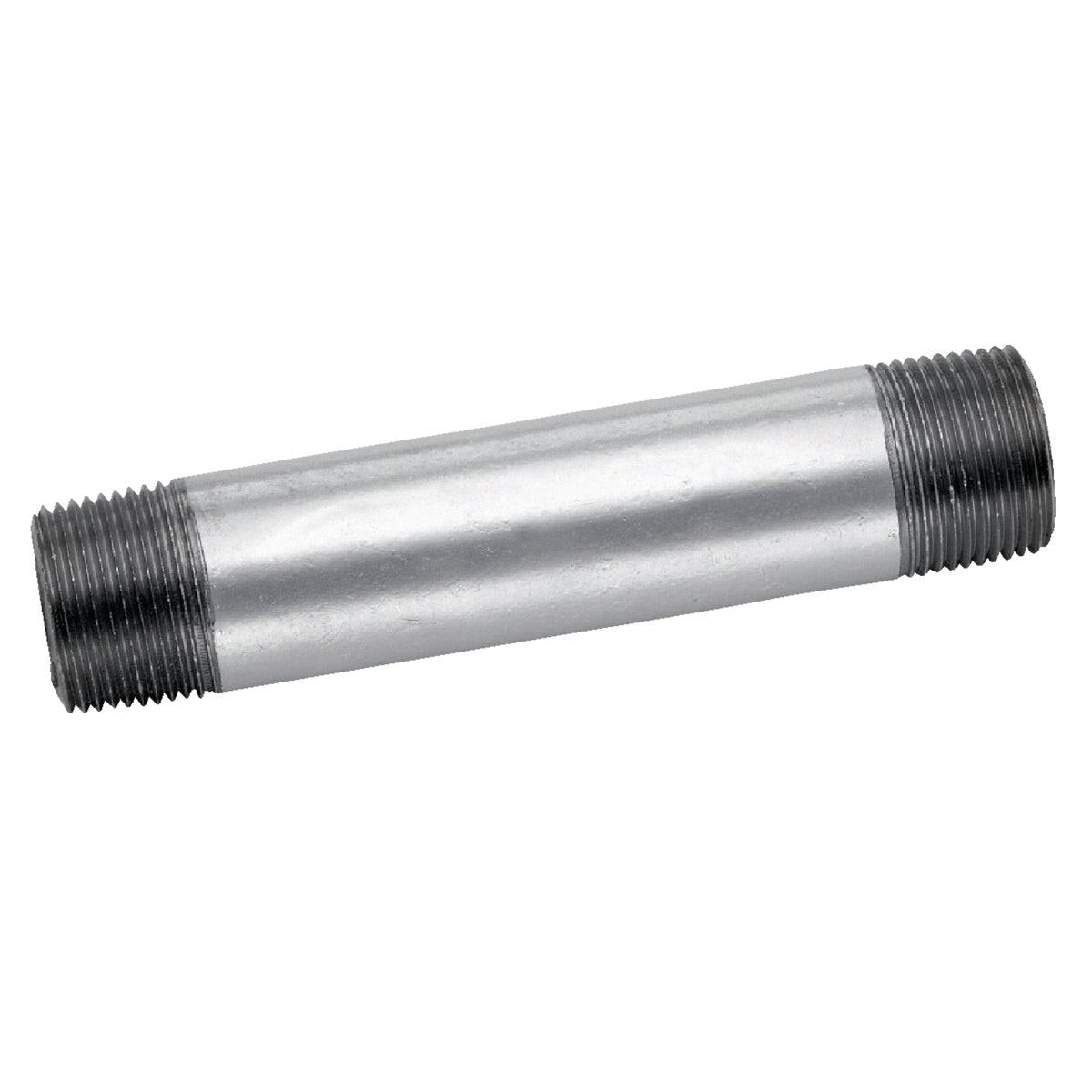

Asc Engineered Solutions 8700149159 Galvanized Pipe Nipple

Product Description

The ASC Engineered Solutions 8700149159 is a welded steel pipe nipple designed for use in standard threaded pipe assemblies. Manufactured to Schedule 40 dimensions, this nipple measures 1/2 inch in diameter and 2 inches in length. The hot-dip galvanized finish meets ASTM A53 standards, providing corrosion resistance for both indoor and outdoor installations. Lead content on wetted surfaces is controlled to no more than 0.25% weighted average, supporting compliance in potable water systems. Plumbers and pipefitters install this fitting as part of threaded iron pipe systems in commercial and residential applications.

This nipple is suited for threaded pipe systems where a short close-to-close or face-to-face connection is needed between two fittings or valves. Common applications include water distribution, low-pressure steam lines, compressed air, and general plumbing rough-in work. The galvanized coating makes it appropriate for wet or damp environments where bare steel would be vulnerable to rust. It is sold as an individual unit and is compatible with standard 1/2 inch NPT threaded fittings and pipe.

Key Features

• Hot-dip galvanized finish meets ASTM A53 standards for corrosion resistance
• Schedule 40 wall thickness for standard-pressure threaded pipe systems
• Welded steel construction for consistent dimensional integrity
• Lead content limited to 0.25% weighted average on wetted surfaces for potable water compliance
• 1/2 inch NPT threading on both ends for use with standard fittings

Compatibility

Designed as an OEM-style replacement or standard component for 1/2 inch NPT threaded iron pipe systems using Schedule 40 galvanized pipe and fittings.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and local plumbing code requirements. Shut off the water supply and depressurize the line before removing or installing threaded nipples. Apply an approved thread sealant or PTFE tape to male threads before making up the joint. Do not over-tighten threaded connections, as this can crack cast fittings or distort threads.

Technical Specifications

• Material: Welded Steel, Hot-Dip Galvanized
• Pipe Size: 1/2 inch
• Length: 2 inches
• Schedule: 40
• Standard: ASTM A53
• Max Lead Content (Wetted Surfaces): 0.25% weighted average
• Weight: 0.116 pounds
• UPC: 00690291046766

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700149159
