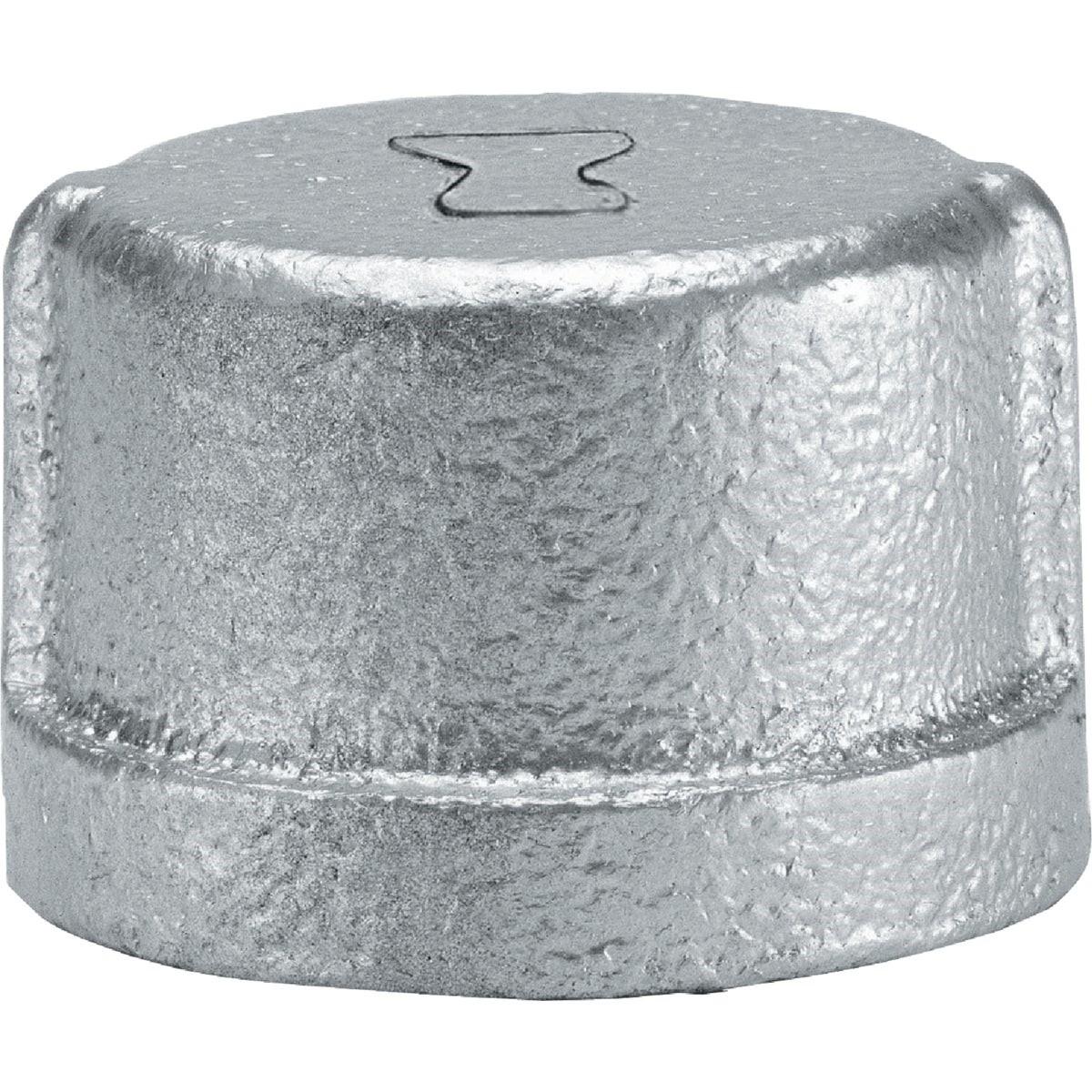

Asc Engineered Solutions 8700132809 Galvanized Pipe Cap

Product Description

The ASC Engineered Solutions 8700132809 is a 1-1/4 inch malleable iron galvanized pipe cap designed to terminate threaded pipe runs in plumbing, HVAC, and industrial piping systems. Malleable iron construction provides the ductility needed to withstand mechanical stress and vibration without cracking, while the hot-dip galvanized finish delivers corrosion resistance for both indoor and outdoor installations. This cap threads directly onto male-threaded pipe ends to close off a line, cap a test port, or seal an unused branch. Installation is performed by licensed plumbers and pipefitters working on ferrous piping systems.

This pipe cap is suited for residential and commercial applications where a code-compliant, durable termination fitting is required. Typical uses include capping gas, water, and steam lines during pressure testing, system modifications, or permanent service terminations. The galvanized coating makes it appropriate for wet or corrosive environments. It meets Federal Specification WW-P-521F and complies with ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, ASTM A-197 for chemical and physical properties, and ASTM A-153 for galvanizing standards.

Key Features

• Malleable iron construction resists cracking under mechanical stress and vibration
• Hot-dip galvanized finish per ASTM A-153 for corrosion protection
• 1-1/4 inch threaded connection conforms to ANSI B-2.1 pipe thread standards
• Dimensions conform to ANSI B-16.3 for consistent fitment with standard fittings
• Meets Federal Specification WW-P-521F for standard malleable iron fittings
• Sold individually, no minimum order beyond one piece required

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1-1/4 inch NPT threaded ferrous pipe systems in plumbing, HVAC, and industrial piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC or IFGC requirements. Depressurize and isolate the pipe section before threading on the cap, and apply appropriate thread sealant or PTFE tape to the male threads prior to assembly. Hand-tighten first, then wrench-tighten to achieve a leak-free seal without over-stressing the fitting. Pressure-test the assembly per local code requirements after installation.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized (ASTM A-153)
• Pipe Size: 1-1/4 inches
• Thread Standard: ANSI B-2.1 NPT
• Dimension Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 0.61 pounds
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700132809
