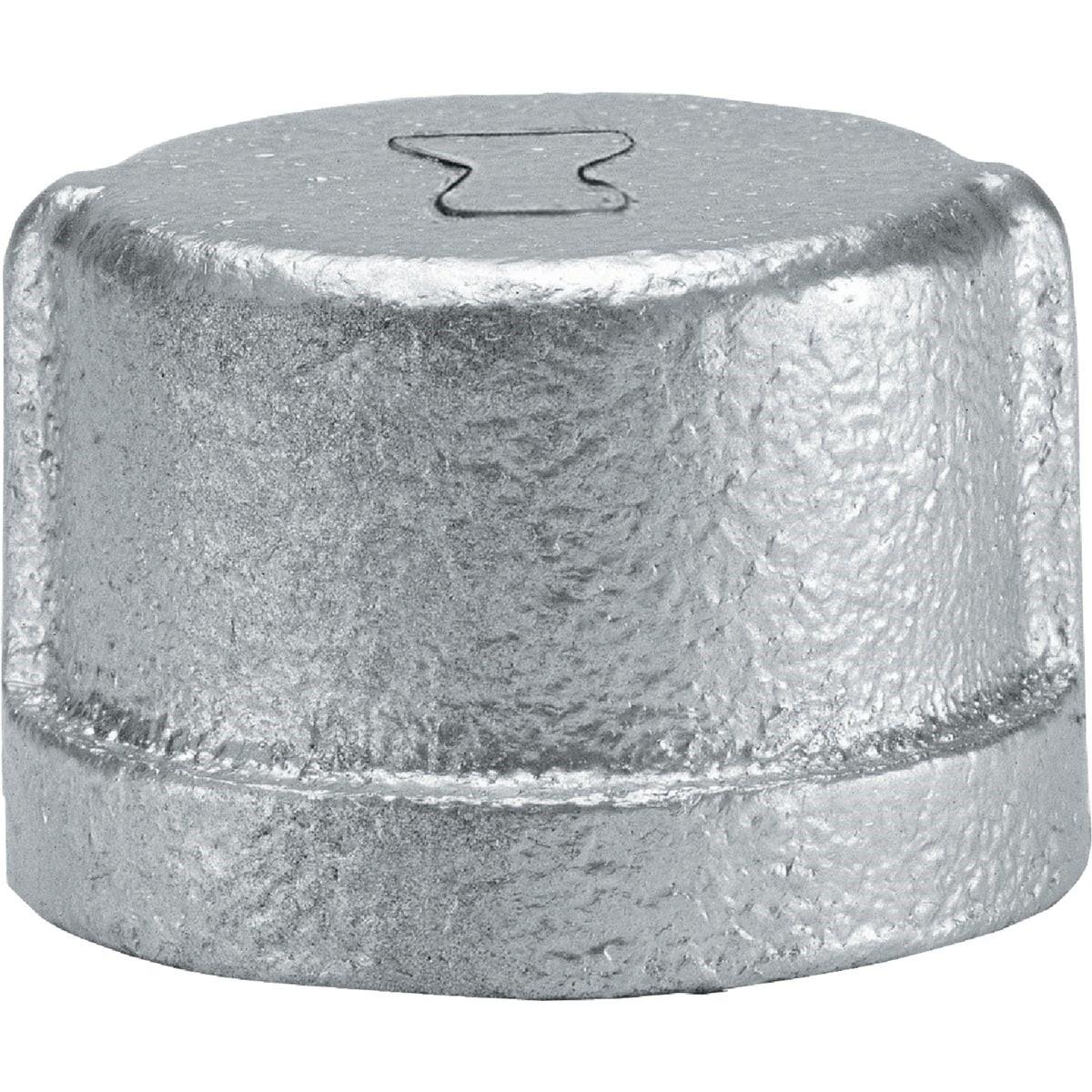

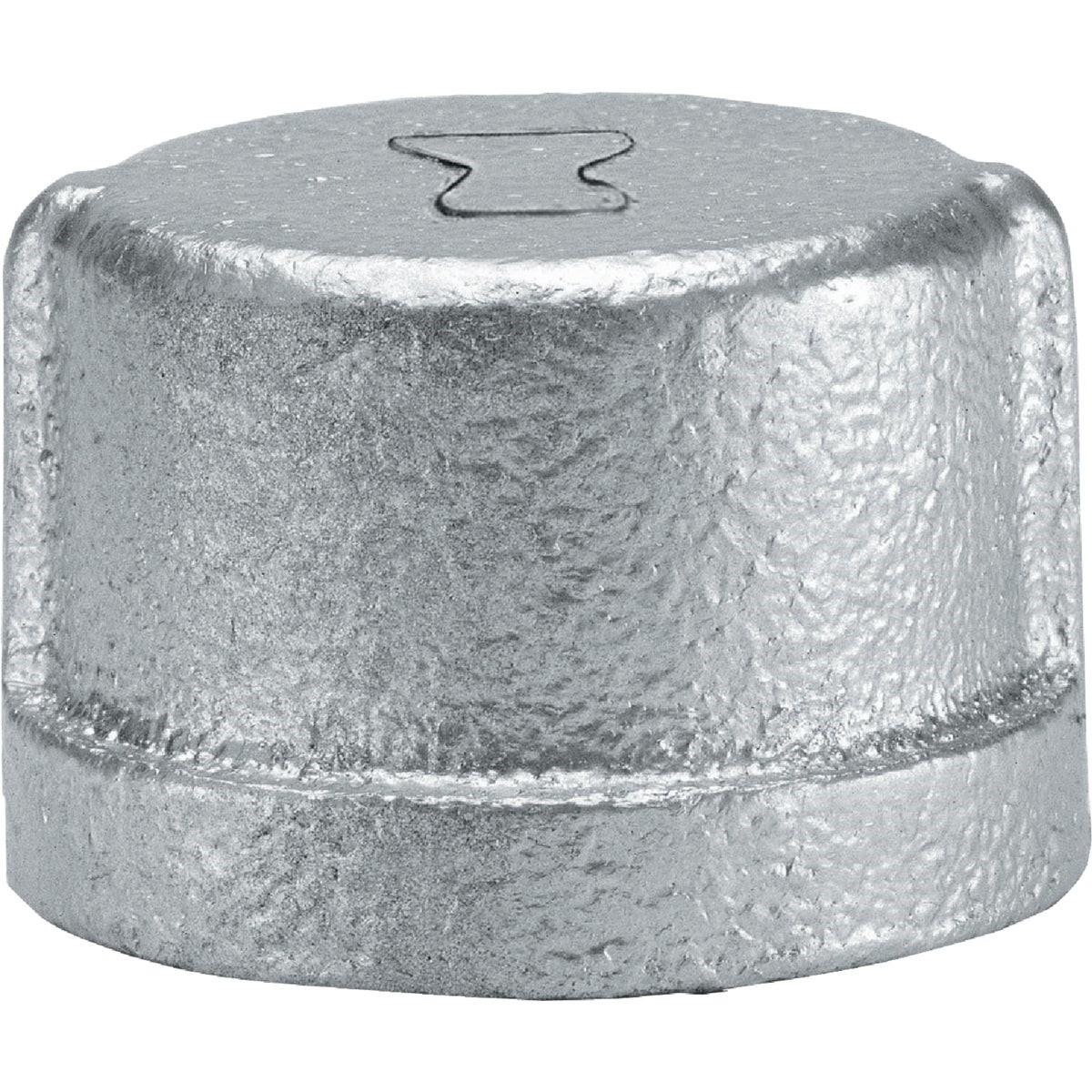

Asc Engineered Solutions 8700132700 Galvanized Pipe Cap 3/4 in

Product Description

The ASC Engineered Solutions 8700132700 is a 3/4 inch malleable iron galvanized pipe cap used to close off the end of a threaded pipe run. Manufactured from malleable iron with a hot-dip galvanized finish per ASTM A-153, this cap resists corrosion in wet and outdoor service environments. It meets ANSI B-16.3 dimensional standards and ANSI B-2.1 pipe thread specifications, making it a code-compliant choice for plumbing, HVAC piping, fire protection, and general mechanical systems. Plumbers, pipefitters, and mechanical contractors install this fitting as part of new construction or retrofit piping work.

This pipe cap is suited for 3/4 inch threaded pipe installations in residential and commercial mechanical systems. It is commonly used to terminate low-pressure gas, water, steam, or air lines during system testing, phased construction, or permanent cap-off applications. The galvanized finish makes it appropriate for exposed or damp locations where bare iron fittings would be prone to rust.

Key Features

• Malleable iron construction per ASTM A-197 for chemical and physical property compliance
• Hot-dip galvanized finish per ASTM A-153 for corrosion resistance
• Threaded to ANSI B-2.1 pipe thread standard for reliable, leak-resistant engagement
• Dimensional compliance with ANSI B-16.3 for consistent fit across standard fittings
• Lightweight at 0.2 pounds per unit
• Sold individually, minimum order quantity of one

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch NPT threaded pipe systems in standard malleable iron piping configurations.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. De-pressurize and drain the pipe system completely before threading on the cap. Apply an approved pipe thread sealant or PTFE tape to the male threads before installation. Follow applicable codes including IPC and IFGC for piping system terminations and pressure testing requirements.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Pipe Size: 3/4 inch
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Galvanizing Standard: ASTM A-153
• Federal Specification: WW-P-521F
• Weight: 0.2 pounds
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700132700
