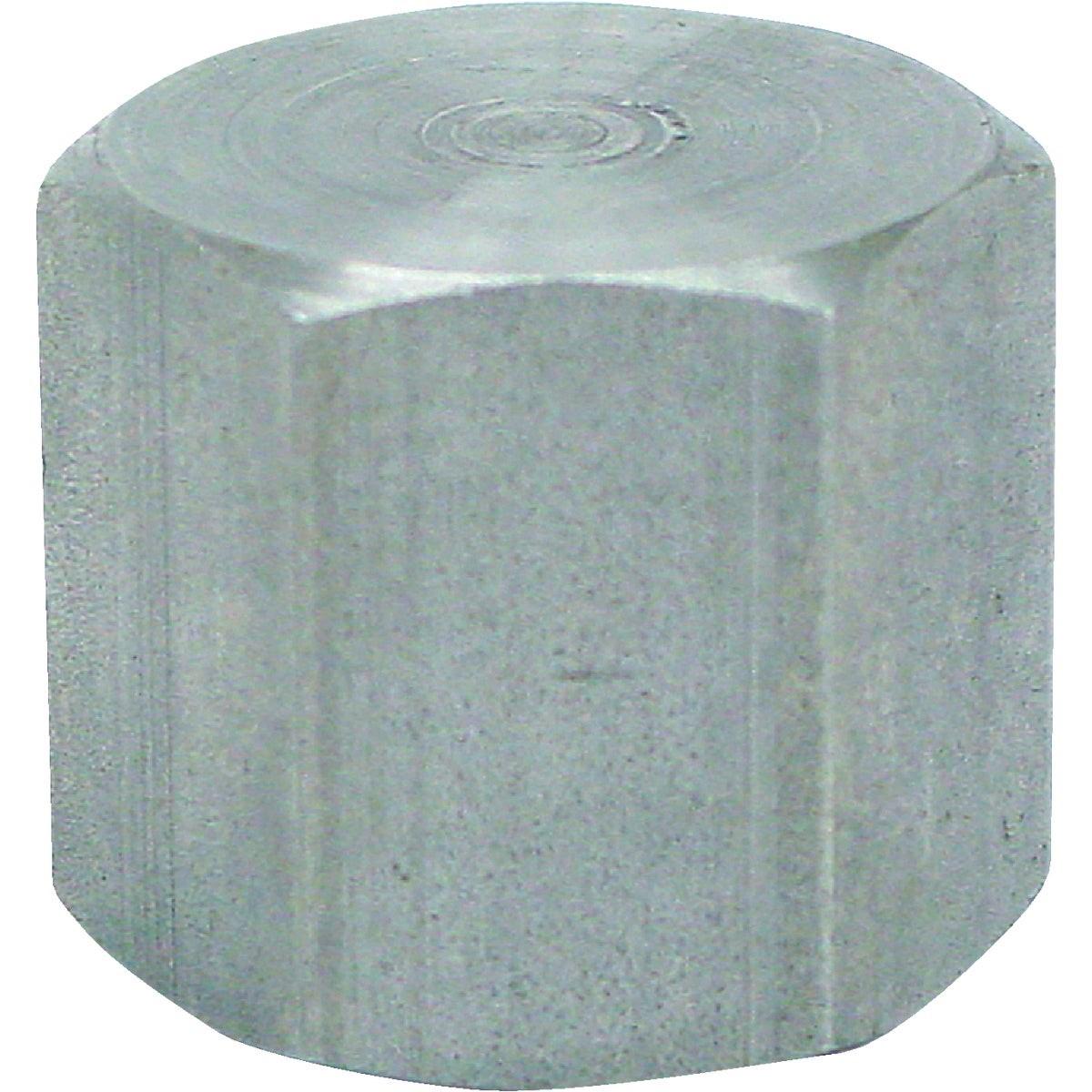

Asc Engineered Solutions 8700132551 Pipe Cap 1/4 in

Product Description

The ASC Engineered Solutions 8700132551 is a 1/4 inch malleable iron galvanized pipe cap designed to terminate threaded pipe ends in plumbing, mechanical, and light industrial piping systems. Manufactured from malleable iron with a hot-dip galvanized finish per ASTM A-153, this cap resists corrosion in wet and exposed environments. It conforms to ANSI B-16.3 dimensional standards and ANSI B-2.1 pipe thread specifications, ensuring reliable make-up with standard NPT-threaded pipe. Licensed plumbers and pipefitters install this fitting during system assembly, pressure testing, and permanent pipe terminations.

This cap is suited for residential and light commercial plumbing and mechanical piping applications where a threaded pipe end requires a secure, leak-resistant closure. The galvanized finish makes it appropriate for installations exposed to moisture or moderate corrosive conditions. It ships in a minimum quantity of 8 units per order, making it practical for stocking service vehicles or supply rooms handling routine pipe work.

Key Features

• Malleable iron construction meets ASTM A-197 chemical and physical property requirements
• Hot-dip galvanized finish complies with ASTM A-153 for corrosion resistance
• Dimensions conform to ANSI B-16.3 and ferrous fitting standard ANSI B-16.4
• Thread form per ANSI B-2.1 for standard NPT pipe thread compatibility
• Meets Federal Specification WW-P-521F and WW-P-471-B requirements
• Lightweight at 0.04 pounds per fitting

Compatibility

Designed as an OEM-style replacement and standard-stock pipe cap for 1/4 inch NPT threaded pipe systems in residential and commercial plumbing and mechanical piping applications.

Installation Notes

This fitting is installed by licensed plumbers or pipefitters in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and depressurize the pipe system before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to the male threads before making up the joint. Hand-tighten first, then wrench-tighten to avoid over-stressing the fitting body.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized (ASTM A-153)
• Pipe Thread Size: 1/4 inch NPT
• Weight: 0.04 pounds
• Dimensional Standard: ANSI B-16.3 / ANSI B-16.4
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F / WW-P-471-B
• UPC: 00690291037245
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700132551
