Asc Engineered Solutions 8700132502 Galvanized Pipe Cap 1/8 in

Product Description

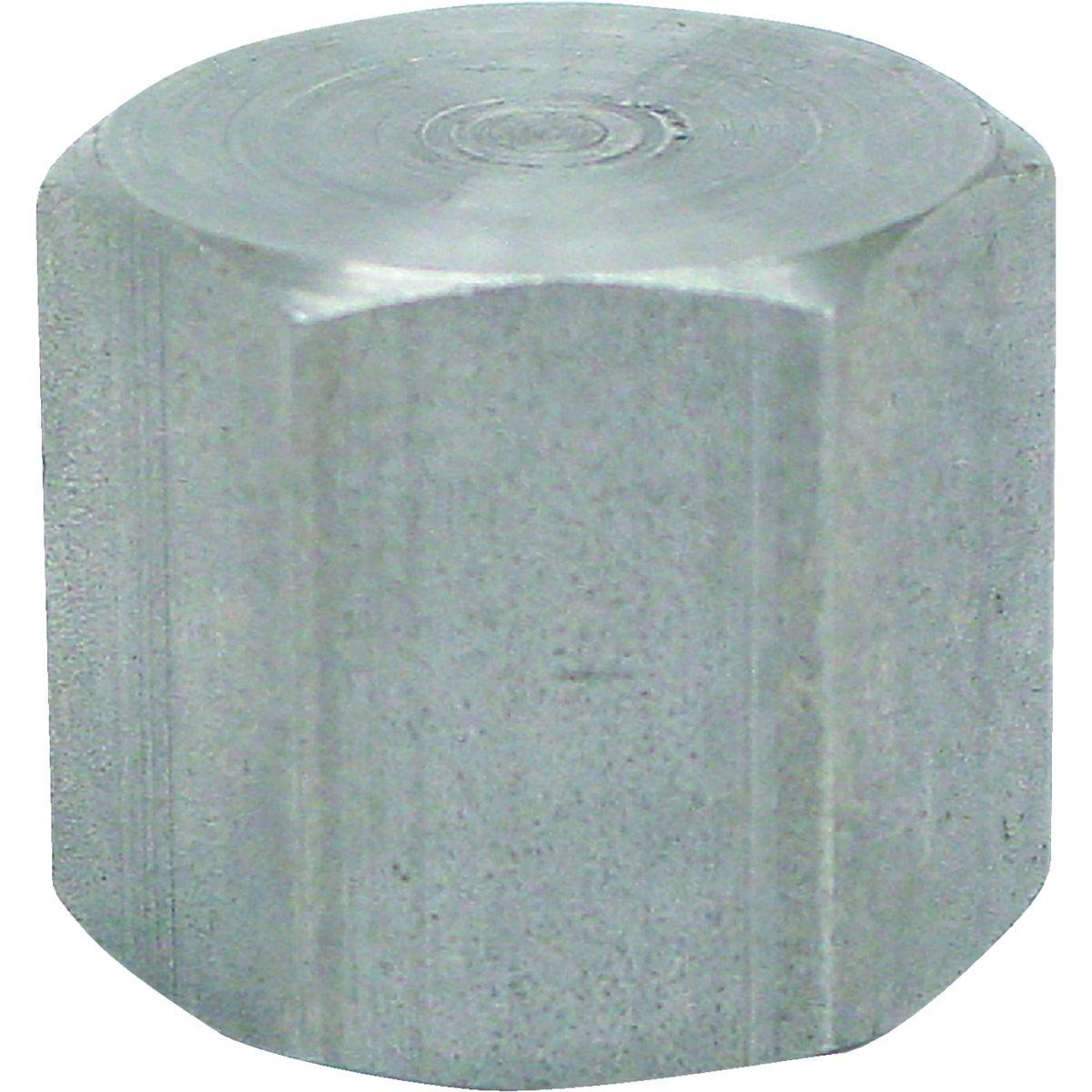

The ASC Engineered Solutions 8700132502 is a 1/8 inch malleable iron galvanized pipe cap designed to close off the end of a threaded pipe run. Manufactured from malleable iron with a hot-dip galvanized finish per ASTM A-153, this cap resists corrosion in wet and exposed installations. It meets Federal Specification WW-P-521F and conforms to ANSI B-16.3 for dimensions and ANSI B-2.1 for pipe thread standards, as well as ASTM A-197 for chemical and physical properties. Plumbers and pipefitters install this fitting in low-pressure water, gas distribution, and mechanical piping systems where a reliable, code-recognized threaded end closure is required.

This cap is suited for residential and light commercial piping applications where 1/8 inch NPT threaded pipe terminations need a permanent or semi-permanent closure. Typical install scenarios include capping unused branch outlets, dead-ending service lines during rough-in, and sealing test ports. The galvanized finish makes it appropriate for damp locations, underground installations, and any system where bare iron would be subject to oxidation. The fitting ships and is sold individually.

Key Features

• Malleable iron construction per ASTM A-197 for toughness and workability under field conditions
• Hot-dip galvanized finish per ASTM A-153 for corrosion resistance in wet or exposed environments
• Threaded to ANSI B-2.1 NPT standards for reliable, leak-resistant connections
• Dimensions conform to ANSI B-16.3 for interchangeability with standard malleable iron fittings
• Meets Federal Specification WW-P-521F and WW-P-471-B requirements
• Lightweight at 0.02 pounds, sized for 1/8 inch pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 1/8 inch NPT threaded pipe systems using malleable iron fittings conforming to ANSI B-16.3.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and IFGC codes. Depressurize and isolate the pipe system completely before threading on the cap. Apply an appropriate thread sealant or PTFE tape to the male threads before installation. Hand-tighten first, then use a pipe wrench to achieve a snug, leak-free connection without overtightening, which can crack the fitting.

Technical Specifications

• Pipe Size: 1/8 inch
• Material: Malleable Iron
• Finish: Galvanized
• Weight: 0.02 pounds
• Thread Standard: ANSI B-2.1 NPT
• Dimension Standard: ANSI B-16.3
• Galvanizing Standard: ASTM A-153
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F, WW-P-471-B
• UPC: 00690291037238
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700132502
